MAINTENANCE
Toe Alignment
Use the following procedure to check the toe alignment of the vehicle.
The recommended toe alignment is 0" to 1/8" (0-3 mm).
WARNING! Severe injury or death can result from improper toe alignment and
adjustment. Do not attempt to adjust tie rod alignment. All tie rod adjustments
should be performed by an authorized Polaris dealer.
1. Position the vehicle on a
level surface.
2. Place the handlebars in a
straight-ahead position.

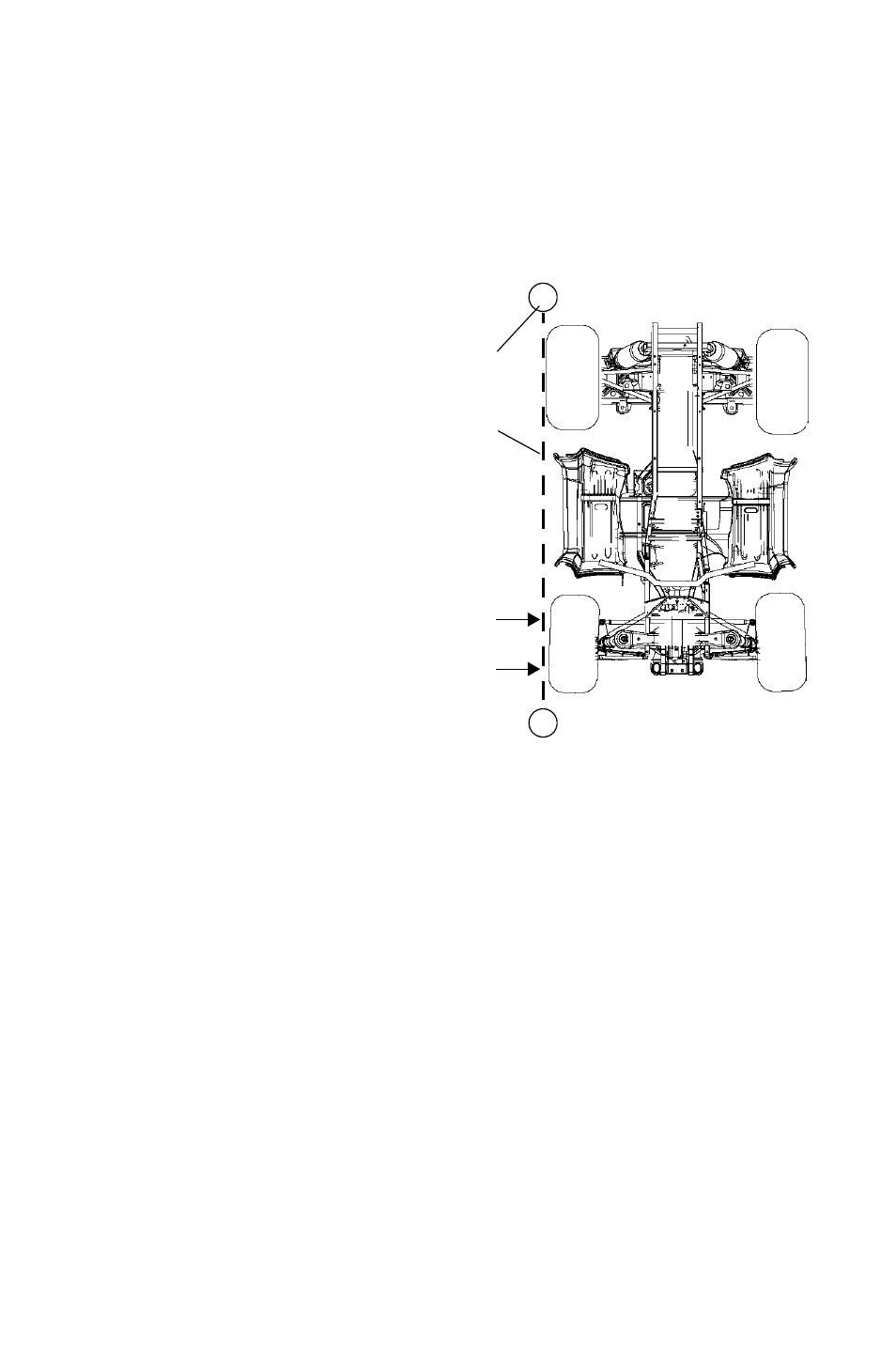

3. Tie a length of string
between two stands as
shown in the illustration.
Position the stands so
that the string is flush
with the side of the rear
tire. If available, you
may use a long straight-
edge instead of string.
4. Measure the distance
from the string to the
rim at the front (1) and
rear (2) of the front rim.
The rear measurement
should be 1.5 mm more than the front measurement on each side of
the vehicle to obtain the recommended 0" to 1/8" (0-3 mm) toe out
alignment.
5. Repeat the measurement procedure on the other side of the vehicle.
6. If you discover improper alignment, see your Polaris dealer for ser-
vice.
Steering Assembly
The steering assembly of the ATV should be checked periodically for
loose nuts and bolts. If loose nuts and bolts are found, see your Polaris
dealer for service before operating the vehicle.
String
Stand
2
1
