3.0 Appliance Operation

8

3.3

Domestic Hot Water Mode (Fig. 4)

1. Priority is given to the domestic hot water supply. A

demand at a tap or shower will override any central

heating requirement.

2. The flow of water will operate the DHW flow switch

which requests the 3 way valve to change position. This

will allow the pump to circulate the primary water

through the DHW plate heat exchanger and take the

stored water to give instant hot water.

3. The burner will light automatically and the

temperature of the domestic hot water is controlled by

the temperature sensor.

4. When the domestic hot water demand ceases the

burner will extinguish and the diverter valve will remain

in the domestic hot water mode, unless there is a

demand for central heating.

5. If there is no other demand the pre-heat function will

operate if switched on (see Section 3.2)

IMPORTANT: When the selector switch is in the

‘0’ (Off) position the electrical supply to the boiler

is isolated. The boiler will not operate and the

integral timer (if fitted) will require resetting once

the selector switch is set to either Position (i) or

Position (ii).

3.4

Frost Protection Mode

1. The frost protection mode is integral to the appliance

and functions only with the selector switch (see Section

2.1) in the domestic hot water and central heating

position. If the system temperature falls below 5° C then

the boiler will fire on its minimum setting until a flow

temperature of 30° C is reached. Further protection can

be incorporated by using a system frost thermostat.

3.5

Pump Protection

1. With the selector switch (see Section 2.1) in either the

central heating or central heating and hot water position

the pump will automatically operate for 1 minute in

every 24 hours to prevent sticking.

27

19

16

15

14

13

12

10

9

11

8

17

21

23

20

22

19

26

5

6

2

3

4

1

25

24

18

7

28

1

Primary Heat Exchanger

2

Burner

3

Ignition Electrode

4

Flame Sensing Electrode

5

Gas Valve

6

Pump

7

Automatic Air Vent

8

Plate Heat Exchanger

9

Flow Sensor with Filter

10

Pressure Relief Valve

11

Boiler Drain Point

12

Heating Return

13

Cold Water Inlet On/Off Valve and Filter

14

Gas Inlet

15

Domestic Hot Water Outlet

16

Heating Flow

17

Pressure Gauge

18

Hydraulic Pressure Sensor Microswitch

19

Automatic By-Pass

20

Hydraulic Pressure Sensor

21

Diverter Valve Assembly

22

Domestic Hot Water Flow Priority Assembly

23

Domestic Hot Water Flow Priority Microswitch

24

Safety Thermostat

25

Central Heating Temperature Sensor

26

Expansion Vessel & Pre-Heat Store

27

Domestic Hot Water Temperature Sensor

28

Secondary Heat Exchanger

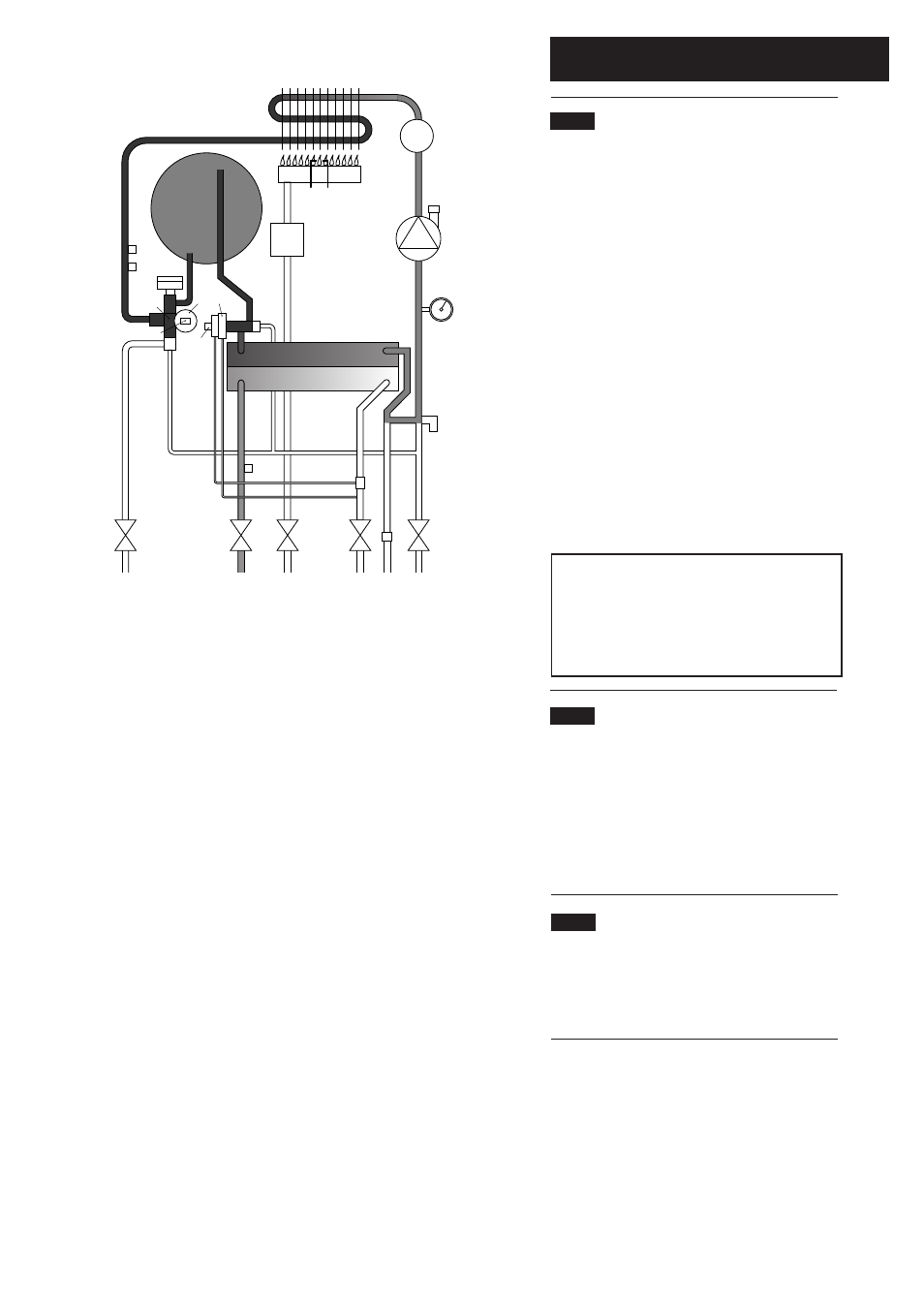

Key

Fig. 4

Domestic Hot Water Mode
