12.0

Changing Components

31

IMPORTANT: When changing components ensure
that both the gas and electrical supplies to the
boiler are isolated before any work is started.
When the new component has been fitted turn the
selector switch fully anticlockwise against the spring
pressure to position R and hold for 2 seconds to
reset the boiler before recommissioning.

See Section 11.1 “Annual Servicing” for removal of case

panel, door etc.

12.1

Fan (Figs. 48 & 49)

1. Note the positions of the two sensing tubes on the

fan spigot (105 model. Only one tube on 80 model) and

three wires on the fan motor and remove them.

2. Slacken the screws on the fan spigot outlet pipe

clamps. Ease the clamps inwards over the pipe (105).

3. On 80 models, undo the securing screw at the left

hand end of the pipe.

4. Draw the outlet pipe away from the boiler.

5. Remove the four screws securing the combustion

box door and remove the door.

6. Ease the front edge of the left hand baffle upwards,

disengaging the spring clip. Disengage the tab on the

baffle from the slot in the fan hood.

7. Undo the screws securing the fan hood to the

appliance back panel, and draw the fan and hood

assembly forwards.

8. Remove the screws and spring washers securing the

fan to the hood.

9. Fit the new fan to the hood using the screws and

spring washers previously removed.

10. Reassemble in reverse order of dismantling.

12.2

Pressure Switch (Fig. 47)

1. Remove the fan as described in section 12.1.

2. Note the positions of the two sensing tubes and three

wires and remove them.

3. Remove the two screws holding the pressure switch

to the bracket on the combustion box top panel.

4. Fit the new pressure switch and reassemble all

components in reverse order of dismantling.

Pressure
Switch

Sensing
Tubes

Pressure

Switch Wires

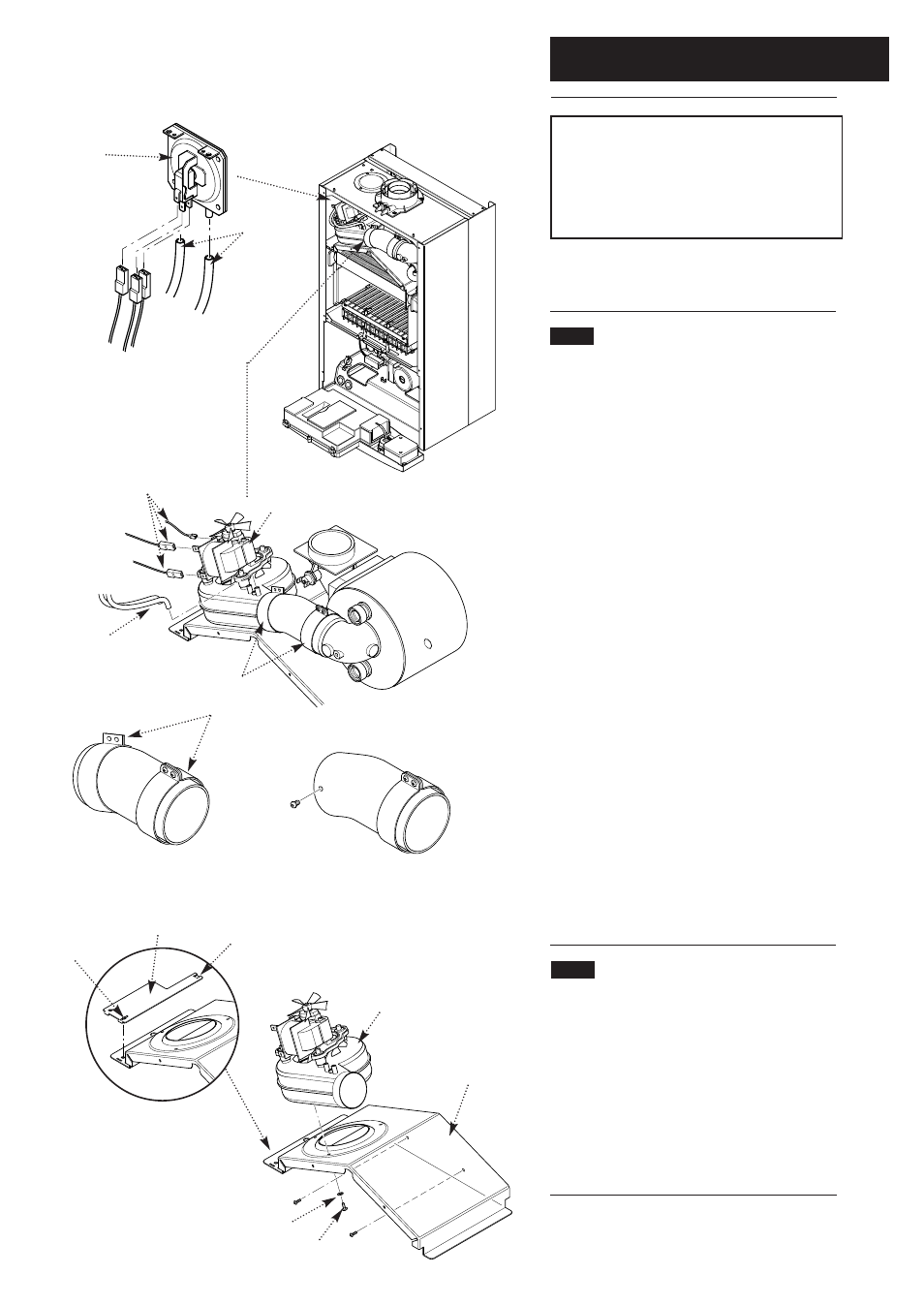

Fig. 47

b

br

bk

H

+’ve

L

-’ve

Fan Hood

Spring Washer

Securing Screw

Fan Wires

Fan

Sensing

Tubes

Ease Fan Spigot Outlet

Pipe Clamps Inwards

Fig. 48

Fan Spigot Outlet Pipe

Spring Clip

Baffle

Tab

Fan

Fig. 49

(Instant 105 HE

model shown)

1 0 5 H E

8 0 H E
