Powering On The Printer

Legend:

1)

Power Switch

2)

Strain Relief

3)

Door Latch

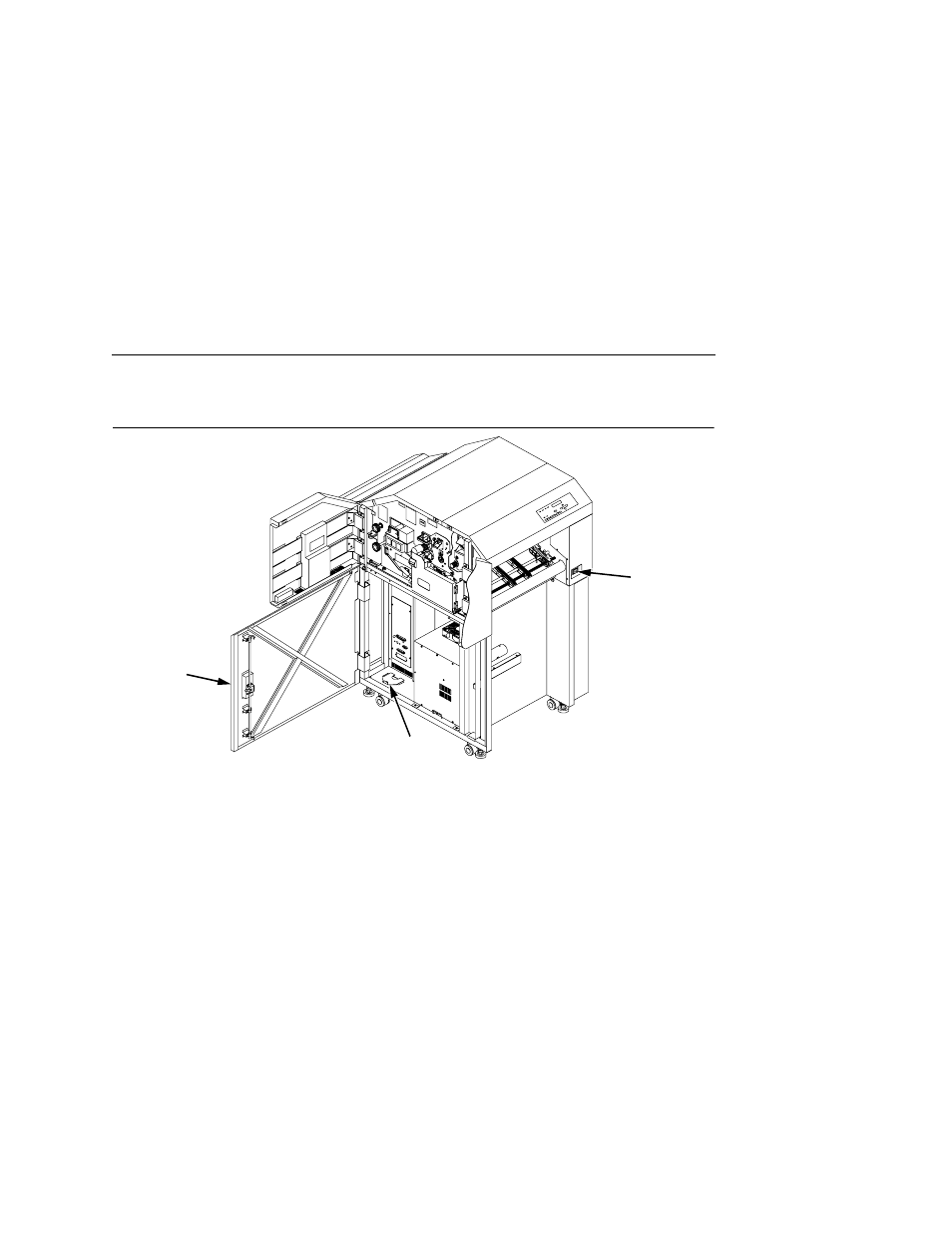

Figure 5: Power Switch

CAUTION

The printer must be connected to the proper power source:
220-240 VAC and 50-60 Hz, as shown on the rear panel label.
Using an incorrect power source may damage the printer.

1.

Open the cabinet door by turning the key and flipping up the
latch.

2.

Route all cables through the hole in the bottom of the cabinet
and secure them with the strain relief.

3.

Make sure the printer is plugged into the appropriate power
source, the interface cables are connected, and the host
computer is on.

4.

Close the cabinet door and flip down the latch.
