Cleaning The Chargers
153
Cleaning The Chargers
1.
Turn the power switch OFF.
2.
Open the printer upper doors. (See page 109.)
Main Charger
CAUTION
Handle the charger carefully to avoid damaging or breaking
the charger wires.
3.
Loosen the thumbscrew and remove the main charger by
pulling it toward you.

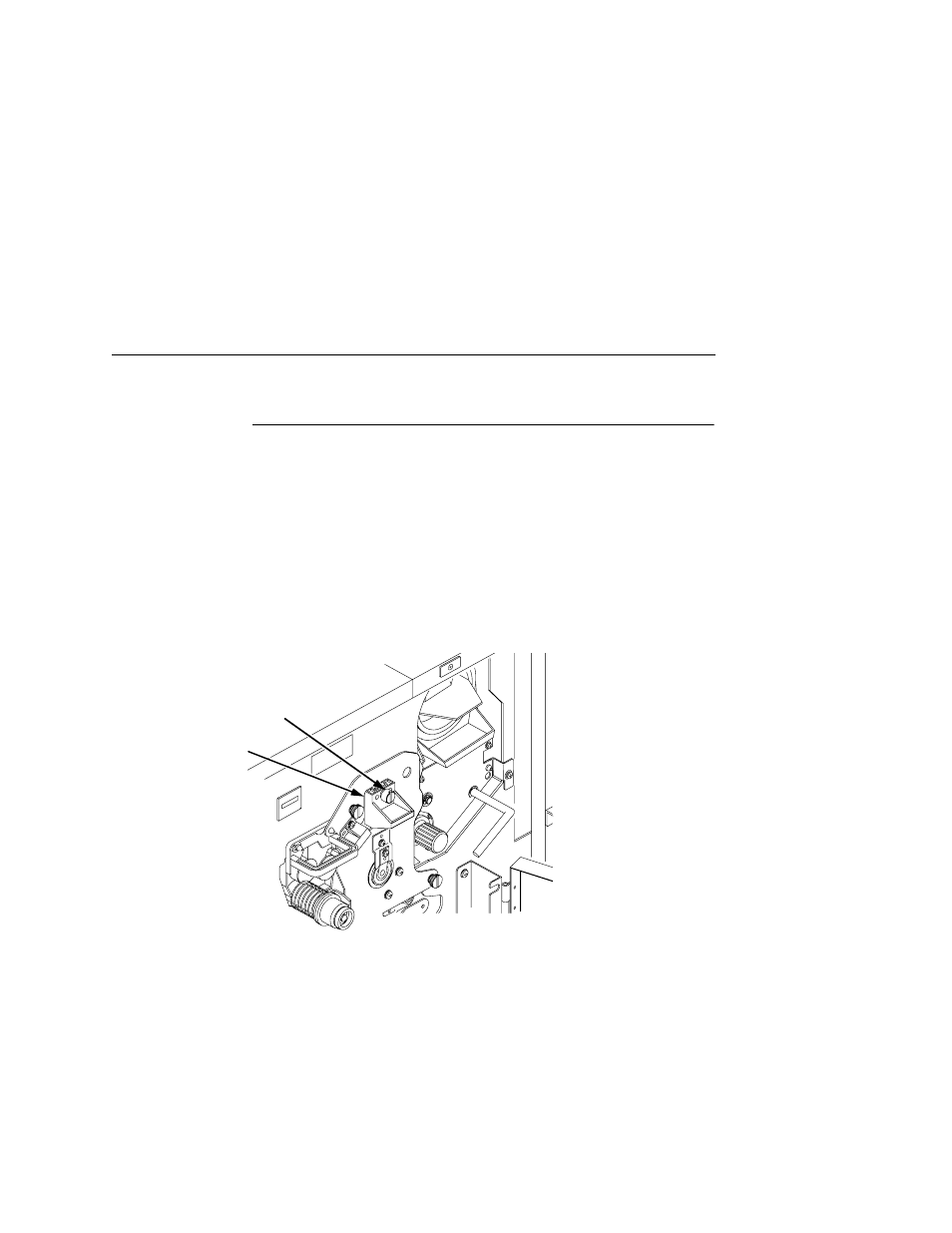

Legend:
1)
Main Charger
2)
Thumbscrew
4.
Place the main charger on a flat, clean work surface.
2
1
