3 • Configuring the Matrix Switch for operation Model 6511RC User Manual
68 Using a browser to complete Model 6511RC configuration
Example 3
Map E1 Port 7 received, timeslots 1-32 to H.110 Port 4 timeslots 1-32.
Map E1 Port 7 transmitted, timeslots 1-32 from H.110 Port 4 timeslots 33-64.
Solution:
1. Under E1 Number, select port7(7) from the drop-down menu (see figure 52 ).
2. Under E1 Slots, enter 1-32 in the text box.
3. For toH110(5), under H.110 Number, select port4(4) from the drop-down menu.
4. For toH110(5), under H.110 slots, enter 1-32 in the text box.
5. For fromH110(5), under H.110 Number, select port4(4) from the drop-down menu.
6. For fromH110(5), under H.110 slots, enter 33-64 in the text box.

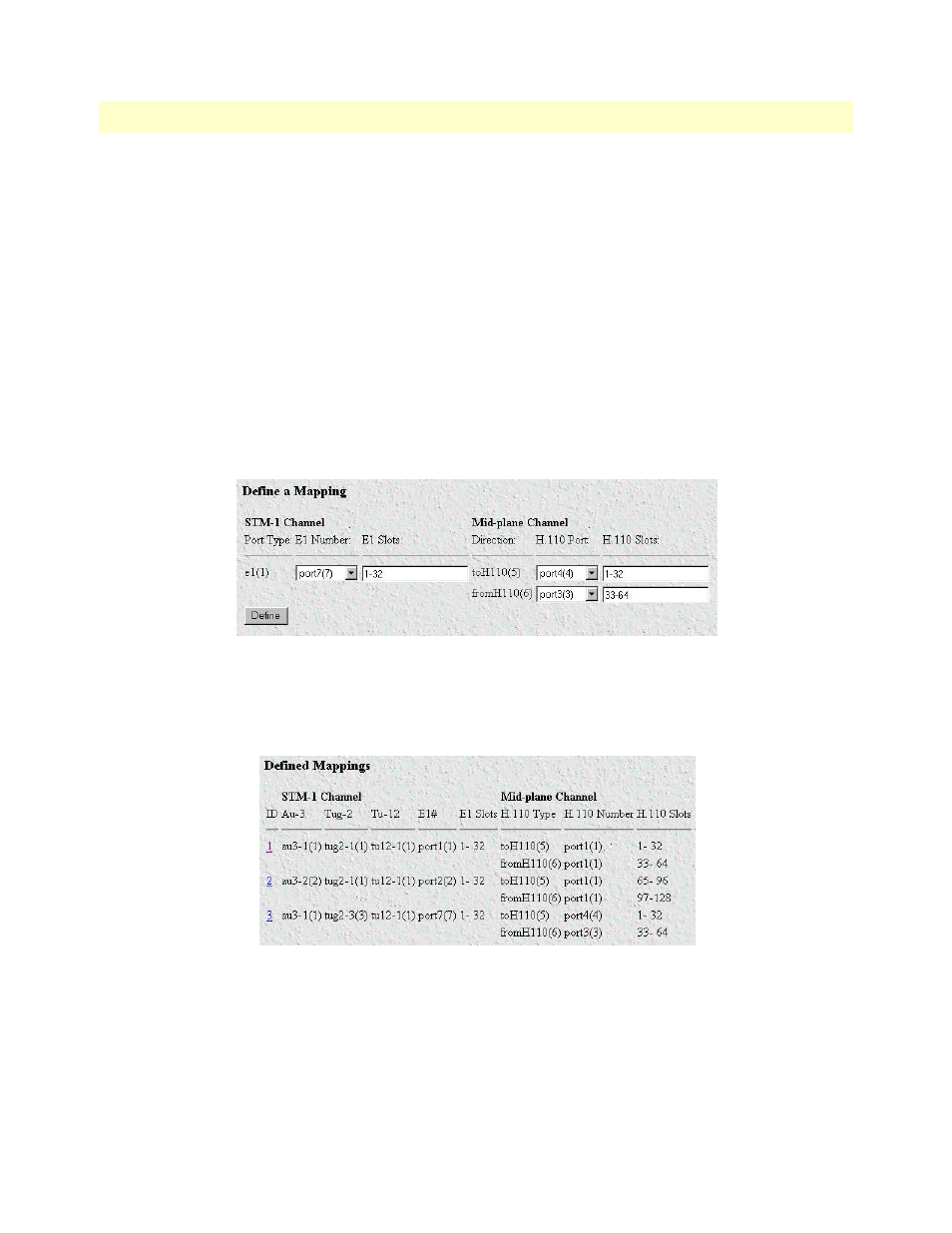

Figure 52. Define a Mapping table for example 3
7. Click the Define button.
8. Verify your new mapping appears in the Defined Mappings table (see figure 53 ).
Figure 53. Defined Mappings table for example 3
9. Examine the new mapping to verify that it was entered and recorded correctly.
You have completed the configuration for example 3.
