3 • Configuring the Matrix Switch for operation Model 6511RC User Manual
44 Initial configuration through the RS-232 control port
Setting up the HyperTerminal (or similar program) session
Do the following:
1. At your PC, find the file HYPERTRM.EXE. Open a HyperTerminal session by double-clicking on the
file name.

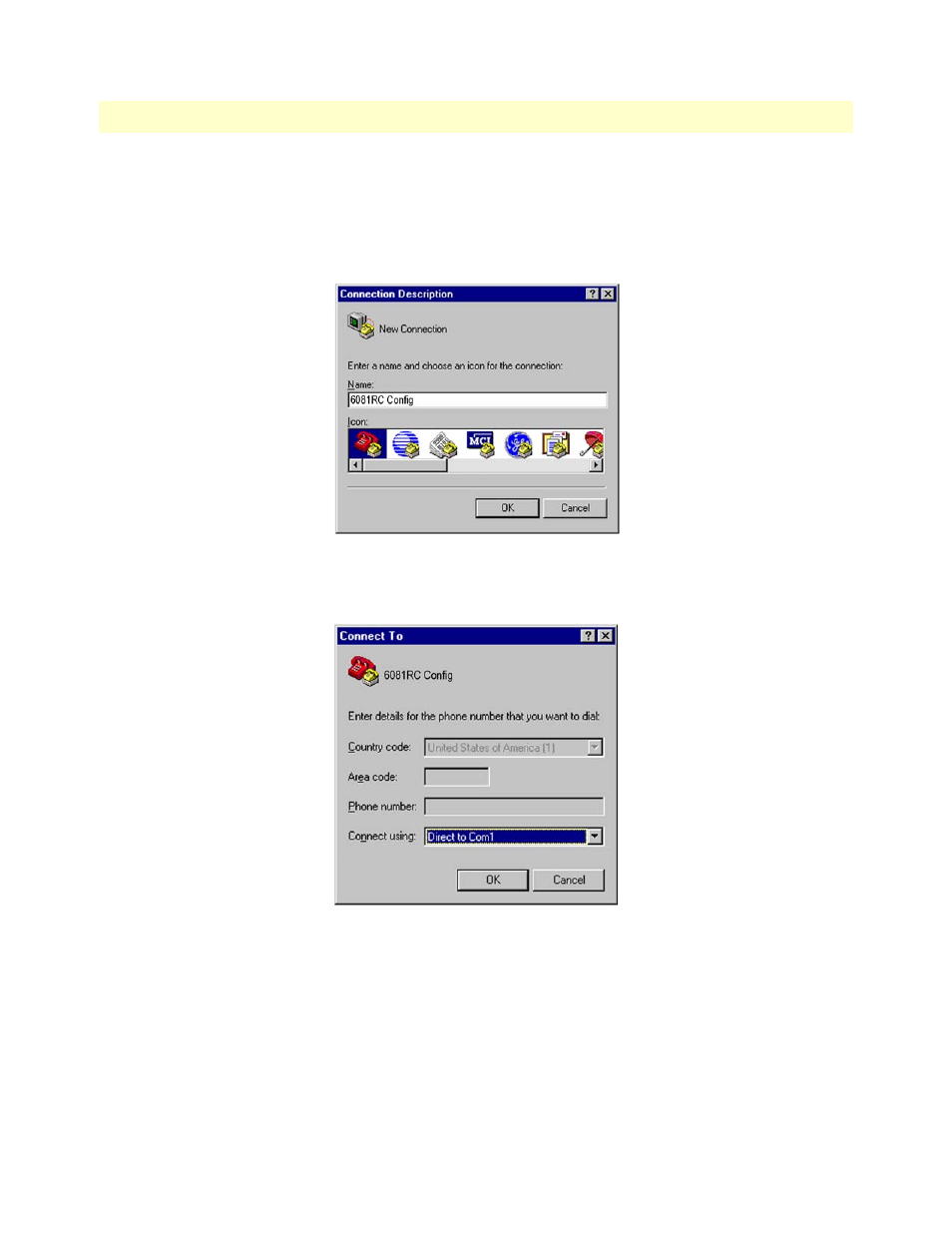

Figure 21. Connection Description window
2. Type a connection name (e.g., 6511RC Config), select an icon, then click OK ( figure 22 ).
Figure 22. Connect To window
3. On the Connect To window ( figure 22 ), set Connect using: to one of the options named Direct to ComX
(where the “X” refers to the number identifying the RS-232 serial port on the PC). In the following proce-
dure, Com1 will be the used as the port identifier.
4. Click OK .
5. The COM1 Properties window displays.
