Hardware overview 17
Model 6511RC User Manual 1 • Introduction

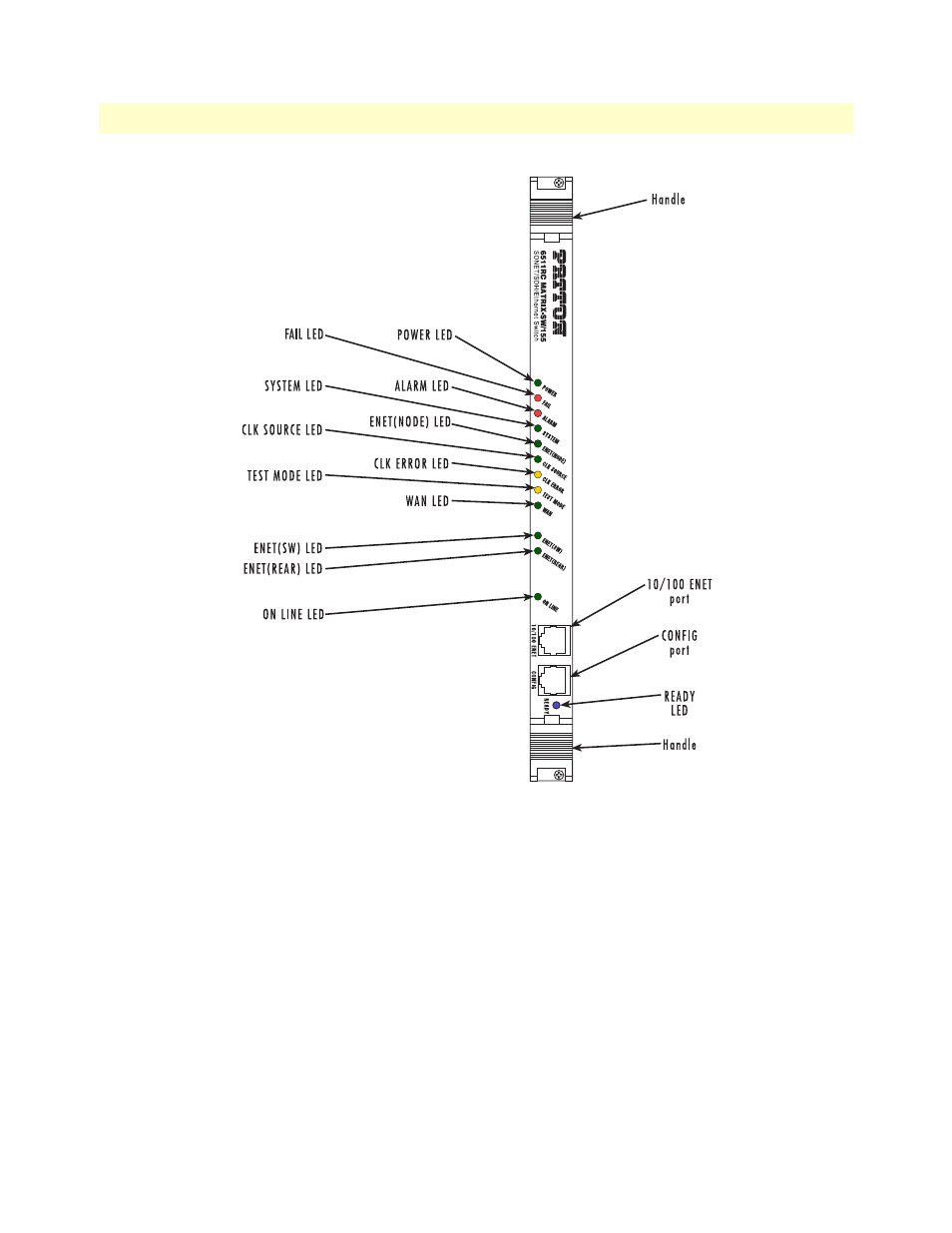

Figure 5. Model 6511RC front panel LEDs and ports
The front panel of the processor blade presents LED status indicators, an RS-232 configuration port and a
10/100 Ethernet management port (see
figure 5 ). The rear entry interface blade (see figure 6 on page 18) pre-
sents LEDs indicating alarm and WAN status, physical connectors for the STM-1 port, as well as two
10/100/1000 Ethernet RJ-45 connectors with embedded link and activity status indicator LEDs.
