Using a browser to complete Model 6511RC configuration
49
Model 6511RC User Manual
3 • Configuring the Matrix Switch for operation
Home page overview
The
HOME
window is divided into two panes: the
Configuration Menu
pane and the
Configuration/Informa-
tion
pane (see
). The
Configuration Menu
contains the links to the various Model 6511RC sub-
systems, while in the
Configuration/Information
pane, you can view status and other information or make
changes to the system configuration. Unlike the
Configuration Menu
pane, which appears the same no matter
which subsystem page you may select, the
Configuration/Information
pane contents will change as you move
from one subsystem page to another.

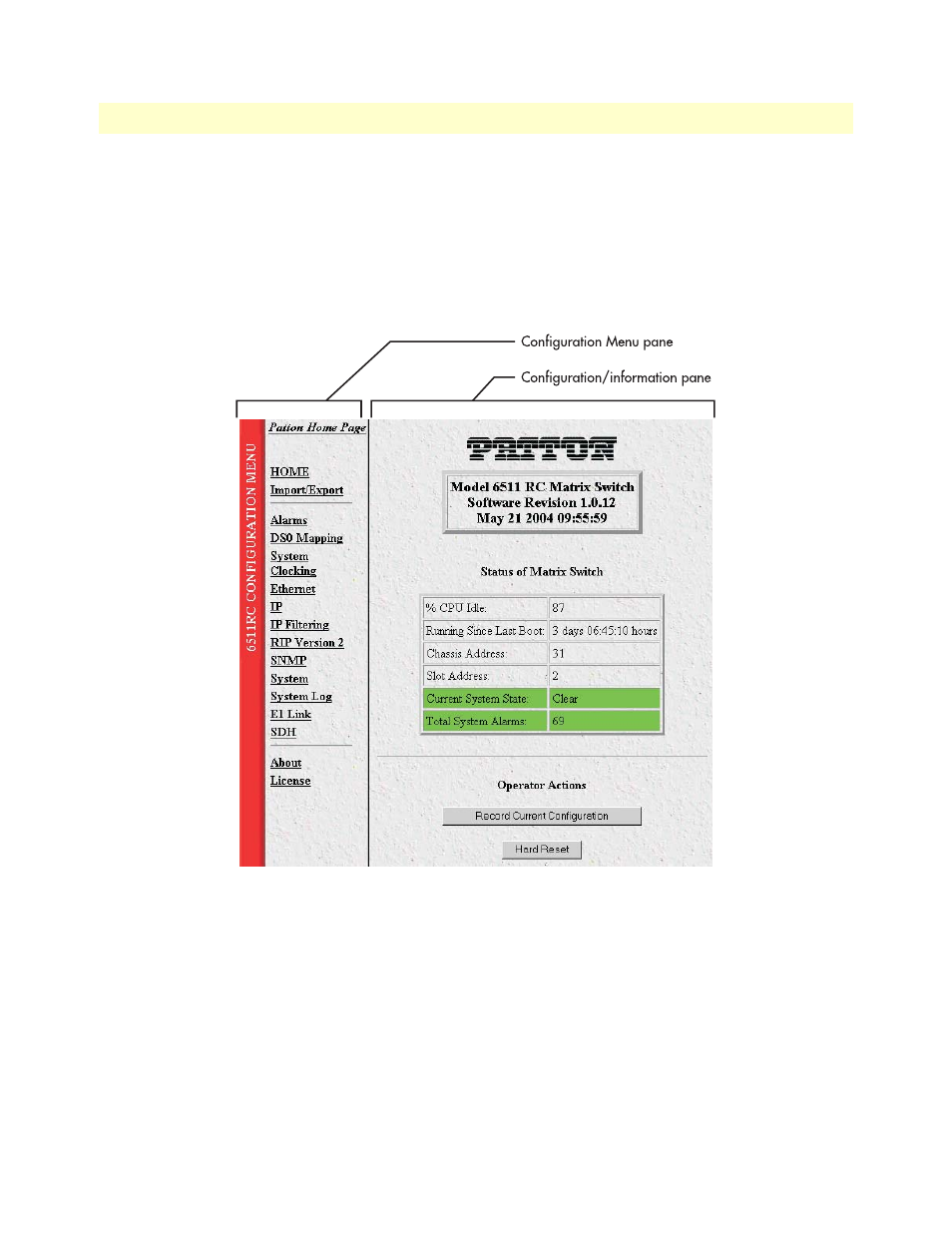

Figure 28. HOME page window panes
