3 • Configuring the Matrix Switch for operation Model 6511RC User Manual
66 Using a browser to complete Model 6511RC configuration
Example 1
Map E1 Port 1 received, timeslots 1-32 to H.110 Port 1 timeslots 1-32.
Map E1 Port 1 transmitted, timeslots 1-32 from H.110 Port 1 timeslots 33-64.
Solution:
1. Under E1 Number, select port1(1) from the drop-down menu (see figure 48 ).
2. Under E1 Slots, enter 1-32 in the text box.
3. For toH110(5), under H.110 Number, select port1(1) from the drop-down menu.
4. For toH110(5), under H.110 slots, enter 1-32 in the text box.
5. For fromH110(5), under H.110 Number, select port1(1) from the drop-down menu.
6. For fromH110(5), under H.110 slots, enter 33-64 in the text box.

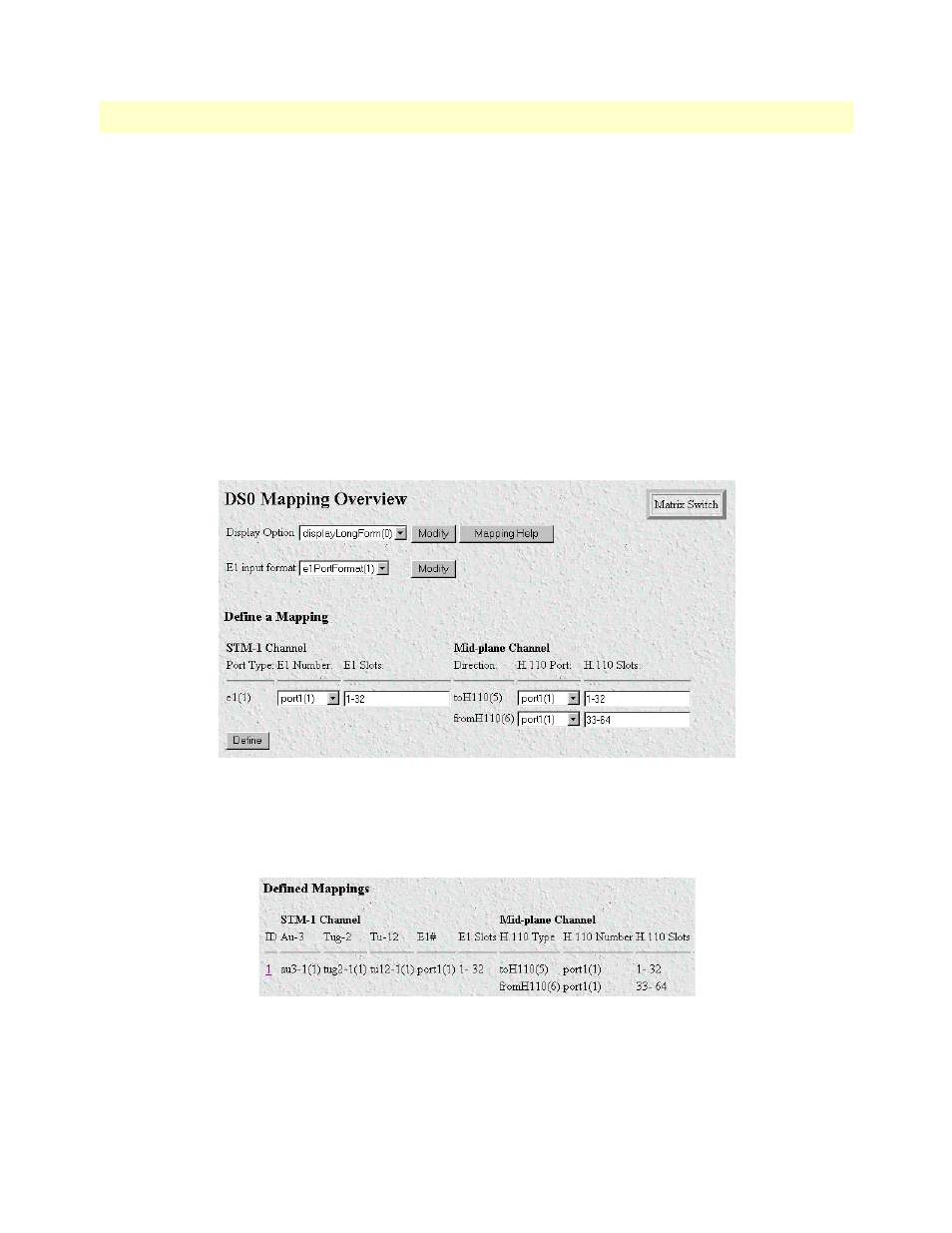

Figure 48. Define a mapping table for Example 1
7. Click the Define button.
8. Verify your new mapping appears in the Defined Mappings table (see figure 49 ).
Figure 49. Defined Mappings table for example 1
9. Examine the new mapping to verify that it was entered and recorded correctly.
You have completed the DS0 mapping procedure for example 1.
