8
Si
mp
le
S
etu
p
Po
s
it
io
n
in
g
RQ
TX00
99
Notes on speaker use
≥Use only supplied speakers
Using other speakers can damage the unit, and sound quality will be
negatively affected.
≥ You can damage your speakers and shorten their useful life if you play
sound at high levels over extended periods.
≥ Reduce the volume in the following cases to avoid damage:
– When playing distorted sound.
– When the speakers are reverberating due to a record player, noise
from FM broadcasts, or continuous signals from an oscillator, test
disc, or electronic instrument.
– When adjusting the sound quality.
– When turning the unit on or off.
If irregular colouring occurs on your TV
The center speaker is designed to be used close to a TV, but the picture
may be affected with some TVs and setup combinations.
If this occurs, turn the TV off for about 30 minutes.
The demagnetising function of the TV should correct the problem. If it
persists, move the speakers further away from the TV.
Caution
≥ Do not touch the front netted area of the speakers. Hold by the sides.
e.g. Center speaker
≥ Do not stand on the base.
Be cautious when children
are near.

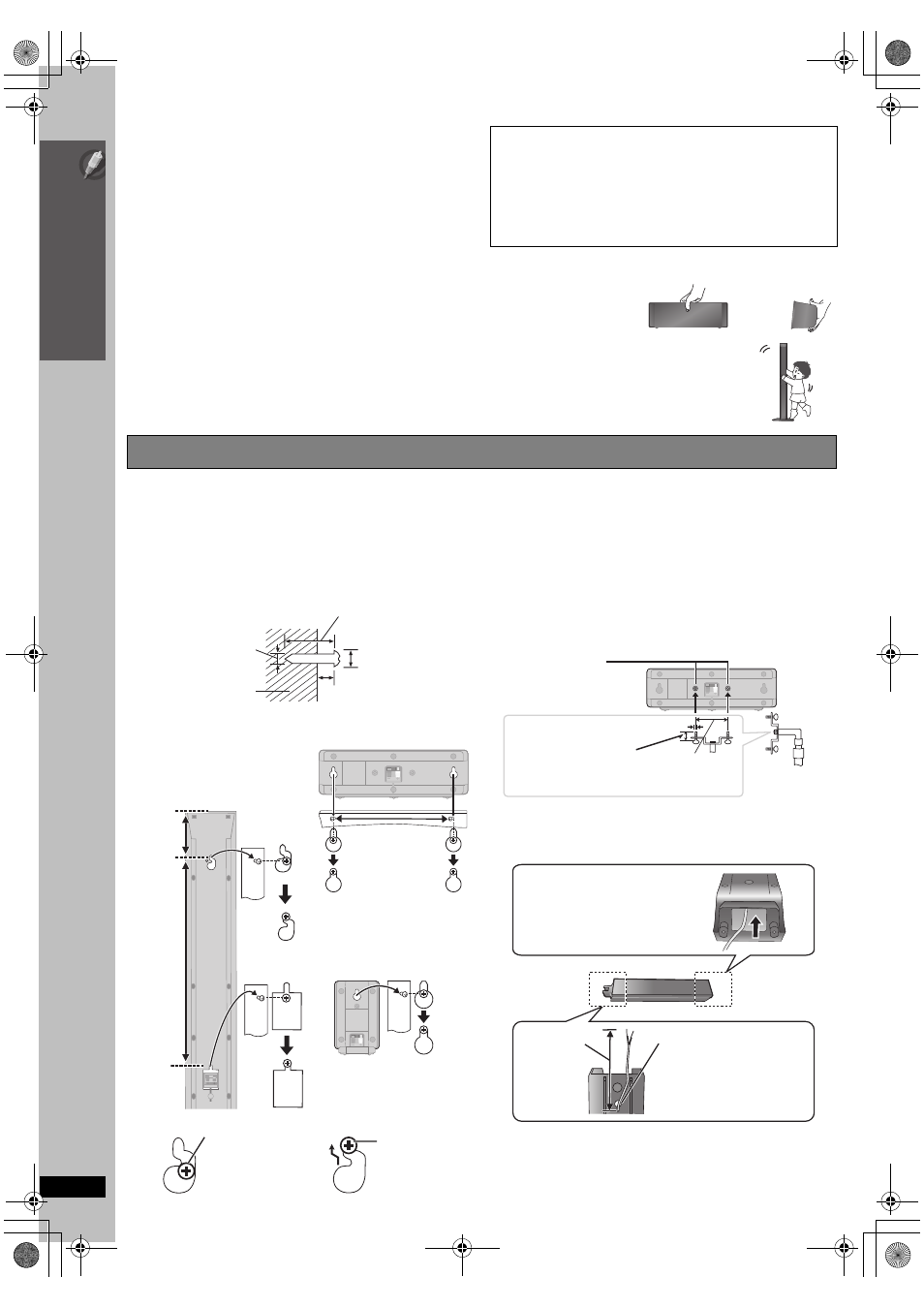

∫ Attaching to a wall
You can attach all of the speakers (except subwoofer) to a wall.
≥ The wall or pillar on which the speakers are to be attached
should be capable of supporting 10 kg per screw. Consult a
qualified building contractor when attaching the speakers to a
wall. Improper attachment may result in damage to the wall and
speakers.
1 Drive a screw (not included) into the wall.
2 Fit the speaker securely onto the screw(s) with the hole(s).
∫ Fitting speaker stands
(not included)
[PT565] [PT865] Center speaker only
[PT560] Center and surround speakers only
Ensure the stands meet these conditions before purchasing them.
Note the diameter and length of the screws and the distance
between screws as shown in the diagram.
≥ The stands must be able to support over 10 kg.
≥ The stands must be stable even if the speakers are in a high
position.
e.g. Center speaker
∫ Reattaching the speaker cable
Caution
≥ The main unit and supplied speakers are to be used only as
indicated in this setup. Failure to do so may lead to damage to
the amplifier and/or the speakers, and may result in the risk of
fire. Consult a qualified service person if damage has occurred
or if you experience a sudden change in performance.
≥ Do not attempt to attach these speakers to walls using
methods other than those described in this manual.
DO
DO
NOT
DO
NOT
e.g. Front speaker
Speaker installation options
‰7.0 mm to 9.4 mm
4.0 mm to 6.0 mm Wall or pillar
‰4.0 mm
At least 30 mm
Center speaker
190 mm
In this position,
the speaker will
likely fall if moved
to the left or right. Move the speaker
so that the screw
is in this position. e.g.
DO DO
NOT
[PT565] [PT865] Front and surround
speakers
[PT560] Front speakers
Attach to a wall without the base and
the stand
384 mm
116 mm
[PT560] Surround speaker
Speaker stand
(not included)
Plate thickness plus
7.0 mm to 10 mm
5.0 mm, pitch 0.8 mm
Metal screw holes
For attaching to
speaker stands
60 mm
Insert the cable from
the bottom.
Pull out the cable
through the hole. Leave about
90 mm
