SETTING PROCEDURES
The following setting procedures are described on the assumption that this model is used in combination
with the WJ-SX550B Matrix Switcher and WV-CU550B System Controller. In case a controller other than
the WV-CU550B is used, refer to the table on page 10.
■ Menu Display
● Setup Menu Display
WV-CU550B
1. Select the camera number you want to set up and a monitor to
display SET UP MENU.
2. Display the D4 menu on the LCD by pressing the appropriate cur-
sor buttons.
3. Press the F1 button.
SET UP MENU appears on the monitor screen.
4. To close SET UP MENU, press the F4 button.
WV-CU360
Press the CAM SETUP key for 2 seconds or more to open the
SETUP menu.
WV-CU161
Press the CAMERA SETUP key for 2 seconds or more to open the
SETUP menu.
WV-RM70
1. Turn the MODE SELECTION switch to NORMAL or ALARM OFF.
2. Press the PROG switch for 2 seconds or more to open the
Program Menu.
3. Move the cursor to Camera Set Up Menu, and press the SET
switch to open the SETUP MENU.
● Submenu Display
The items marked O can be selected/changed on the submenu.
• Move the cursor to an item with the
O mark and press the CAM
(SET) key. The submenu appears.

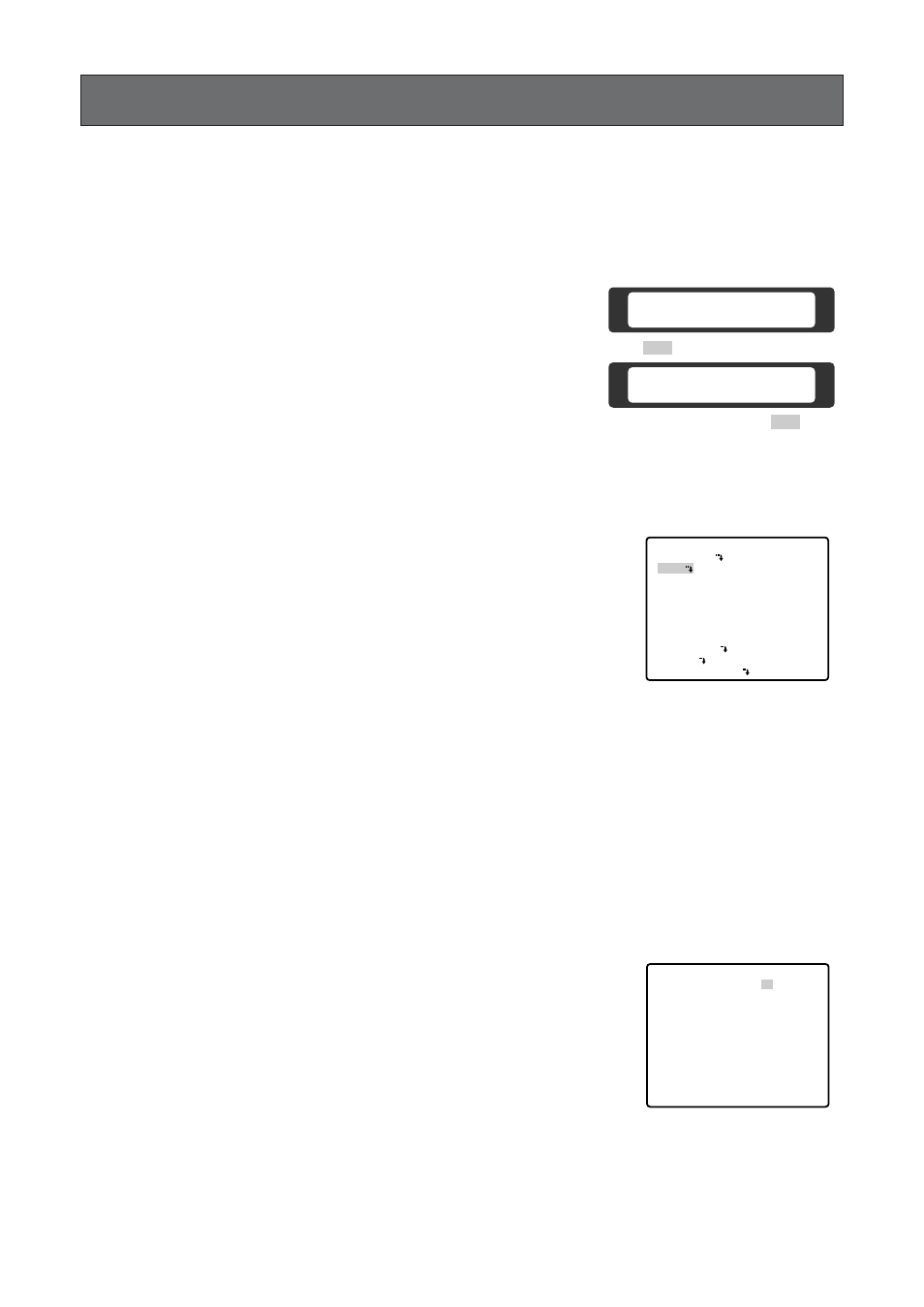

D4 menu
F 1
F 1 F 2 F 3 F 4
Camera Set Up Menu
Res A.Res Exit
F 2 F 3 F 4
Camera Set Up Menu
On Exit
** RS485 SET UP **
UNIT NUMBER
SUB ADDRESS
BAUD RATE
DATA BIT
PARITY CHECK
STOP BIT
XON/XOFF
WAIT TIME
ALARM DATA
DELAY TIME
RET
1
-----
19200
8
NONE
1
NOT USE
OFF
AUTO2
---
Submenu
(for RS485 setup)
** SET UP MENU **
PRESET 1
MAP
HOME POSITION
SELF RETURN
AUTO MODE
AUTO PAN KEY
DIGITAL FLIP
LOCAL/REMOTE
SPECIAL1
CAMERA
RS485 SET UP
OFF
OFF
OFF
AUTO PAN
ON
LOCAL
Setup menu
