10.4.1.4. Procedure for screw lock

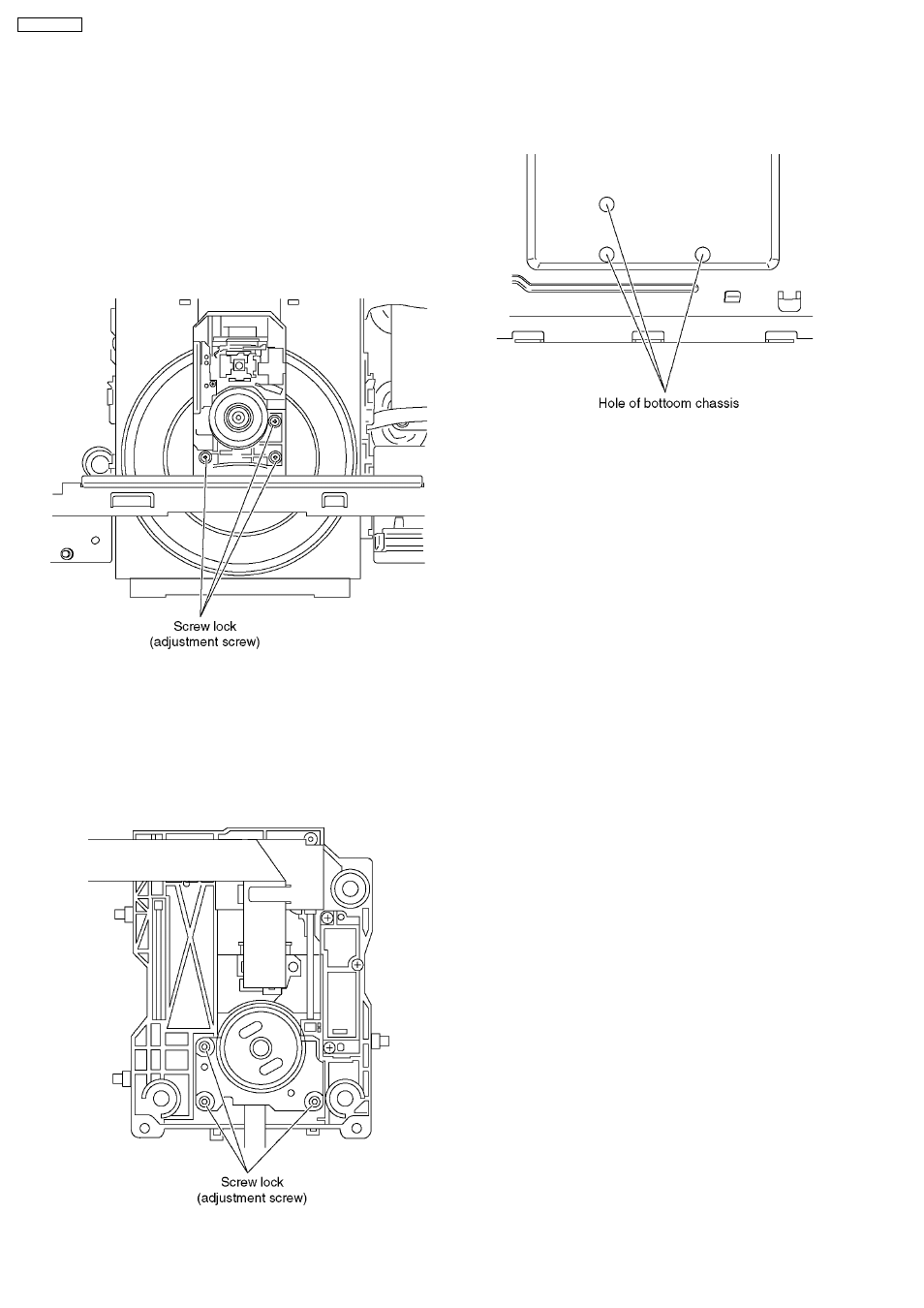

Please perform a screw lock in which by the side of the tip or
head of an adjustment screw.
adjustment screw>
1. After adjustment, remove top panel.
2. After pulling out a tray to the position which does not
become obstructive,remove clamper plate.
3. Fix adjustment screw with screw lock.
4. After fixing, reassemble clamper plate and top panel.
adjustment screw>
1. After adjustment, remove top panel, front panel, rear
panel and mechanism unit in this sequence.
2. Lay the mechanism unit upside down, and fix
adjustment scwer with screw lock.
3. After fixing, reassemble mechanism unit, rear panel,
front panel and top panel.
It is also possible to perform screw lock on the head of an
adjustment screw after an adjustment end using an injector etc.
from the hole at the bottom of a product (hole of bottom
chassis), without decomposing.
