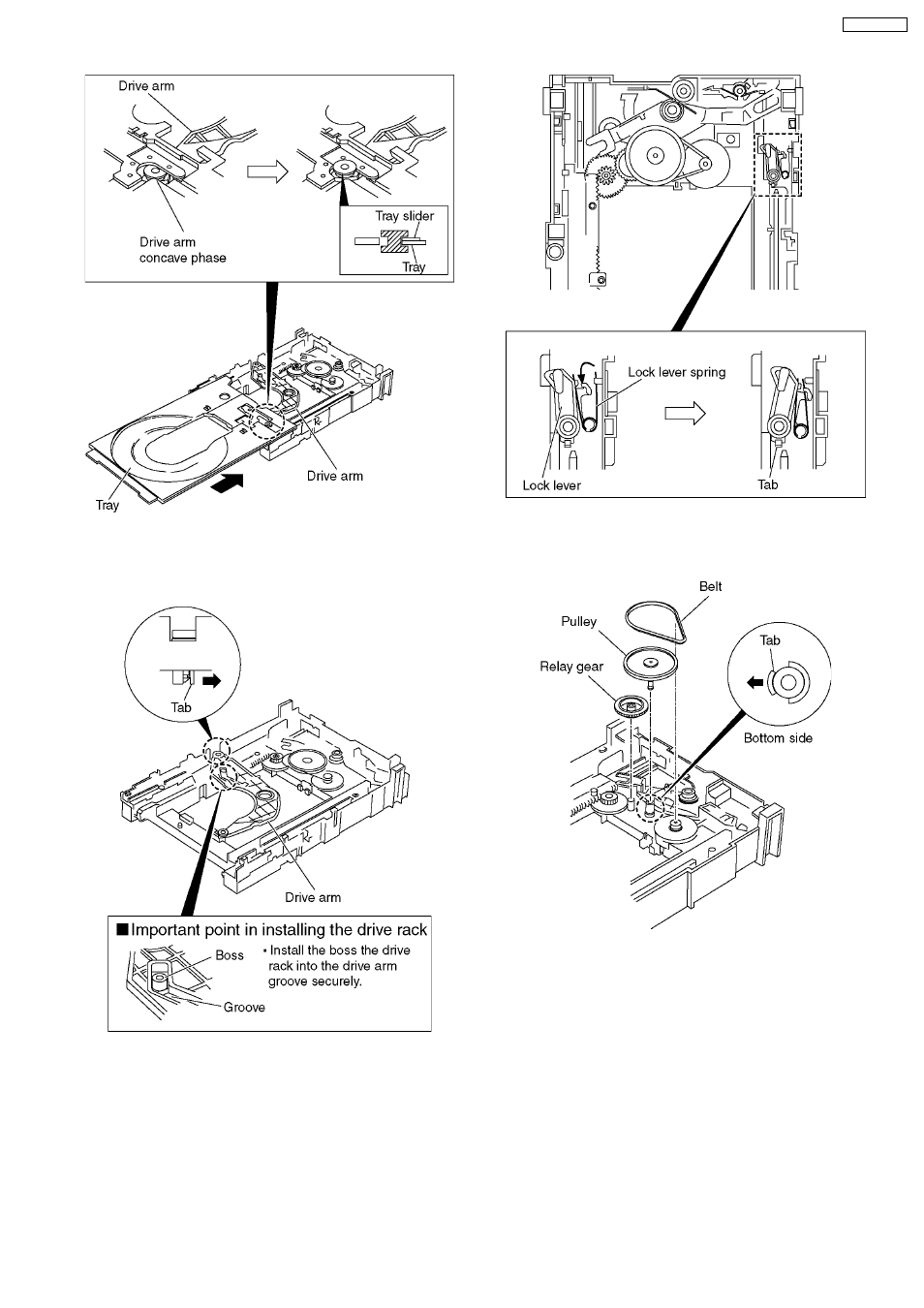

7.4. Loading section

1. Spread the tabs at the both sides and push out the drive

arm shaft.

2. Hook the lock lever spring on the lock lever projection part

temporarily.

3. Unlock the tab and remove the lock lever.

4. Remove the belt.
5. Unlock the tab and remove the pulley.
6. Remove the relay gear.

7. Turn the change lever in the arrow direction till it stops.
8. Hook the change lever spring on the change lever project

part temporarily.

13

DVD-K29GCS
