7.6.2. Procedure for Disassembling the
Optical Pickup Unit

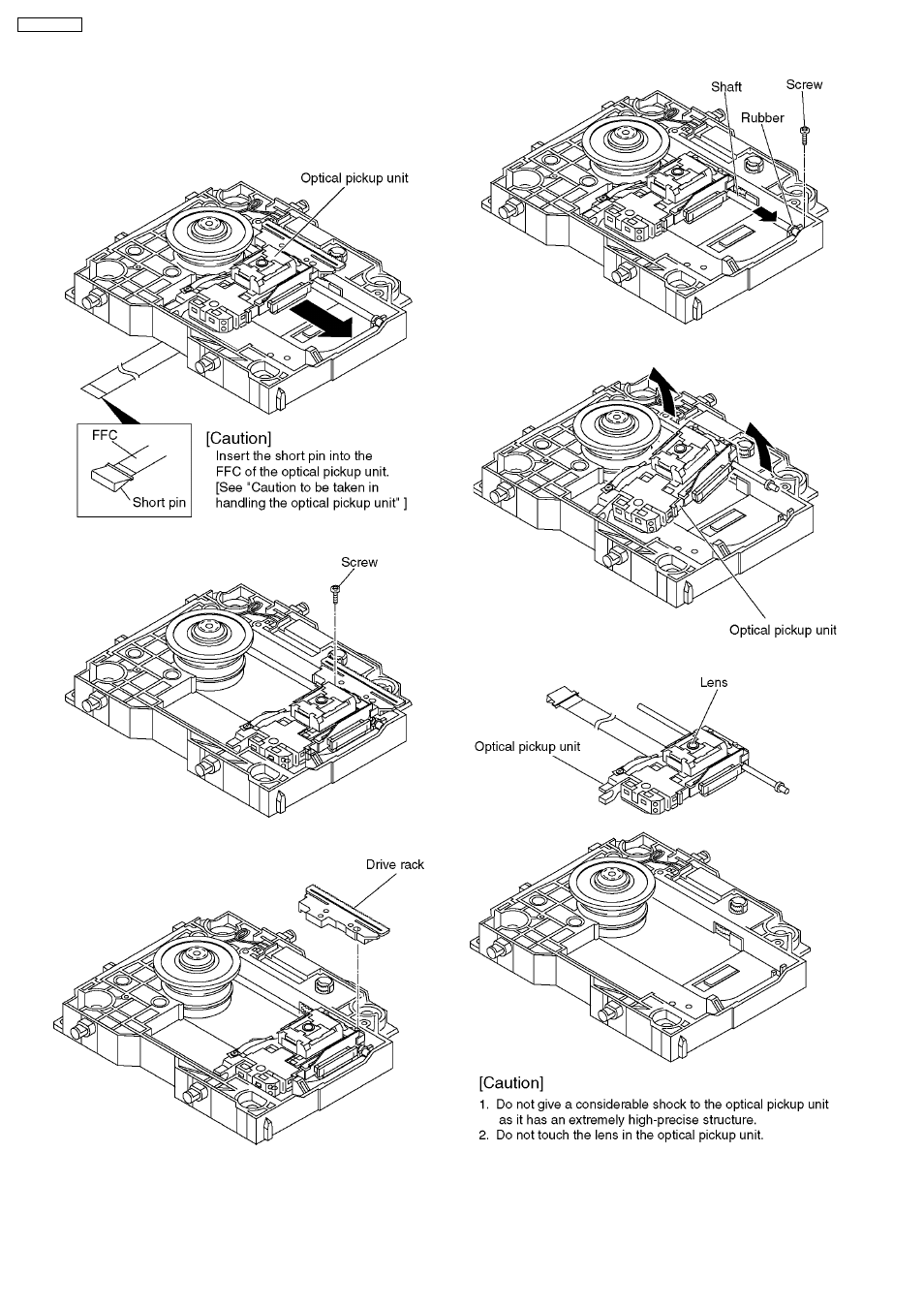

1. Move the optical pickup unit in the arrow direction till it
stops.
2. Unscrew the screws.
3. Remove the drive rack.
4. Unscrew the screw
5. Slide the shaft in the arrow direction.
6. Lift the optical pickup unit with the shaft.
7. Remove the optical pickup unit.
8. Pull the shaft and the rubber out.
