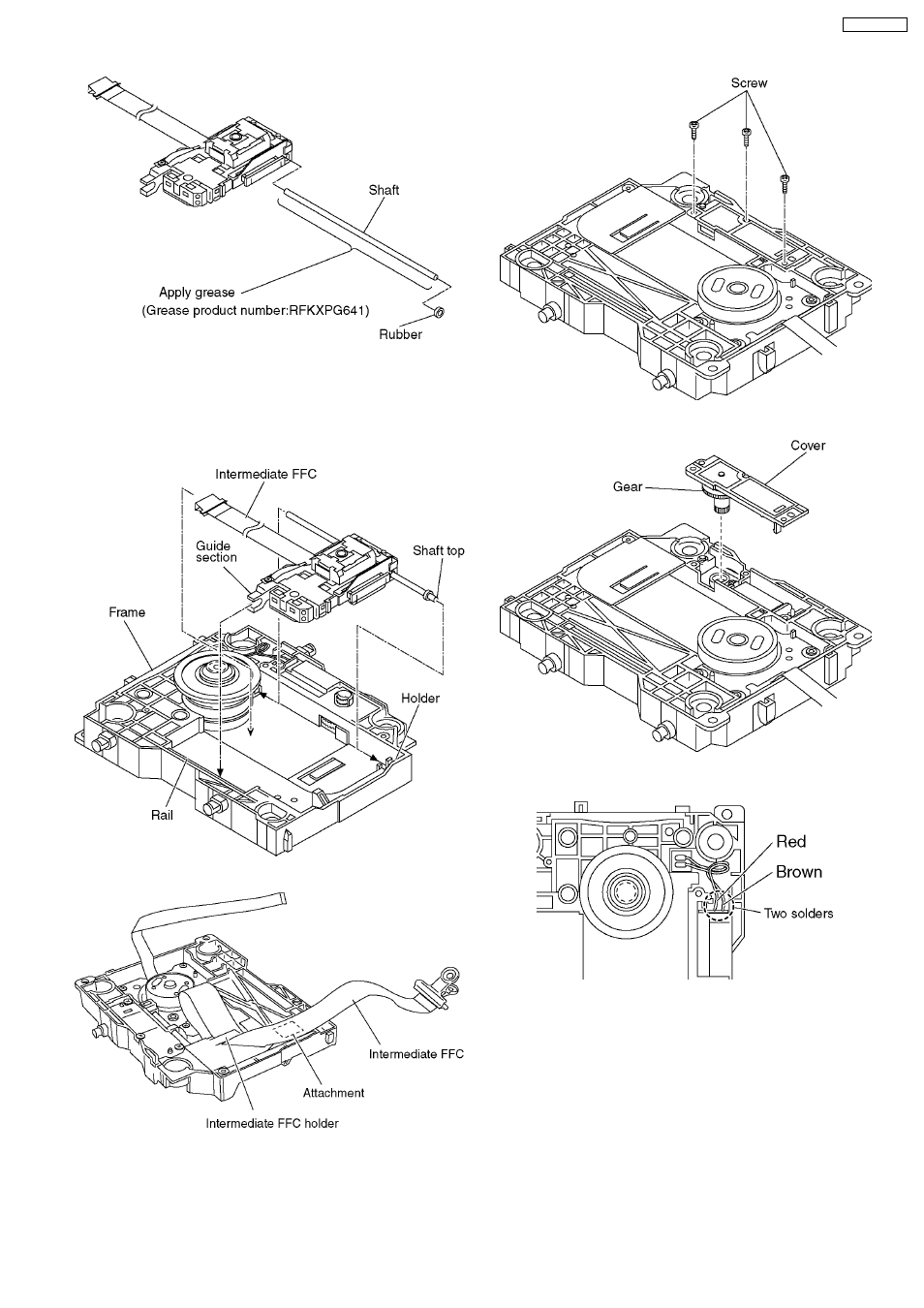

1. Pass the intermediate FPC through the frame hole.
2. Align the guide section of the optical pickup unit with the
rail.
3. Install the shaft top to the holder.
4. The intermediate FFC is fixed as shown below.
7.7. Traverse Motor
1. Unscrew the screws.
2. Remove the cover while lifting the inner gear.
3. Remove the solders.
4. Remove the traverse motor.
17
DVD-K29GCS
