8
2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product. This
product has been thoroughly inspected and tested and is warranted for
One Year parts and labor. If any questions or problems arise during
installation or use of this product, please do not hesitate to contact
Patton Electronics Technical Support at (301) 975-1007 .
2.1 FEATURES
• Four ITU G.703 (E1) or T1 channels over single-mode fiber
• Full duplex operation over a single strand of fiber
• Single-mode fiber with max distance 15.5 miles (25.0 km)
• Two fiber connection options available: FC or SC
• Clocking options: Internal, Network, or Receive Recover (fiber link)
• Local/remote loops: V.52 compliant 511/511E test patterns on each port
• 120-Ohm RJ-48C E1 or 100-Ohm T1 terminations
• AMI, HDB3 (E1), or B8ZS (T1) line coding
• 19 front panel LED status indicators: Fiber line, E1/T1 lines, Test
mode, Error, Loss, No Signal, and Power.
2.2 DESCRIPTION
The Model 1194 (see Figure 1) enables service providers to offer cost
effective extension (see Figure 2 on page 9) and distribution of four T1/
E1 network circuits from a Telco’s Central Office to a point of presence
(POP), or in back-haul type operation linking CSU/DSUs, PABXs, rout-
ers, or multiplexers located at remote sites.

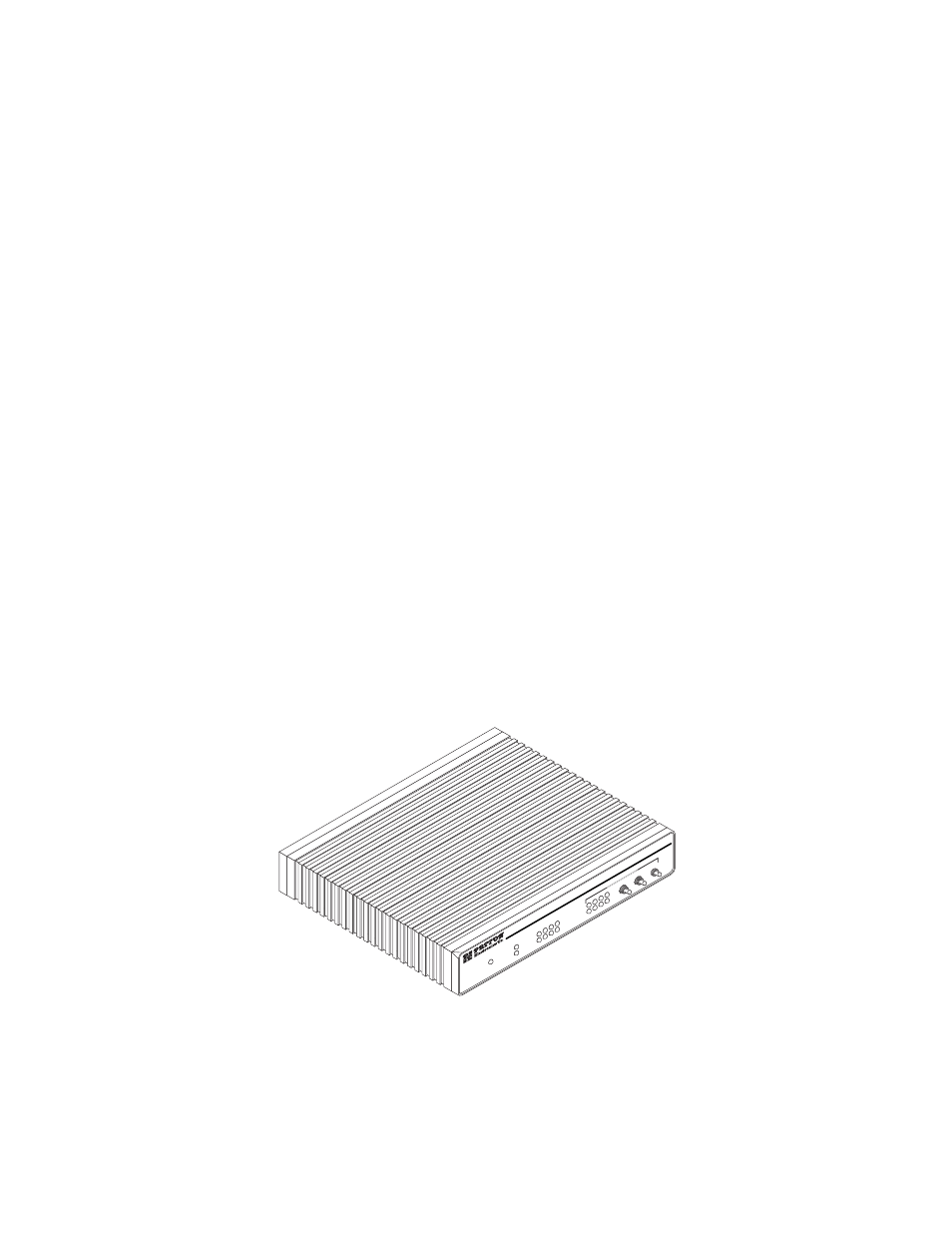

Figure 1. Model 1194
51 1
G.703/G.704 T
est Modes P3
P1
51 1E
P4
P2
TM
ER R
P4 P3
P2 P1
P4 P3 P2
P1
G .7 03 /G .7 04
Fi be r
Lin k
NS
Lin k
NS
Mo de l 1 19 4E Sin gle M od e F ibe r - Q ua d G .70 3/G .70 4 M od em
Po we r
