15

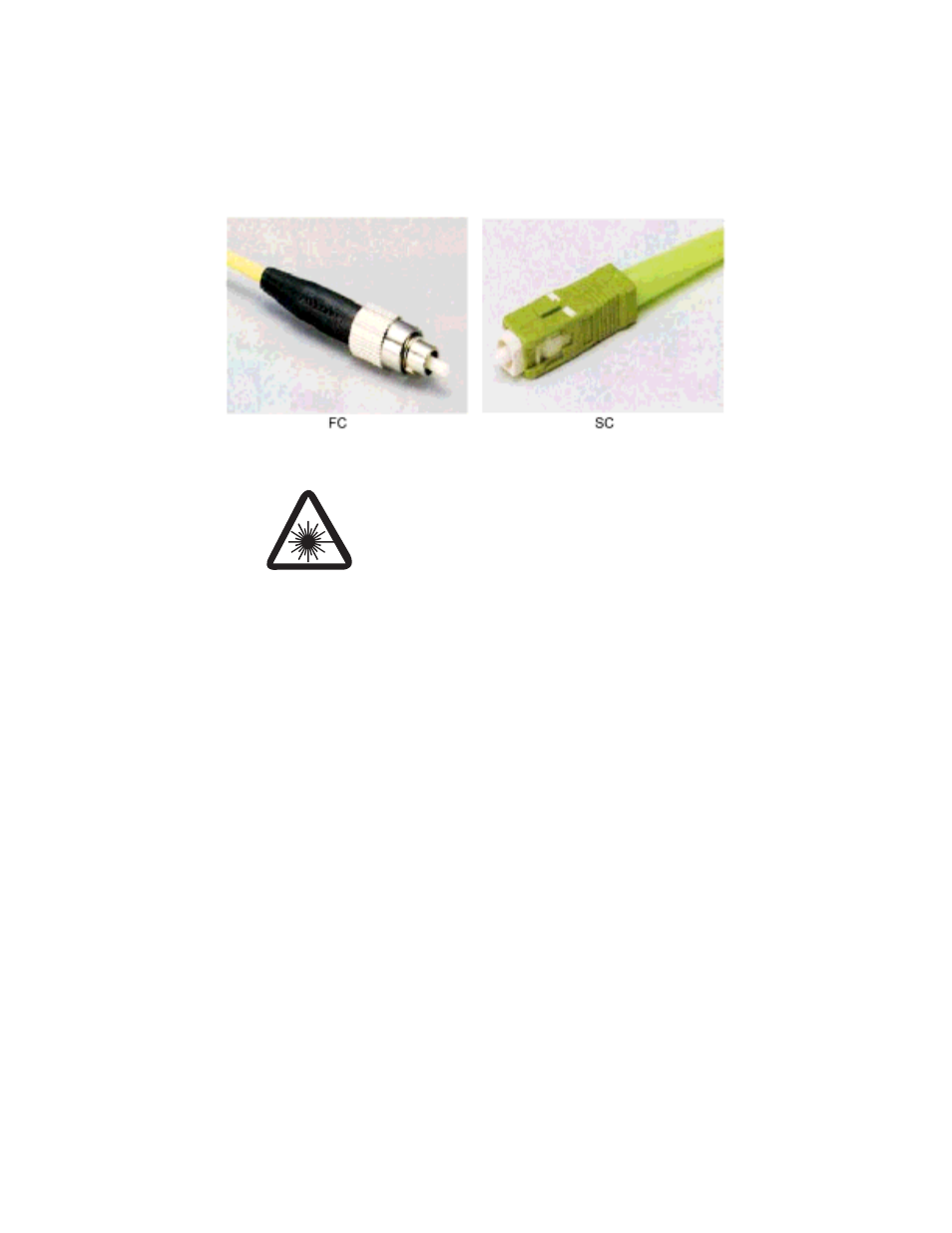

Figure 7. Single-mode fiber connectors (FC and SC)
.
4.3 POWER CONNECTION
The Model 1194 is available with two power supply options:
• Universal Interface AC Power Supply option (Model 1194-UI ) oper-
ates in environments ranging from 100 to 240 VAC, with no re-configu-
ration necessary (see
Appendix B for available domestic and
international power cords).
• DC Power Supply option (Model 1194/48) operates in 48 VDC (36–
60 VDC) environments and is equipped with a 3-pin “terminal strip”
style connector.
Connecting to an AC Power Source
The Universal Interface AC Supply is equipped with a male IEC-320
power connection. A domestic (US) power supply cord is supplied with
the unit at no extra charge. To connect the standard or universal power
supply, follow these steps:
1. Attach the power cord (supplied) to the shrouded male IEC-320 con-
nector on the rear of the Model 1194.
2. Plug the power cord into a nearby AC power outlet.
Caution
Use of controls or adjustments or performance of
procedures other than those specified herein may result
in hazardous laser radiation exposure.
