5

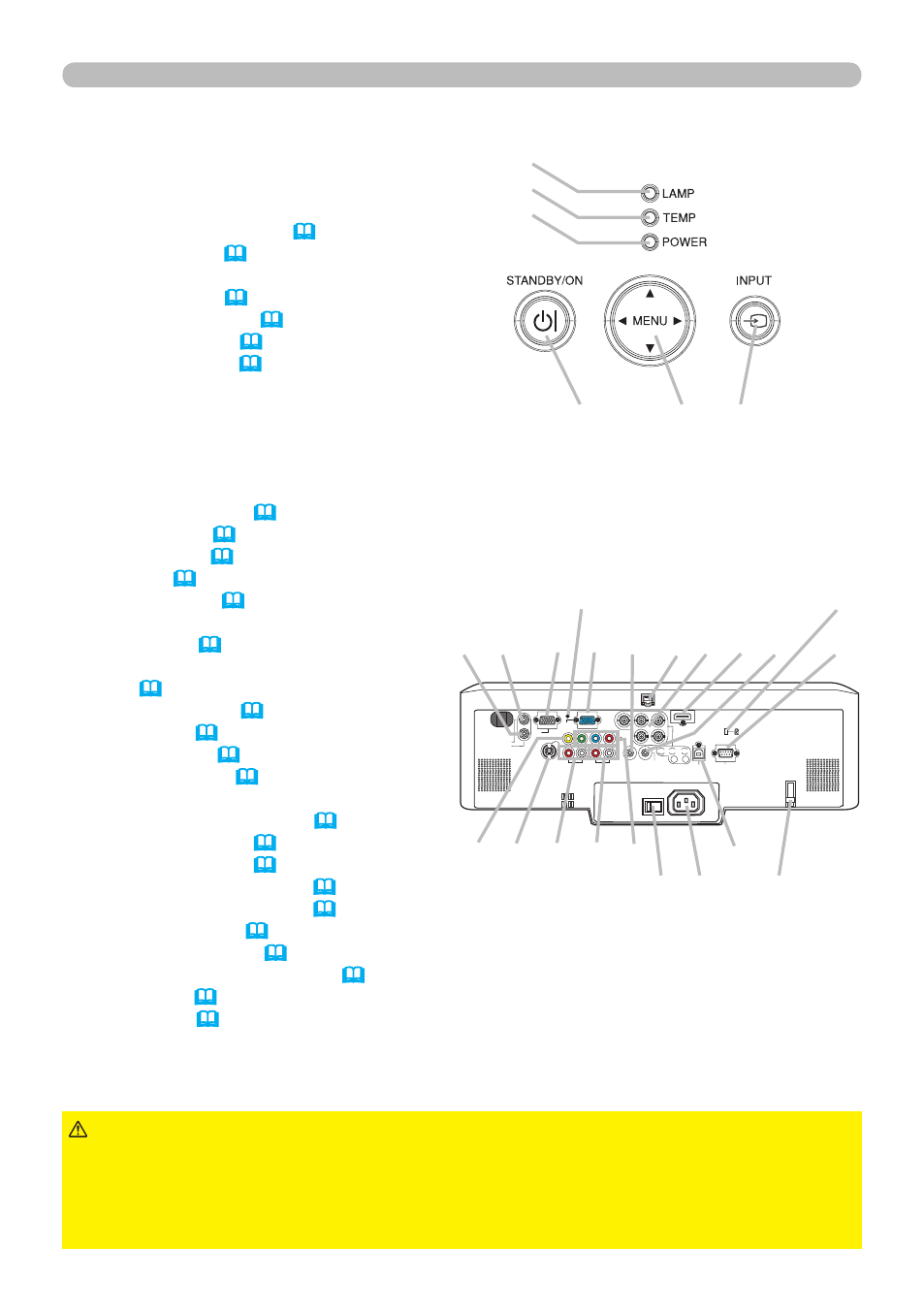

Part names
Control panel
(1) STANDBY/ON button (16)
(2) MENU button (23)
It consists of four cursor buttons.
(3) INPUT button (17)
(4) POWER indicator (16)
(5) TEMP indicator (67)
(6) LAMP indicator (67)
Rear panel
(1) Shutdown switch (69)
(2) Security slot (9)
(3) Security bar (9)
(4) AC inlet (12)
(5) Power switch (16)
(6) RGB1 port (10)
(7) RGB2(G/Y, B/C
B
/P
B
, R/C
R
/P
R
, H, V)
port (10)
(8) CONTROL port (10)
(9) HDMI port (10)
(10) VIDEO port (10)
(11) S-VIDEO port (10)
(12) COMPONENT
(Y, C
B
/P
B
, C
R
/P
R
) ports (10)
(13) AUDIO IN1 port (10)
(14) AUDIO IN2 port (10)
(15) AUDIO IN3 (R/L) ports (10)
(16) AUDIO IN4 (R/L) ports (10)
(17) RGB OUT port (10)
(18) AUDIO OUT port (10)
(19) REMOTE CONTROL port (10)
(20) LAN port (10)
(21) USB port (10)
(6)
(5)
(4)
(1) (2) (3)
►Do not use the security bar and the security slot to prevent the
projector from falling down, since it is not designed for it.
►Use the shutdown switch only when the projector is not turned off by normal
procedure, since pushing this switch stops operation of the projector without
cooling it down.
CAUTION
AUX I/O
DC 5V 0.5A
LAN
AC IN
I O
SD CARD
SD CARD
LAN
AC IN
I O
VIDEO
CONTROL
AUDIO IN 1
AUDIO IN 2
AUDIO OUT
RGB
OUT
RGB1
RGB2
HDMI
R L R L
AUDO IN 3 AUDIO IN 4
C B /P B Y
C R /P R
B/CB/PB B/CR/PR G/Y
H V
USB
REMOTE
CONTROL
VIDEO
CONTROL
AUDIO IN 1
AUDIO IN 2
AUDIO OUT
RGB
OUT
RGB1
RGB2
HDMI
R L R L
AUDO IN 3 AUDIO IN 4
C B /P B Y
C R /P R
B/CB/PB B/CR/PR G/Y
H V
USB
REMOTE
CONTROL
(14) (13) (17) (6) (7) (20) (18) (9) (19) (8)
(2) (1)
(10) (11) (15) (16) (12)
(5) (4) (3)
(21)
