Setting up
Connecting your devices
Be sure to read the manuals for devices before connecting them to the projector.
Make sure that all the devices are suitable to be connected with this product, and
prepare the cables required to connect.

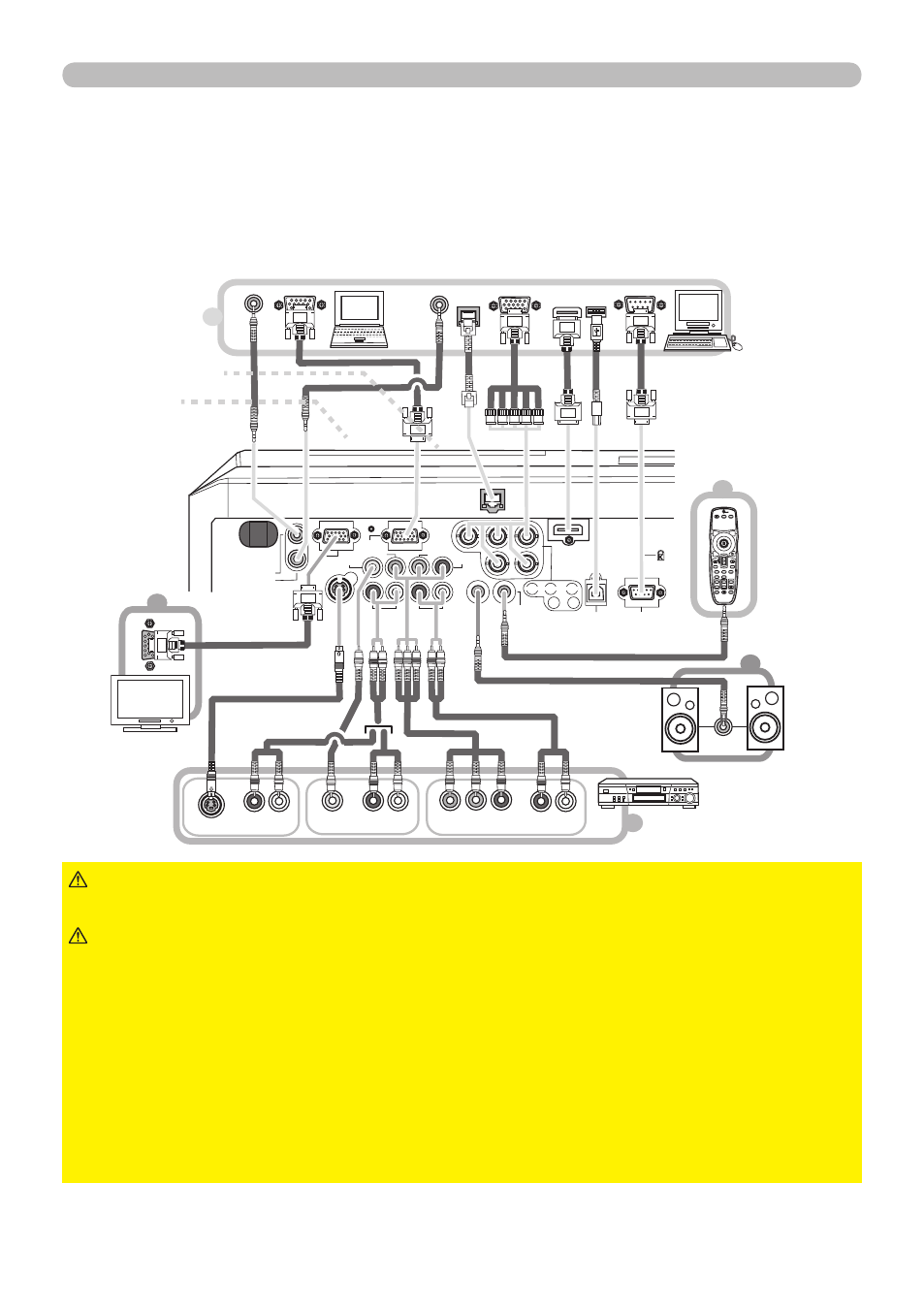

Please refer to the following illustrations to connect them.
►Do not disassemble or modify the projector.
►Be careful not to damage the cables, and do not use damaged cables.
WARNING
►Turn off all devices and unplug their power cords prior to
connecting them to projector. Connecting a live device to the projector may
generate extremely loud noises or other abnormalities that may result in
malfunction or damage to the device and the projector.
►Use appropriate accessory or designated cables. Ask your dealer about non-
accessory cables which may be required a specific length or a ferrite core by
the regulations. For cables with a core only at one end, connect the end with the
core to the projector.
►Make sure that devices are connected to the correct ports. An incorrect
connection may result in malfunction or damage to the device and the projector.
CAUTION
VIDEO
CONTROL
AUDIO IN 1
AUDIO IN 2
AUDIO OUT
RGB
OUT
RGB1
RGB2
HDMI
R L R
L
AUDO IN 3
AUDIO IN 4
LAN
C
B
/P
B
Y
C
R
/P
R
B/C
B
/P
B
B/C
R
/P
R
G/Y
H
V
USB
REMOTE
CONTROL
RGB OUT
AUDIO OUT
RGB OUT
AUDIO OUT
RS-232C
LAN
RGB IN
AUDIO IN
Y
C
B
/P
B
C
R
/P
R
COMPONENT VIDEO OUT
R
L
AUDO IN OUT
VIDEO OUT
R
L
AUDO IN OUT
S-VIDEO OUT
R
L
AUDO IN OUT
HDMI
USB-A
Monitor
Remote
control
Speakers
(wiht an
amplifier)
VCR/DVD player
USB storage
SD card
PC
