20
Operating

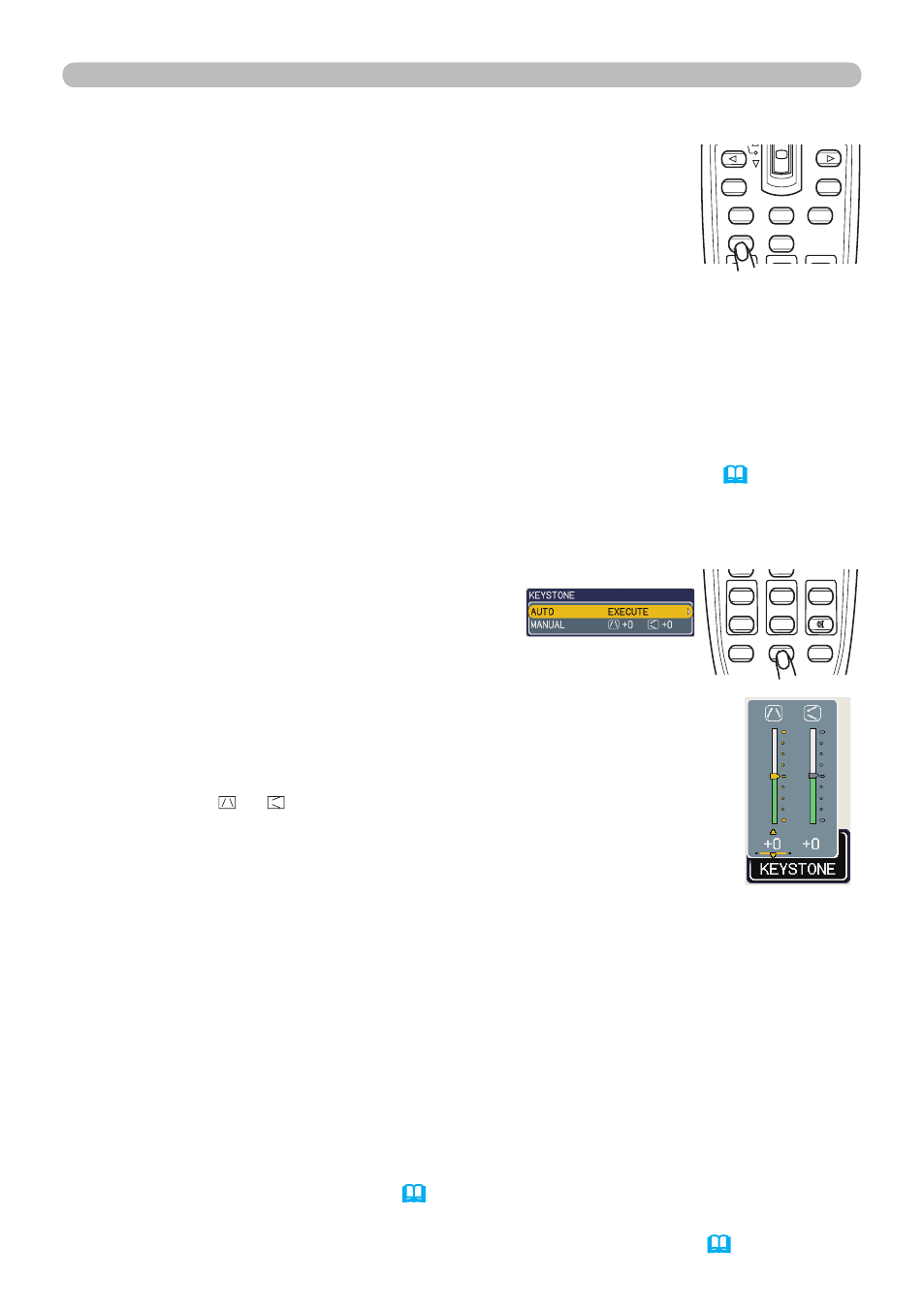

1. Press the POSITION button on the remote control.
The “POSITION” indication will appear on the screen.
Adjusting the position
2. Use the ▲/▼/◄/► cursor buttons to adjust the picture position.
When you want to reset the operation, press the RESET
button on the remote control during the operation.
To complete this operation, press the POSITION button
again. Even if you do not do anything, the dialog will
automatically disappear after a few seconds.
● When this function is performed on a video signal, s-video signal or component
video signal, some image such as an extra-line may appear at outside of the picture.
● When this function is performing on a Video signal, S-Video signal, or component
signal of 525i(480i) or 625i(576i) input from the COMPONENT port, the range
of this adjustment depends on the OVER SCAN in IMAGE menu (29). It is not
possible to adjust when the OVER SCAN is set to 10.
BLANK LASER
ASPECT
ESC MENU RESET
POSITION AUTO
MAGNIFY MY BUTTON VOLUME
ON 1
MUTE
OFF 2
FREEZE KEYSTONE SEARCH
PUSH ENTER
PAGE UP PAGE DOWN
STANDBY/ON VIDEO RGB
LASER
INDICATOR
BLANK LASER
ASPECT
ESC MENU RESET
POSITION AUTO
MAGNIFY MY BUTTON VOLUME
ON 1
MUTE
OFF 2
FREEZE KEYSTONE SEARCH
PUSH ENTER
PAGE UP PAGE DOWN
STANDBY/ON VIDEO RGB
LASER
INDICATOR
1. Press the KEYSTONE button on the remote
control. A dialog will appear on the screen
to aid you in correcting the distortion.
Correcting the keystone distortions
2. Use the ▲/▼ cursor buttons to select AUTO or MANUAL
operation, and press the ► button to perform the following.
● The adjustable range of this function will vary among inputs. For some input, this
function may not work well.
● When V:INVERT or H&V:INVERT is selected to the MIRROR item in the SETUP
menu, if the projector screen is inclined or angled downward, this function may
not work correctly.
● When the zoom adjustment is set to the TELE (telephoto focus), this function
may be excessive. This function should be used when the zoom adjustment is
set to the full WIDE (wide-angle focus) whenever possible.
● When the projector is placed on the level (about ±3°), this function may not work.
● When the projector is inclined to near ±30 degree or over, this function may not work well.
● When the vertical lens shift is not set fully upward (not set fully downward for the
optional lens type FL-601 only (45)), this function may not work well.
● When the horizontal lens shift is not set to the center, this function may not work well.
● This function will be unavailable when Transition Detector is on (51).
1) AUTO executes automatic vertical keystone correction.
2) MANUAL displays a dialog for keystone correction.
Use the ◄/► cursor buttons to select the direction to
correct ( or ) then use the ▲/▼ buttons for adjustment.
To close the dialog and complete this operation, press the
KEYSTONE button again. Even if you don’t do anything, the
dialog will automatically disappear after a few seconds.
