Operating
• When the vertical lens shift
is adjusted, it is recommended to shift
the picture upward.
NOTE

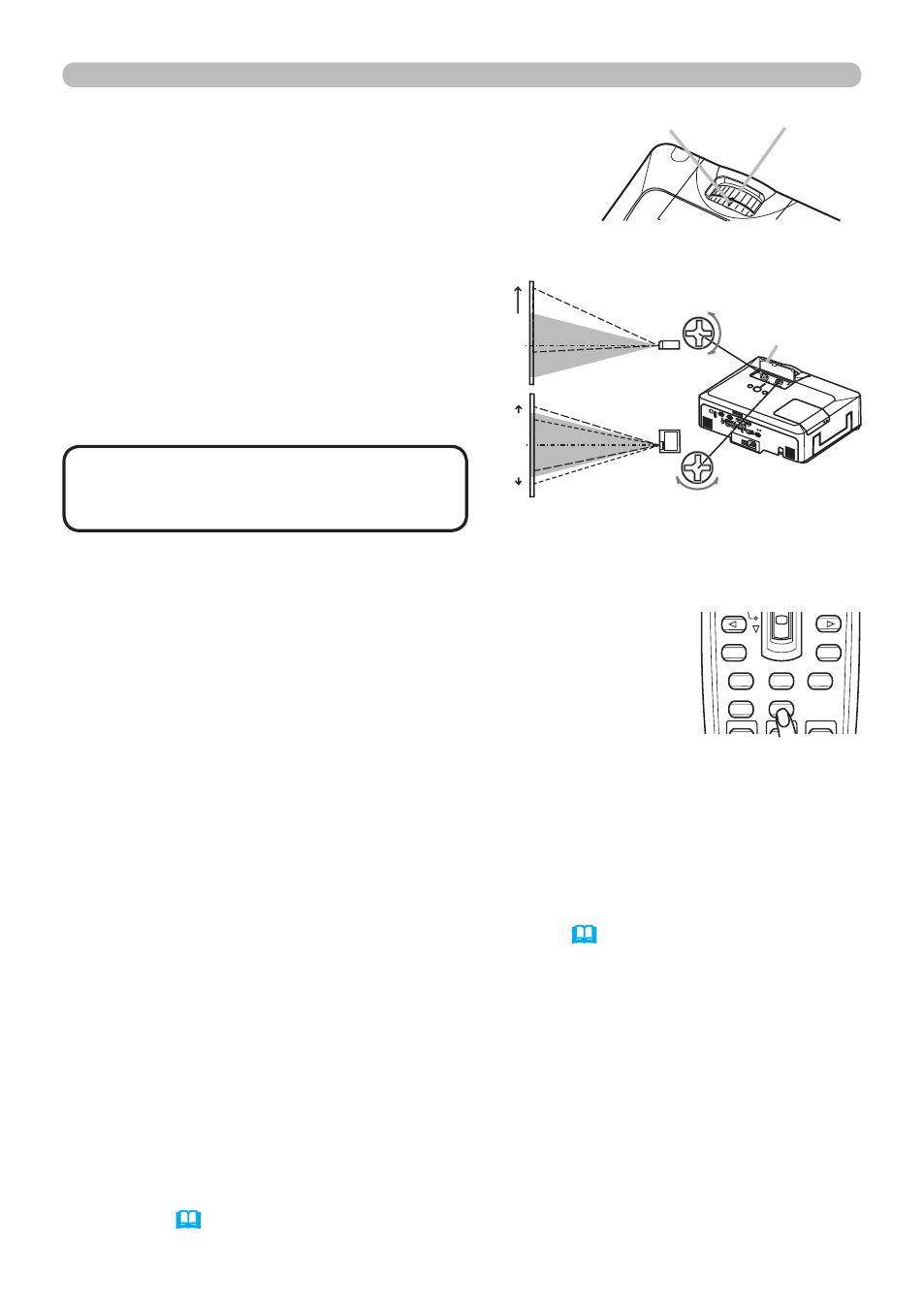

1. Use the zoom ring to adjust the screen size.
Adjusting the zoom and focus
2. Use the focus ring to focus the picture.
BLANK LASER
ASPECT
ESC MENU RESET
POSITION AUTO
MAGNIFY MY BUTTON VOLUME
ON 1
MUTE
OFF 2
FREEZE KEYSTONE SEARCH
PUSH ENTER
PAGE UP PAGE DOWN
STANDBY/ON VIDEO RGB
LASER
INDICATOR
2/5
1/10
1/10
Zoom ring
Focus ring
Top
1. Use the vertical lens shift dial to shift
the picture upward or downward.
Adjusting the lens shift
2. Use the horizontal lens shift dial to
shift the picture left or right.
1. Press the AUTO button on the remote control.
Using the automatic adjustment feature
 For an RGB signal
The vertical position, the horizontal position and the
horizontal phase will be automatically adjusted.
Make sure that the application window is set to its
maximum size prior to attempting to use this feature.
A dark picture may still be incorrectly adjusted. Use a
bright picture when adjusting.
 For a video signal and s-video signal
The video format best suited for the respective input signal will be selected
automatically. This function is available only when the AUTO is selected for
the VIDEO FORMAT item in the INPUT menu (32). The vertical position
and horizontal position will be automatically set to the default.
 For a component video signal
The vertical position, horizontal position and horizontal phase will be
automatically set to the default.
● The automatic adjustment operation requires approx. 10 seconds. Also
please note that it may not function correctly with some input. When this
function is performed for a video signal, a certain extra such as a line may
appear outside a picture.
● The items adjusted by this function may vary when the FINE or DISABLE is
selected for the AUTO ADJUST item of the SERVICE item in the OPTION
menu (45).
