Arrangement – Planar PR Line PR9020 User Manual
Page 10
8
Setting up
Arrangement

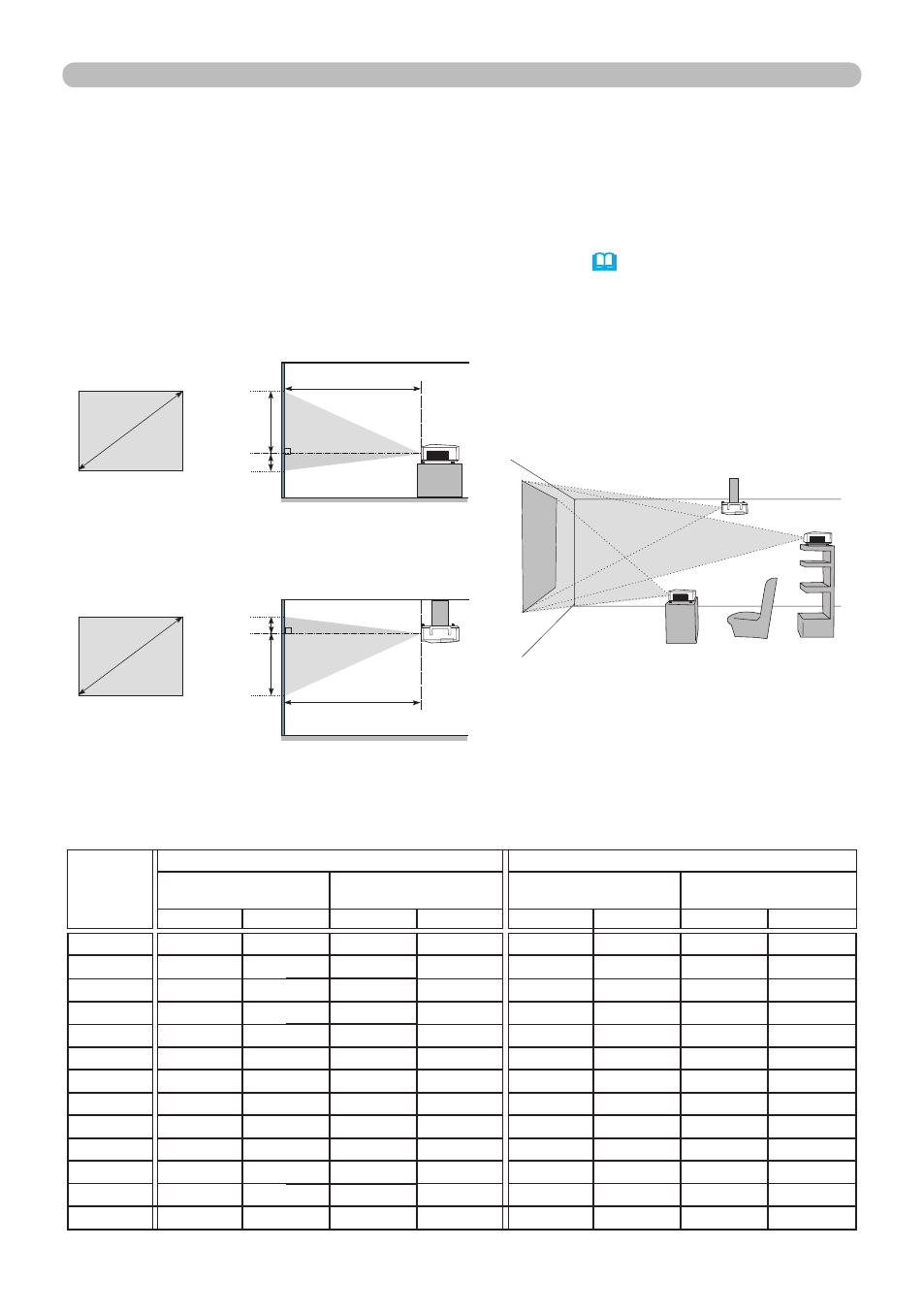

Refer to the illustrations and tables below to determine screen size and projection distance.
The values shown in the table are calculated for a full size screen: 1024×768
(a) Screen size (diagonal)
(b) Projection distance (±10%)
(c) Screen height (±10%), when the vertical lens shift (19) is set full upward.
On a horizontal
surface
Suspended from
the ceiling
• Keep a space of 30 cm or more
between the sides of the projector
and other objects such as walls.
• Consult with your dealer before
a special installation such as
suspending from a ceiling.
(a) Screen
size
[inch (m)]
4 : 3 screen
16 : 9 screen
(b) Projection distance
[m (inch)]
(c) Screen height
[cm (inch)]
(b) Projection distance
[m (inch)]
(c) Screen height
[cm (inch)]
min.
max.
down
up
min.
max.
down
up
30 (0.8) 0.9 (35) 1.1 (42)
5
(2)
41 (16) 1.0 (38) 1.2 (46)
-1
(0)
39 (15)
40 (1.0) 1.2 (47) 1.4 (57)
6
(2)
55 (22) 1.3 (51) 1.6 (62)
-2
(-1)
51 (20)
60 (1.5) 1.8 (71) 2.2 (86)
9
(4)
82 (32) 2.0 (78) 2.4 (94)
-2
(-1)
77 (30)
70 (1.8) 2.1 (83) 2.6 (100) 11
(4)
96 (38) 2.3 (91) 2.8 (110) -3
(-1)
90 (35)
80 (2.0) 2.4 (96) 2.9 (115) 12
(5) 110 (43) 2.6 (104) 3.2 (126) -3
(-1) 103 (41)
90 (2.3) 2.7 (108) 3.3 (130) 14
(5) 123 (49) 3.0 (117) 3.6 (141) -4
(-1) 116 (46)
100 (2.5) 3.0 (120) 3.7 (144) 15
(6) 137 (54) 3.3 (131) 4.0 (157) -4
(-2) 129 (51)
120 (3.0) 3.7 (144) 4.4 (174) 18
(7) 165 (65) 4.0 (157) 4.8 (189) -5
(-2) 154 (61)
150 (3.8) 4.6 (181) 5.5 (217) 23
(9) 206 (81) 5.0 (197) 6.0 (237) -6
(-2) 193 (76)
200 (5.1) 6.1 (241) 7.4 (291) 30 (12) 274 (108) 6.7 (263) 8.0 (317) -8
(-3) 257 (101)
250 (6.4) 7.7 (302) 9.2 (364) 38 (15) 343 (135) 8.4 (329) 10.1 (396) -10 (-4) 322 (127)
300 (7.6) 9.2 (363) 11.1 (437) 46 (18) 411 (162) 10.0 (395) 12.1 (476) -12 (-5) 386 (152)
350 (8.9) 10.8 (424) 13.0 (510) 53 (21) 480 (189) 11.7 (462) 14.1 (556) -15 (-6) 450 (177)
