35
Powerware 9350 Series 685 and 1085 Auxiliary Battery Cabinets
Installation Manual 164201408 Rev. P00 053002
T
A
E
T
T
T
T
T
T T
E
E E
E E
A
A
A
A
A

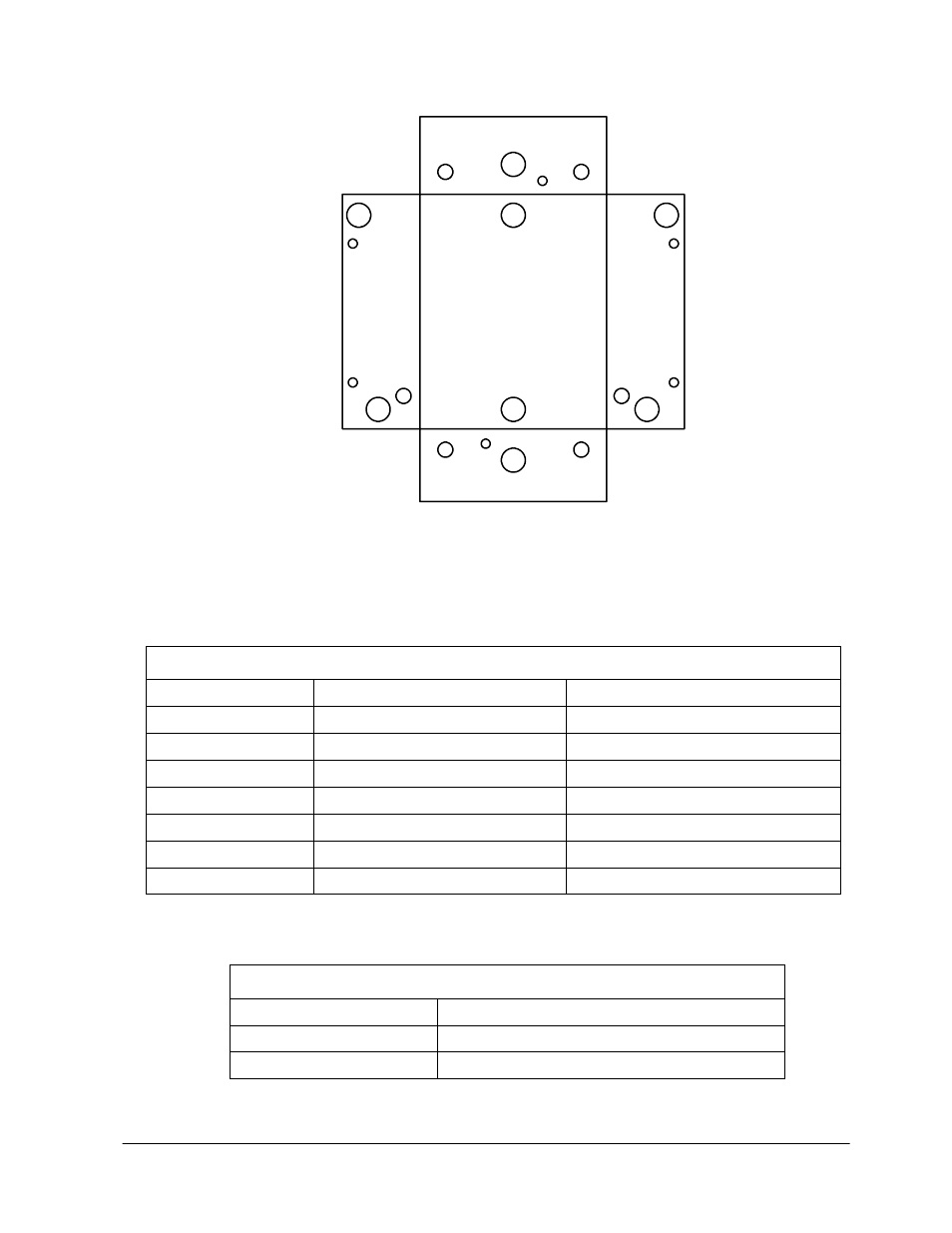

Figure 21. Knockout Pattern for Remote Battery Disconnect
Table A. Remote Battery Disconnect Power Terminations
Terminal Size of Pressure Termination Terminal Function
E4 (+) 1 --- #8---3/0 UPS Battery Contactor K2 (+)
E5 (---) 1 --- #8---3/0 UPS Battery Contactor K2 (---)
Breaker (+) 1 --- #4---300 kcmil Battery Disconnect (+)
Breaker (---) 1 --- #4---300 kcmil Battery Disconnect (---)
Breaker (jumper) 1 --- #4---300 kcmil Battery Disconnect (jumper)
Battery Cabinet (+) See Table C (Appendix A) Stand---alone battery cabinet (+)
Battery Cabinet (---) See Table C (Appendix A) Stand---alone battery cabinet (---)
Table B. Battery Cabinet Terminations
Battery Cabinet Size of Pressure Termination
Series 685 (1) #2---1/0 kcmil [Breaker (+) & (---)]
Series 1085 (1) 3/0---250 kcmil [Breaker (+) & (---)]
