Powerware 9350 Series 685 and 1085 Auxiliary Battery Cabinets
Installation Manual 164201408 Rev. P00 053002
Installing a Remote Battery Disconnect
The remote battery disconnect is crated separately for shipping. It is enclosed
in a box and is designed to be wall mounted on a surface that can support the
weight and bolt pattern described in this chapter. You can install a remote battery
disconnect anywhere between the remote DC supply and the UPS, according to
national and local codes. Figure 20 shows the remote battery disconnect
enclosure.
FRONT SIDE
ON
OFF

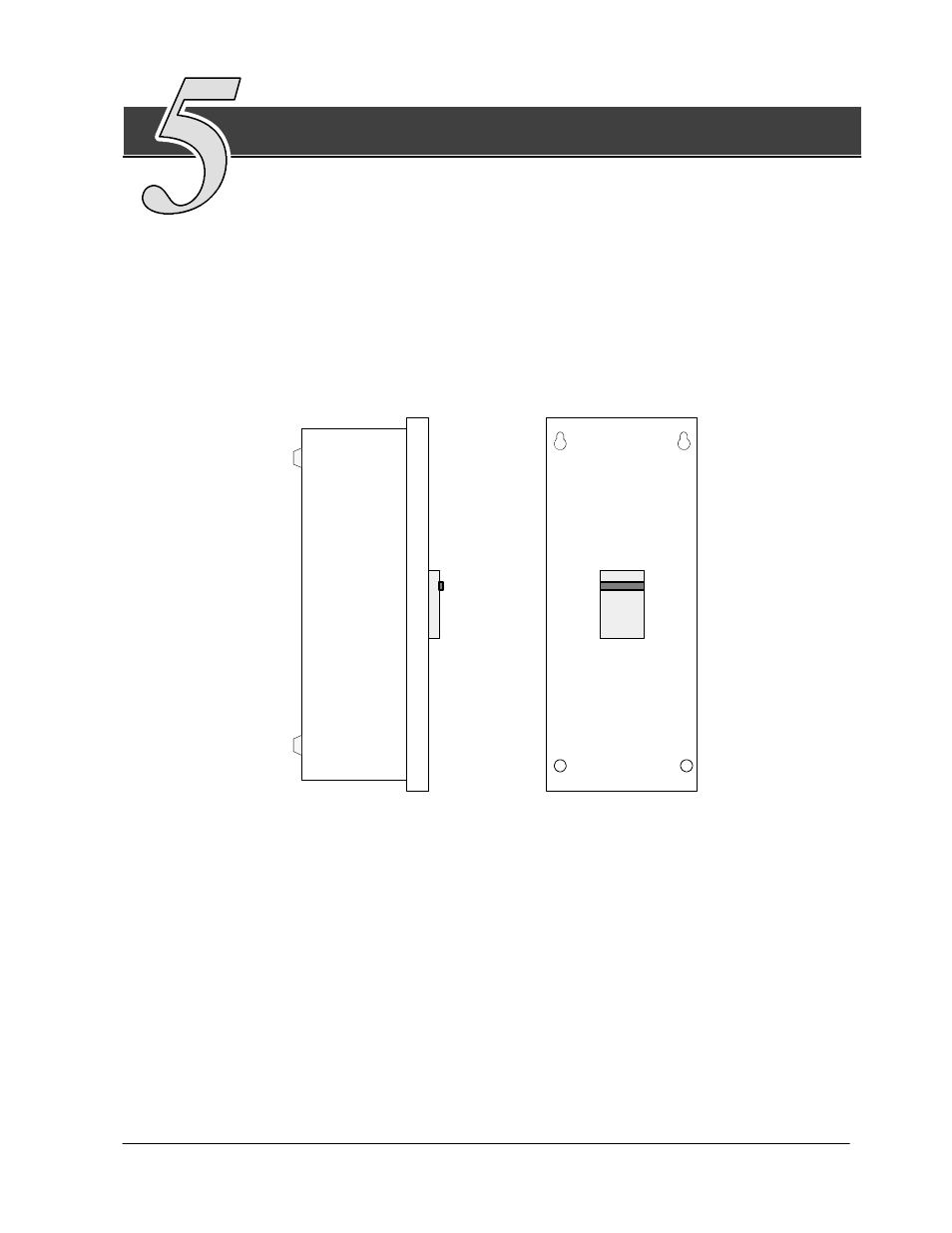

Figure 20. Remote Battery Disconnect Enclosure
The breaker switch on the remote battery disconnect should be set to ON for
normal UPS operation when DC power is available at the UPS. When service
personnel are performing maintenance on the UPS or battery cabinet, the switch
should be OFF.
