14

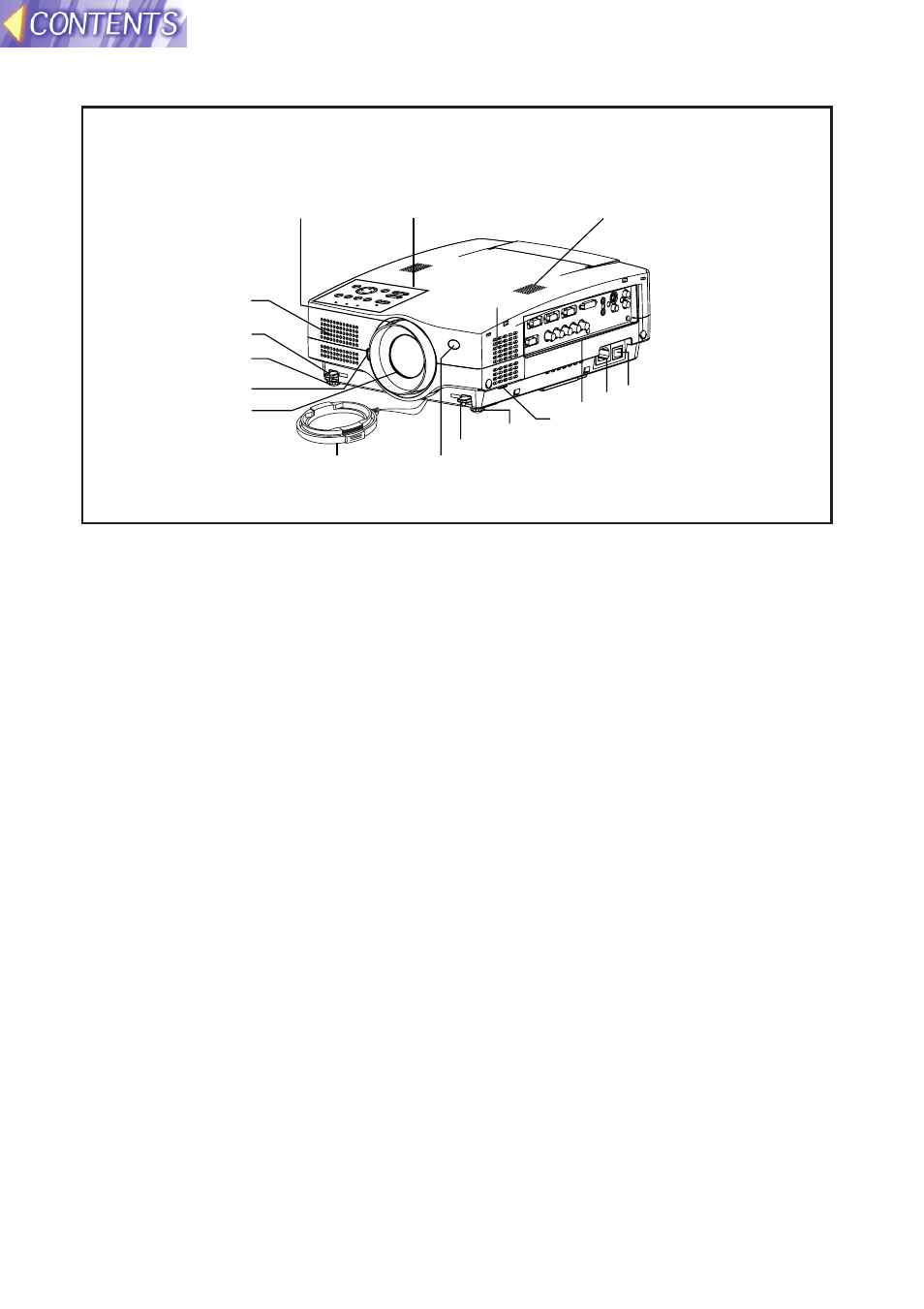

Location and function of each part
# Projector control panel
(page 16 )
$ Focus ring
(pages 31 and 50 )
% Air inlet ports
Do not cover these ports.
& Leg adjuster buttons(L/R)
(page 30 )
These buttons are used to unlock
the front adjustable legs. Press to
adjust the angle of tilt of the
projector.
' Front adjustable legs(L/R)
(page 30 )
( Lens release button
(page 51 )
This button is used when using a
projection lens that is sold
separately.
) Projection lens
* Lens cover
+ Remote control signal receptor
(page 22 )
, Air filter
(page 64 )
- Connector panel
(page 18 )
. Power input socket (AC IN)
(page 30 )
The accessory power cord is
connected here.
Do not use any power cord other
than the accessory power cord.
/ MAIN POWER switch
(pages 30 and 31 )
0 Speaker
Projector
# $
'
(
)
&
'
+ *
,
% %
/
