Ethernet 10Base-T and 100Base-T
63
Model 4520 & 4110 Series Getting Started Guide
B • Cabling
Ethernet 10Base-T and 100Base-T
Ethernet devices (10Base-T/100Base-T) are connected to the SmartNode over a cable with RJ-45 plugs. Use a
cross-over cable to a host, or a straight cable to a hub. See
the different connections.
Note
The SmartNode 4520 Series is equipped with Auto-MDX Ethernet ports.
Use straight-through wired cables for host or hub/switch connections

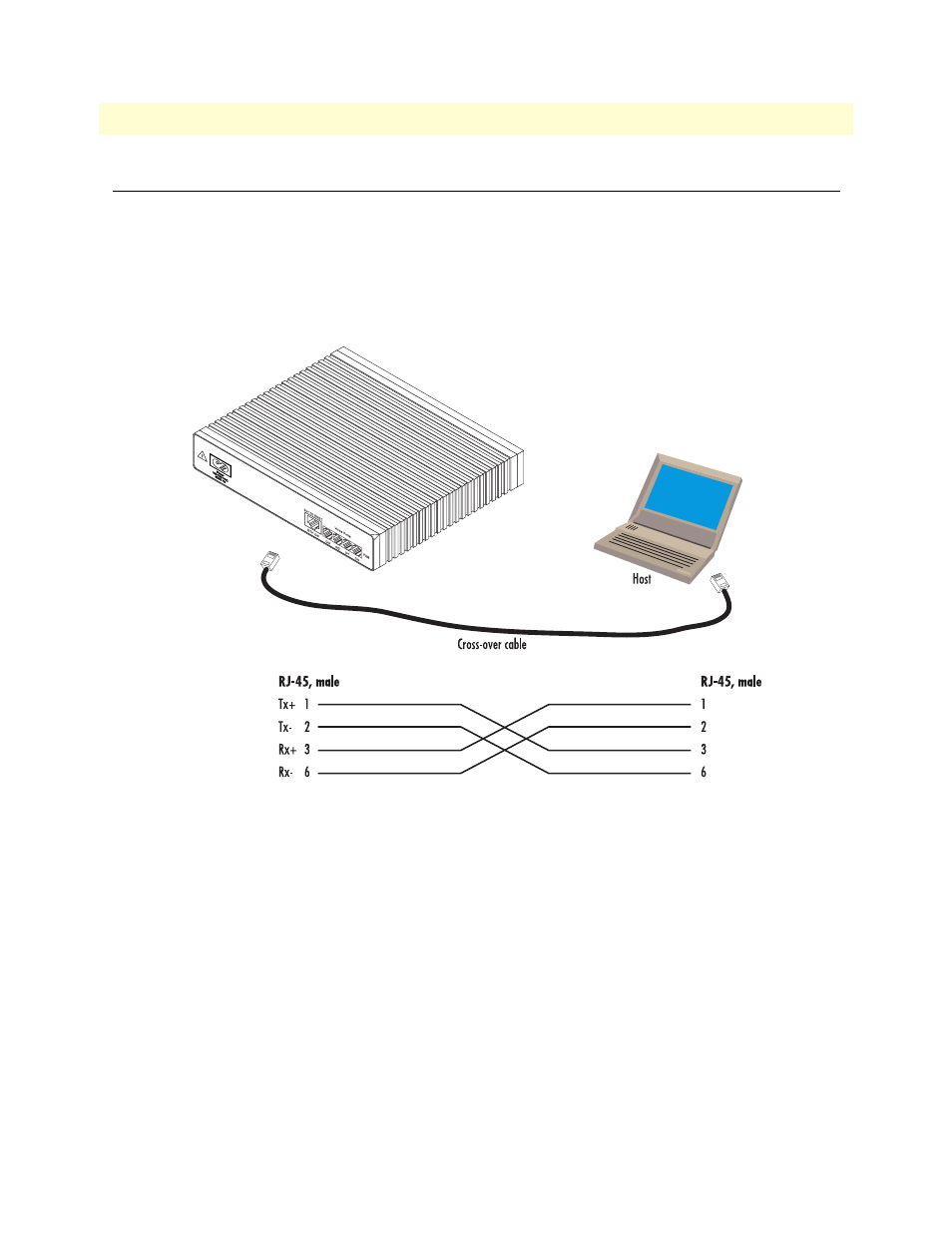

Figure 26. Ethernet cross-over
