1. Configure IP address 43
Model 4520 & 4110 Series Getting Started Guide 4 • Getting started with the SmartNode
1. Configure IP address
Power connection and default configuration
First the SmartNode must be connected to the mains power supply with the power cable. Wait until the 'Run'
LED stops blinking and lights constantly. Now the SmartNode is ready.
The factory default configuration for the Ethernet interface IP addresses and network masks are listed in table 9 .
Both Ethernet interfaces are activated upon power-up.
If these addresses match with those of your network, go to section “2. Connect the SmartNode to the network”
on page 45. Otherwise, refer to the following sections to change the addresses and network masks.
Connect with the serial interface
The Console port is wired as an EIA-561, RS-232 port. Use the included Model 16F-561 adapter and cable (see
figure 21 ) between the SmartNode’s Console port and a PC or workstation’s RS-232 serial interface. Activate the
terminal emulation program on the PC or workstation that supports the serial interface (e.g. HyperTerm).

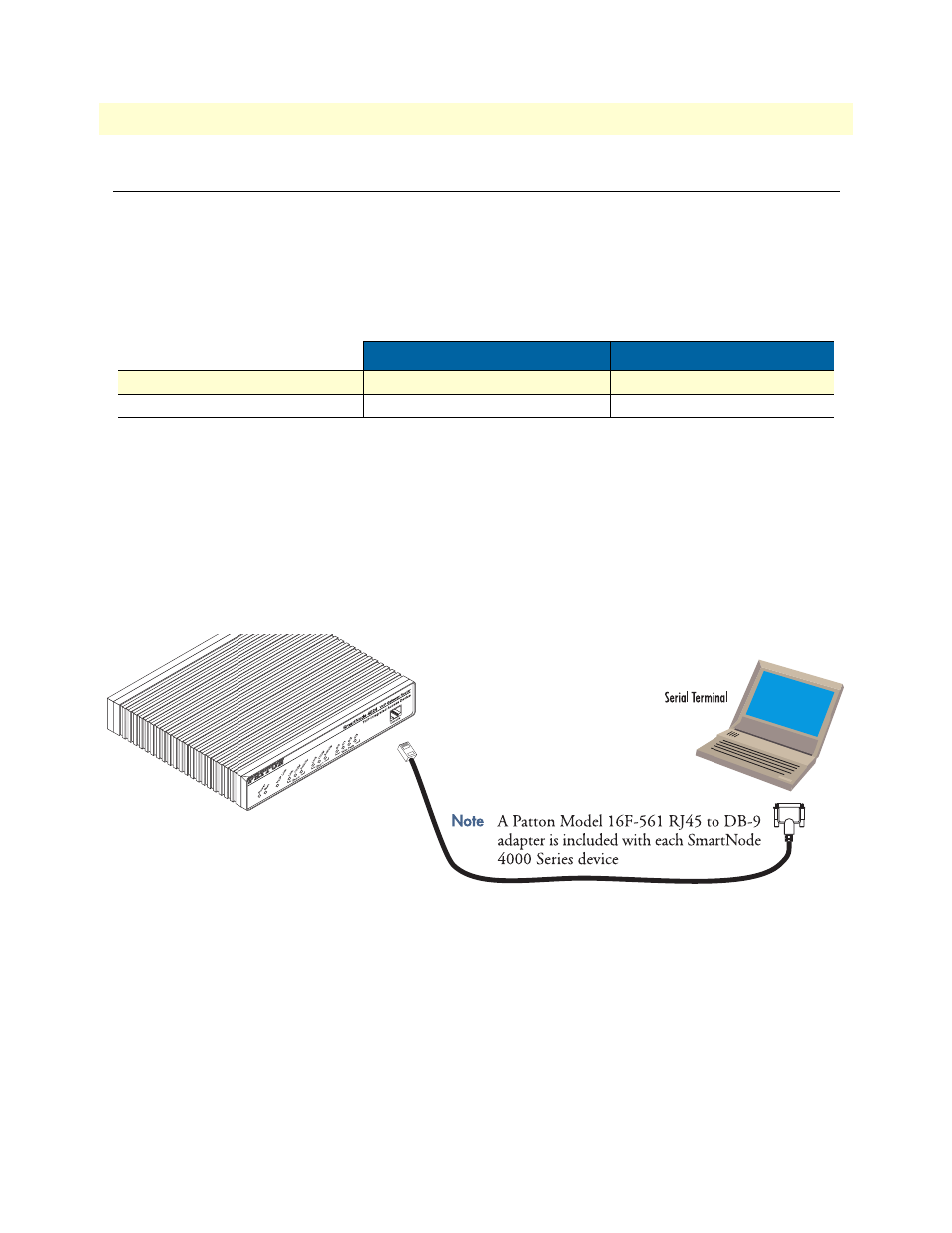

Figure 21. Connecting to the terminal
Terminal emulation program settings:
• 9600 baud
• no parity
• 8 bit
• 1 stop bit
• 1 start bit
• No flow control
Table 9. Factory default IP address and network mask configuration
IP Address Network Mask
Interface Ethernet 0 (ETH0) 172.16.40.1 255.255.0.0
Interface Ethernet 1 (ETH1) 192.168.1.1 255.255.255.0
