3 • Installation

Model 4520 & 4110 Series Getting Started Guide

38

Installing the gateway router

Installing the Ethernet cable
The SmartNode 4520 Series has automatic MDX (auto-cross-over) detection and configuration on the Ether-
net ports. Any of the two ports can be connected to a host or hub/switch with a straight-through wired cable
(see

figure 17

). Ethernet devices (10Base-T or 100Base-T) are connected to the SmartNode’s Ethernet ports

(see

table 8

for port pin-out listing) via a cable terminated with RJ-45 plugs. A cross-over cable is only required

when connecting SmartNode 4110 Series devices to a host (see

figure 18

on page 39).

Note

Pins not listed are not used.

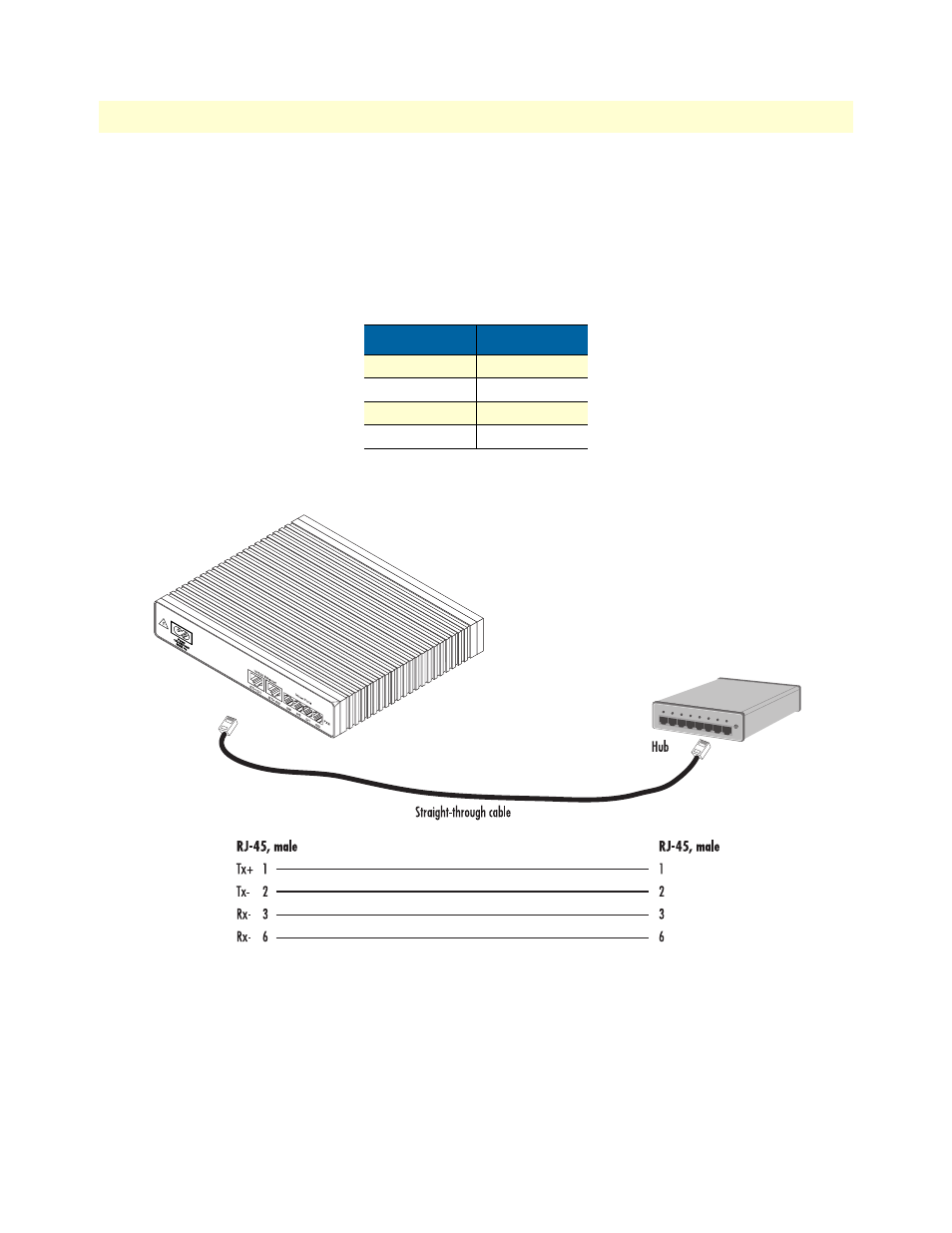

Figure 17. Connecting to a hub

Table 8. Ethernet 10/100Base-T (RJ-45) port pin-outs

Pin

Signal

1

TX+

2

TX-

3

RX+

6

RX-
