5 • Monitoring Status
Model 4520 & 4110 Series Getting Started Guide
48
Status LEDs
Status LEDs
This chapter describes SmartNode gateway router front panel LEDs.
shows SmartNode 4520 Series
on page 49 shows SmartNode 4110 Series LEDs. LED definitions are listed in

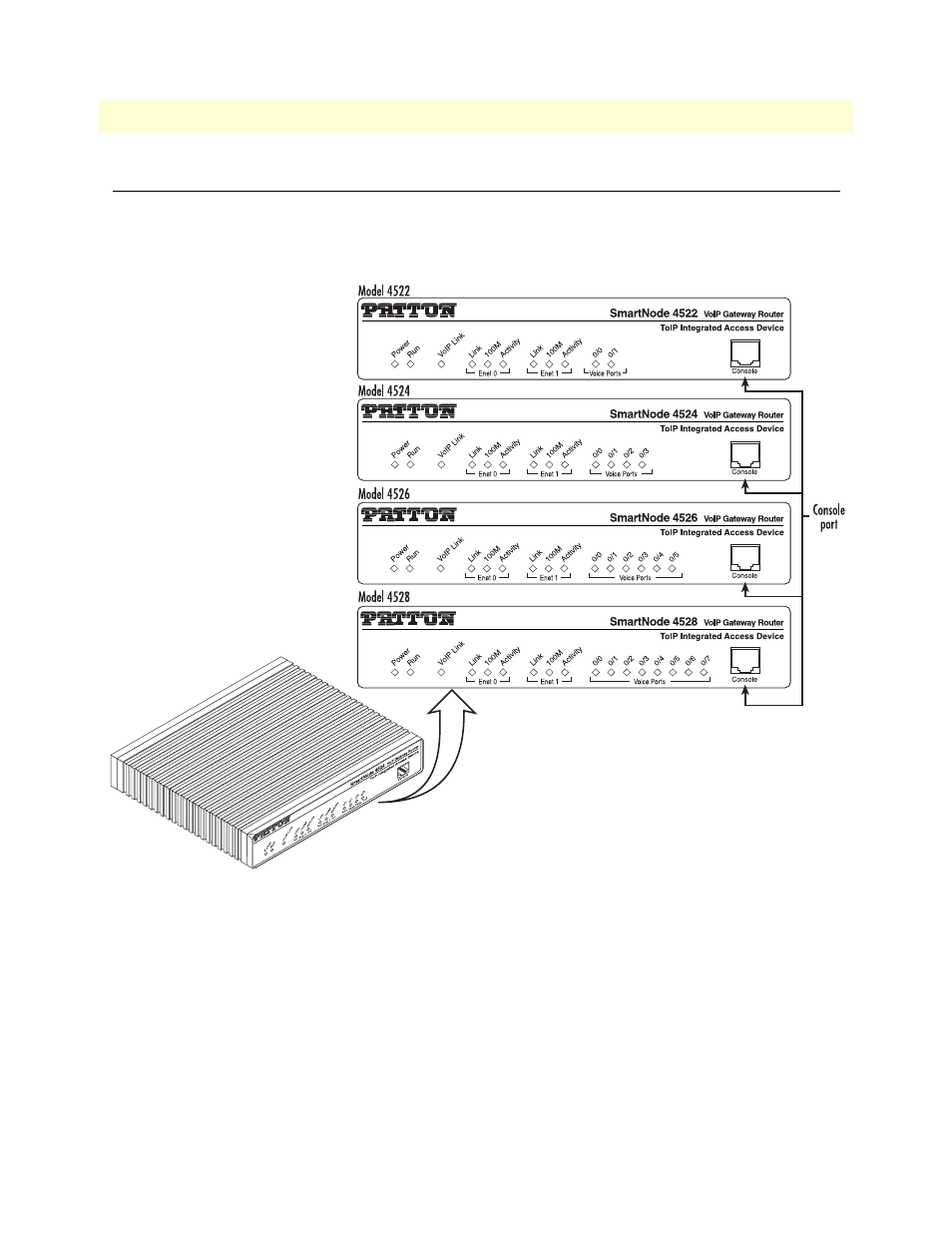

Figure 23. SmartNode 4520 Series front panels
