1 • General information Model 4520 & 4110 Series Getting Started Guide
20 SmartNode Series VoIP routers overview
SmartNode 4110 Series router
The SmartNode 4110 Series is a compact VoIP gateway, which supports two to eight voice channels. The fol-
lowing models (each equipped with one 10/100Base-T Ethernet port) are available (see
figure 5 ):
• Model 4112 (2 FXS voice ports)
• Model 4114 (4 FXS voice ports)
• Model 4116 (6 FXS voice ports)
• Model 4118 (8 FXS voice ports)
Note The SmartNode 4116 and 4118 are available with external power only.

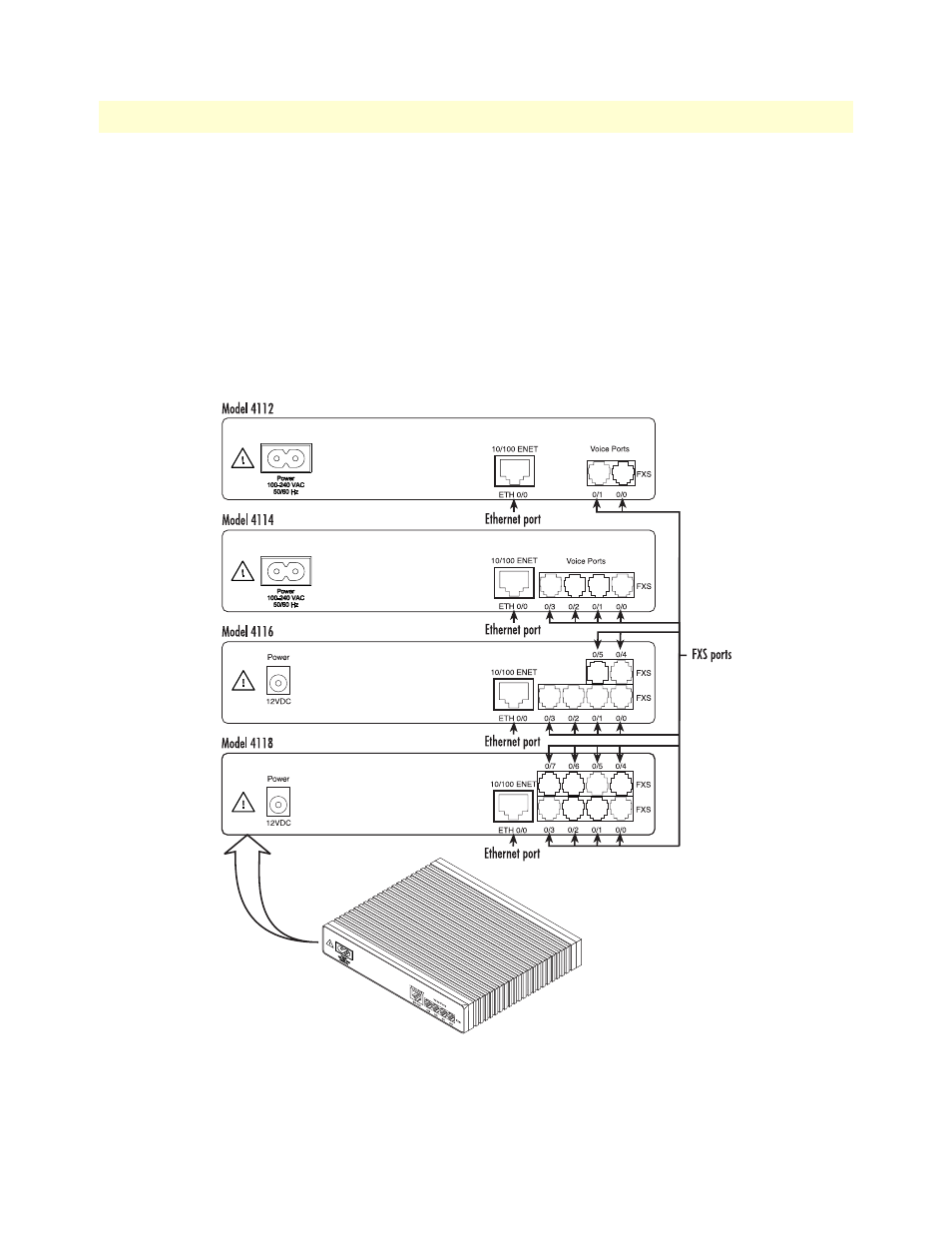

Figure 5. 4110 Series rear panels
