CAUTION
CAUTION
RAM modules are extremely sensitive to static electricity. There are cases where
static electricity generated by the human body has adversely affected such modules.
In addition, it is easy to damage the RAM modules or internal components of the
computer. Therefore, when inserting or removing a RAM module, handle the mod-
ule with extreme care.
Inserting/Removing RAM Module
Do not touch the terminals or internal components, insert objects
other than the module, or allow foreign particles to enter. Doing so
has been known to cause damage, fire or electric shock.
1
Power off your computer
(
“Starting Up/Shutting Down”)
Do not shut down using the standby or hibernation function.
Disconnect the AC adaptor and remove the battery pack.
3
Inserting the RAM module
Insert the RAM module, ensuring that the notch is on the correct
side.
Snap the module into place by pushing down on it.
2
Remove the memory cover after removing the screw
holding it in place
Turn the computer over and use a screwdriver to remove the screw.
4
Put the cover back into place, then fasten the screw
Removing the RAM module
Open the left and right hooks.
Gently remove the RAM module from the slot.
Use a RAM module meeting the RAM module specifications below. If a module is used
that does not meet the specifications, there are cases in which data may become unus-
able or the computer may not operate properly.
RAM module specifications
144 pins, µ DIMM, PC100 Compliant
Only a RAM module designed
for PC100 can be added.
NOTE
Whether the RAM module is properly recognized or not can be confirmed
in [Main] of the Setup Utility. (
recognized, power off the computer and insert it again.

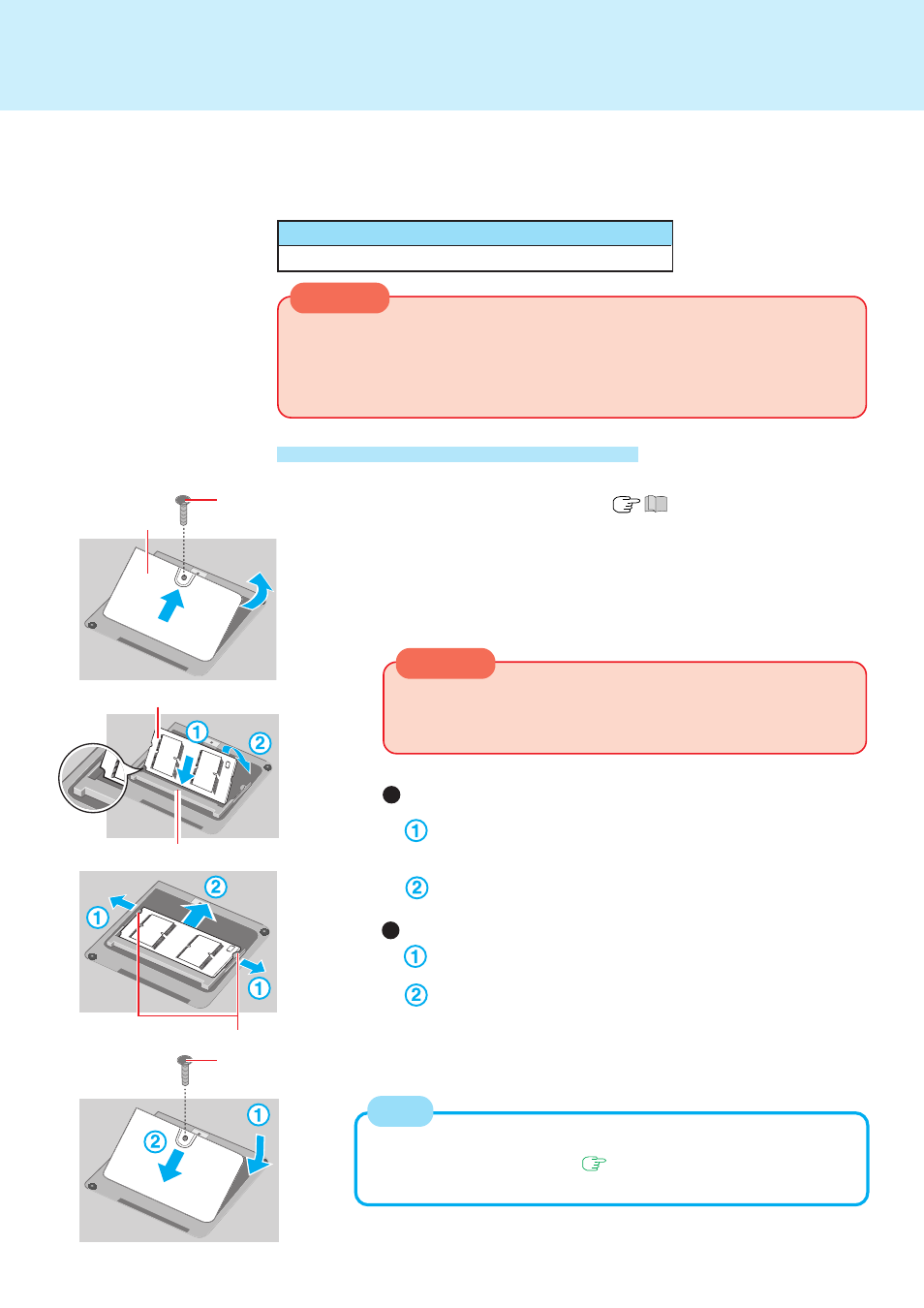

RAM Module
Cover
Screw
Hooks
RAM Module Slot
RAM module
Screw
