Chapter 6

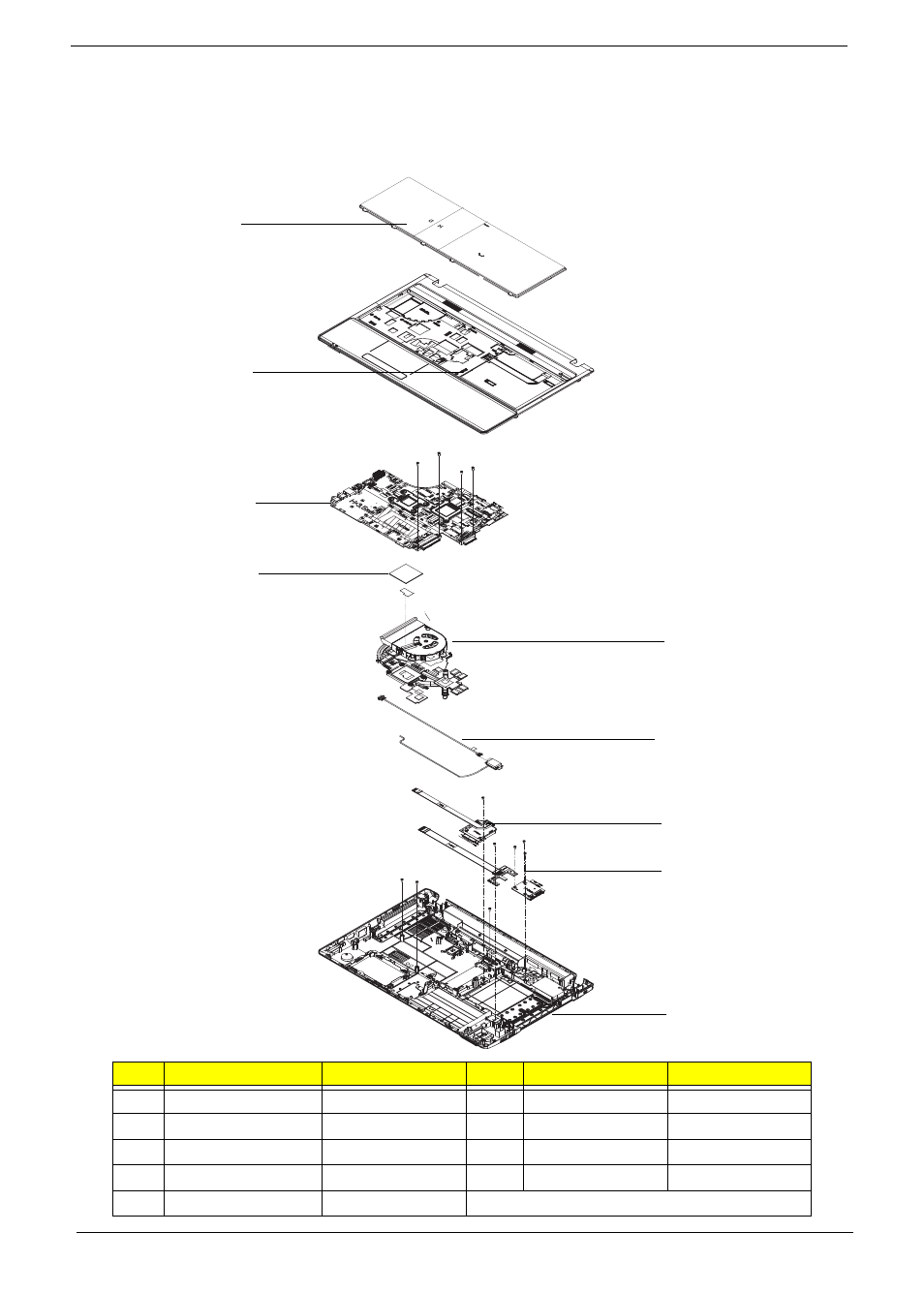

EasyNote Exploded Diagrams
Main Assembly
No.
Description
Acer P/N
No.
Description
Acer P/N
1
Keyboard
KB.I170G.083
6
3G Module
TBD
2
Upper Cover
60.WJ802.001
7
Card Reader
55.WJ802.002
3
Mainboard
MB.WJU02.001
8
USB Board
55.WJ802.003
4
CPU
KC.52001.DMP
9
Lower Cover
60.WJ802.002
5
Thermal Module
60.WJ802.006
1
2
3
4
5
6
7
8
9
