Chapter 5

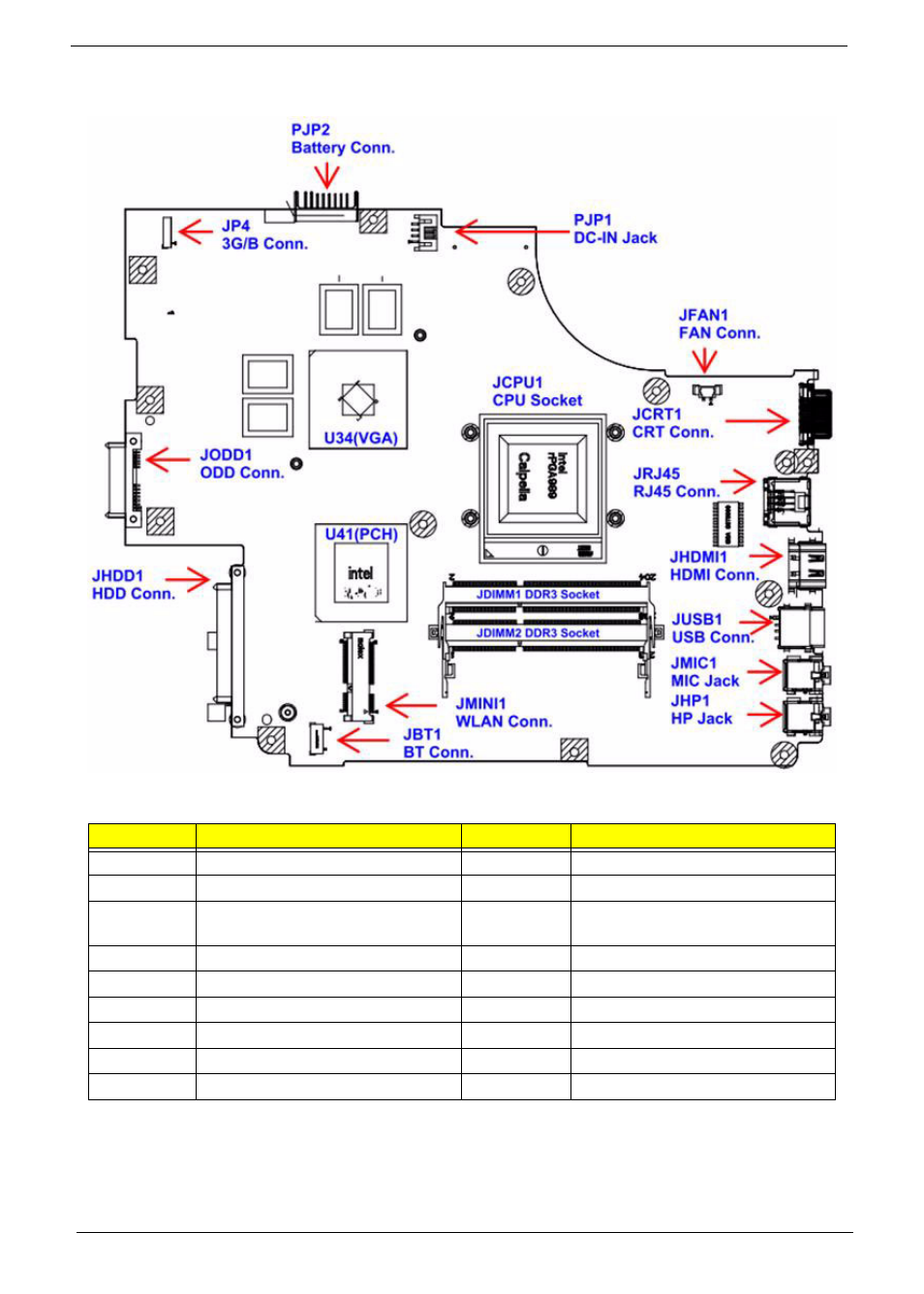

Bottom View
Item
Description
Item
Description
PJP2
Connect to Battery
JHP1
Connect to external headphone
PJP1
DC-IN jack
JBT1
Connect to BT
JDIMM1/
JDIMM2
DDR3 memory socket
JHDD1
Connect to SATAHDD
JCRT1
Connect to external CRT
JODD1
Connect to SATAODD
JRJ45
RJ45 LAN
JP4
Connect to 3G board
JHDMI1
HDMI connector
JFAN1
Connect to FAN
JMINI1
Connect to WLAN
JCPU1
CPU socket
JUSB1
USB connector
U41
PCH
JMIC1
Connect to external microphone
