Chapter 3
Replacing the Microphone Cable

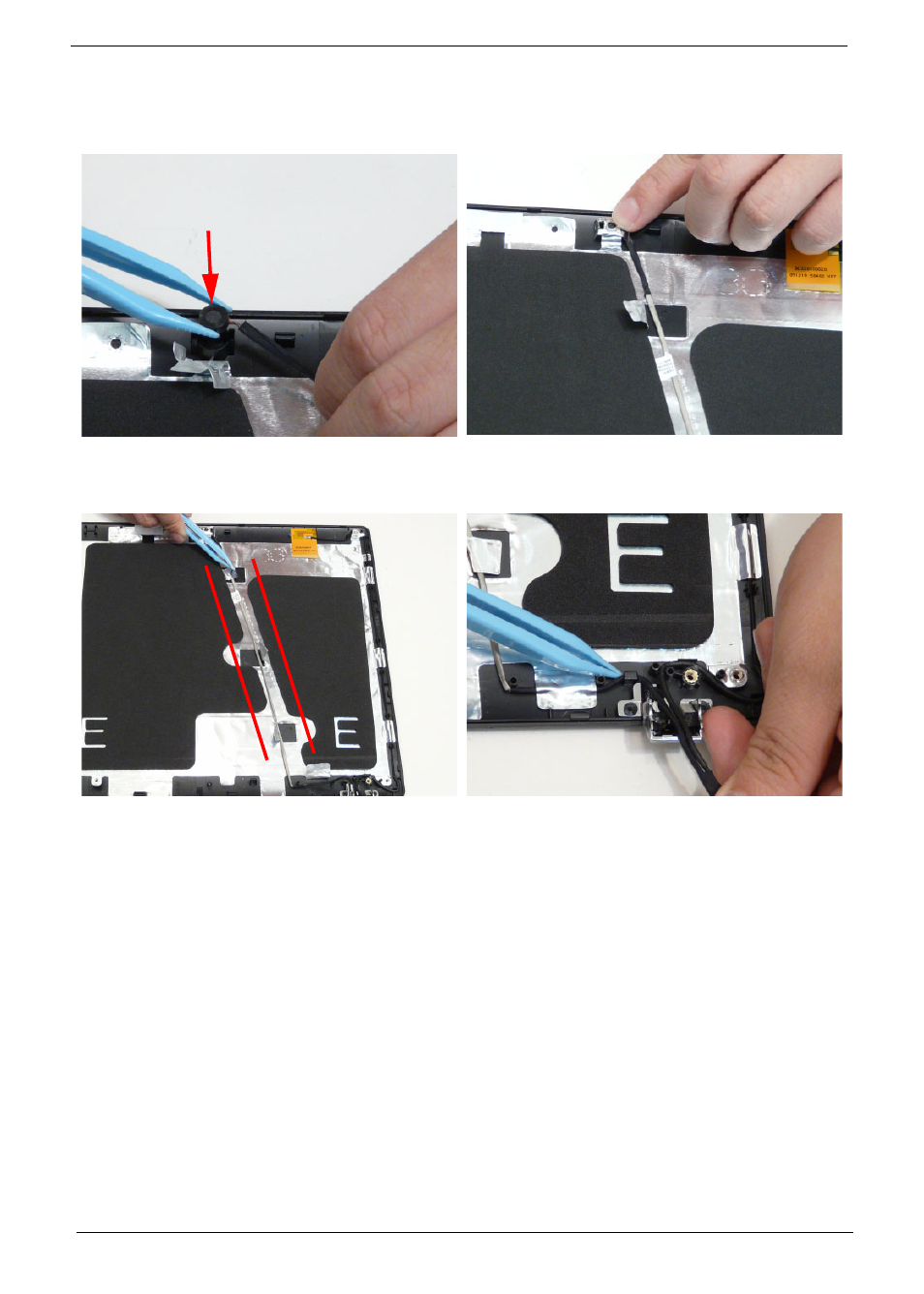

1. Place the microphone set in the panel.
2. Fold the foil tab over to secure.
3. Fold over the foil tabs and continue running the
microphone cable along the cable channel
indicated between the red callouts.
4. Run the cable bundle along the hinge channel.
IMPORTANT: Ensure that the LCD cable runs between the callouts to avoid trapping when the panel is replaced
in the LCD Module.
