1. Configure IP address 39
SmartNode 4900 User Manual 4 • Getting started with the SmartNode 4900 Series
Connect to the RS-232 console port
The RJ-45 Console port is wired as an EIA-561, RS-232 port. Use the included Model 16F-561 adapter and
cable (see
figure 17 ) between the SmartNode’s Console port and a PC or workstation’s RS-232 serial interface.
Activate the terminal emulation program on the PC or workstation that supports the serial interface
(e.g. HyperTerm).

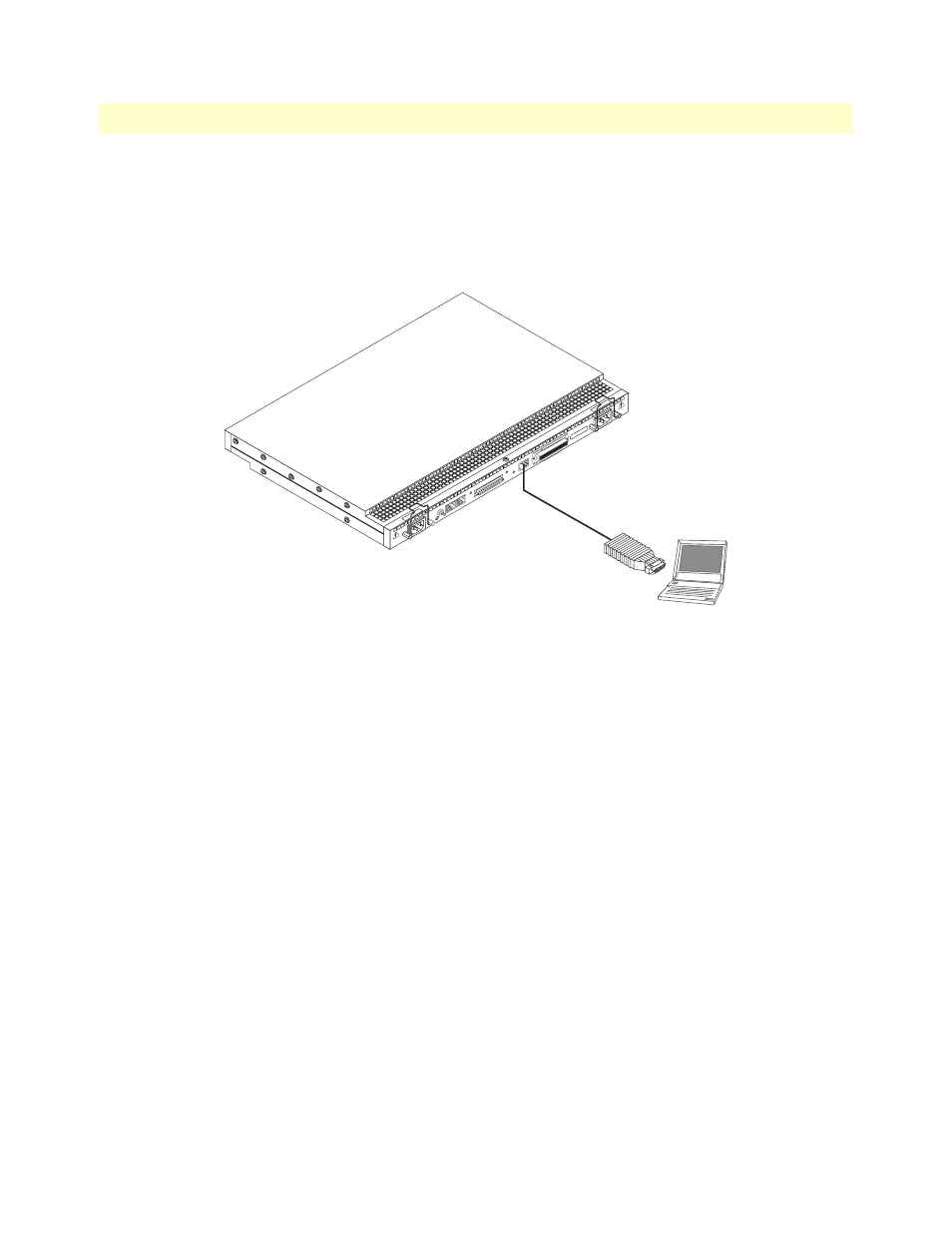

Figure 17. Connecting to the RS-232 Console port
Terminal emulation program settings:
• Asynchronous
• 9600 bps
• No parity
• 8 bit
• 1 stop bit
• No flow control
