Installing the IpChannel Bank 31
SmartNode 4900 User Manual 3 • Hardware installation
Connecting a 10/100Base-T Ethernet port to an Ethernet-capable workstation. The 10/100Base-T Ether-
net ports can connect to a single Ethernet-capable workstation or PC by means of any Ethernet cable.
Connecting the EIA-561 RS-232 configuration port (DCE configured)
Install the supplied RJ-45-to-RJ-45 cable with the DB9-RJ45 adapter between the SN4900 IpChannel Bank
RS-232 console port (
figure 10 ) and an open serial port on your computer. If you need to assemble your own
cable, refer to the pinout diagram in figure 10 .

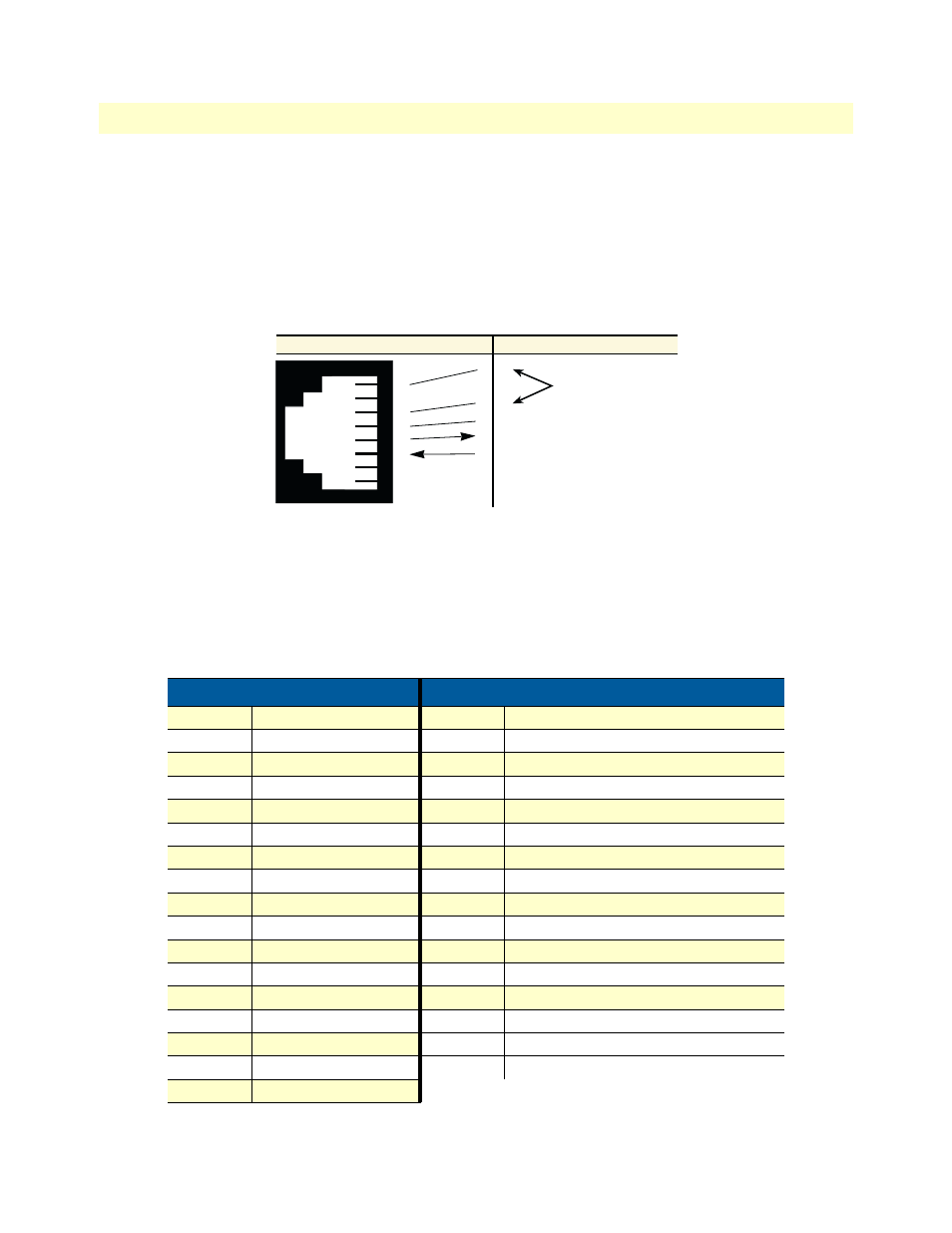

Figure 10. DB-9-to-RJ-45 cable diagram
Connecting the serial port
Serial devices (V.35 or X.21) are connected to the SmartNode’s serial ports (see
table 8 ) via a cable terminated
at the SmartNode 4900. The V.35 connector is a DB-25 female and the X.21 uses a DB-15 female. The sync
serial ports are configured as DTE.
Table 8. Serial port pin-outs
V.35 Interface (DB-25) X.21 interface (DB-15)
Pin Description Pin Description
1 Frame Ground 1 Signal Ground
2 TD-a (to DCE) 2 Transmit (to DCE)
3 RD-a (from DCE) 3 Control (to DCE)
4 RTS (to DCE) 4 Receive (from DCE)
5 CTS (from DCE) 5 Indication (from DCE)
6 DSR (from DCE) 6 Signal Element Timing (from DCE)
7 Signal Ground 8 DTE Common Return
8 CD (from DCE) 9 Transmit (to DCE)
9 RC-b (from DCE) 10 Control (to DCE)
11 XTC-b (to DCE) 11 Receive (from DCE)
12 TC-b (from DCE) 12 Indication (from DCE)
14 TD-b (to DCE) 13 Signal Element Timing (from DCE)
15 TC-a (from DCE)
16 RD-b (from DCE)
17 RC-a (from DCE)
20 DTR (to DCE)
6 DSR
1 CD
4 DTR
5 SG
2 RD (driven)
3 TD (received)
8 CTS
7 RTS
1
2
3
4
5
6
7
8
DSR & DTR are internally
wired together
RJ-45 Jack Signal Name DB-9
