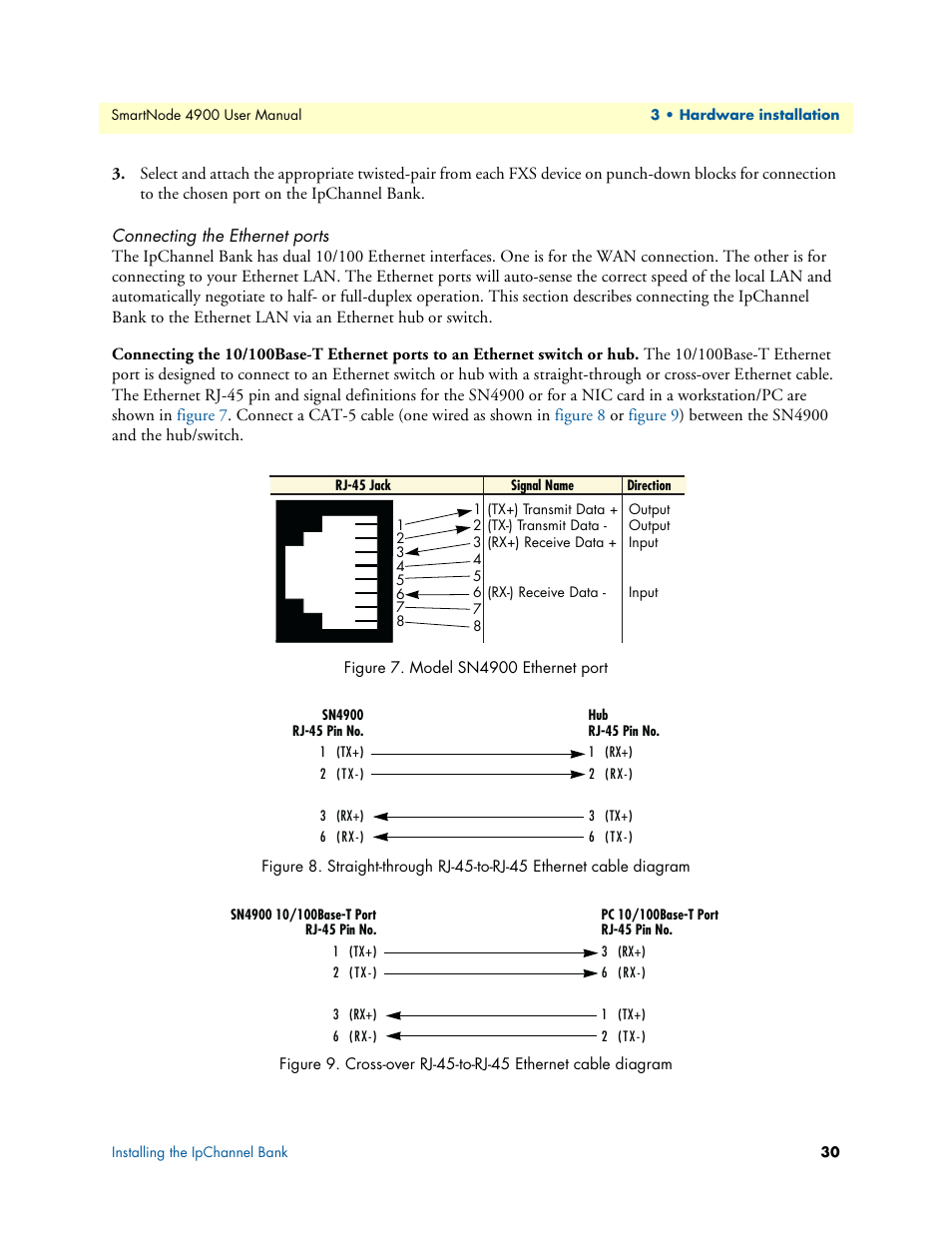

Connecting the ethernet ports, Model sn4900 ethernet port, Cross-over rj-45-to-rj-45 ethernet cable diagram – Patton electronic SMARTNODE 4900 User Manual
