TEST AND MEASUREMENT
Issue 1 Section 6 MCUK991001C8
Revision 0 – 44 – Service Manual
10. At the Channel box press F6 to program data.

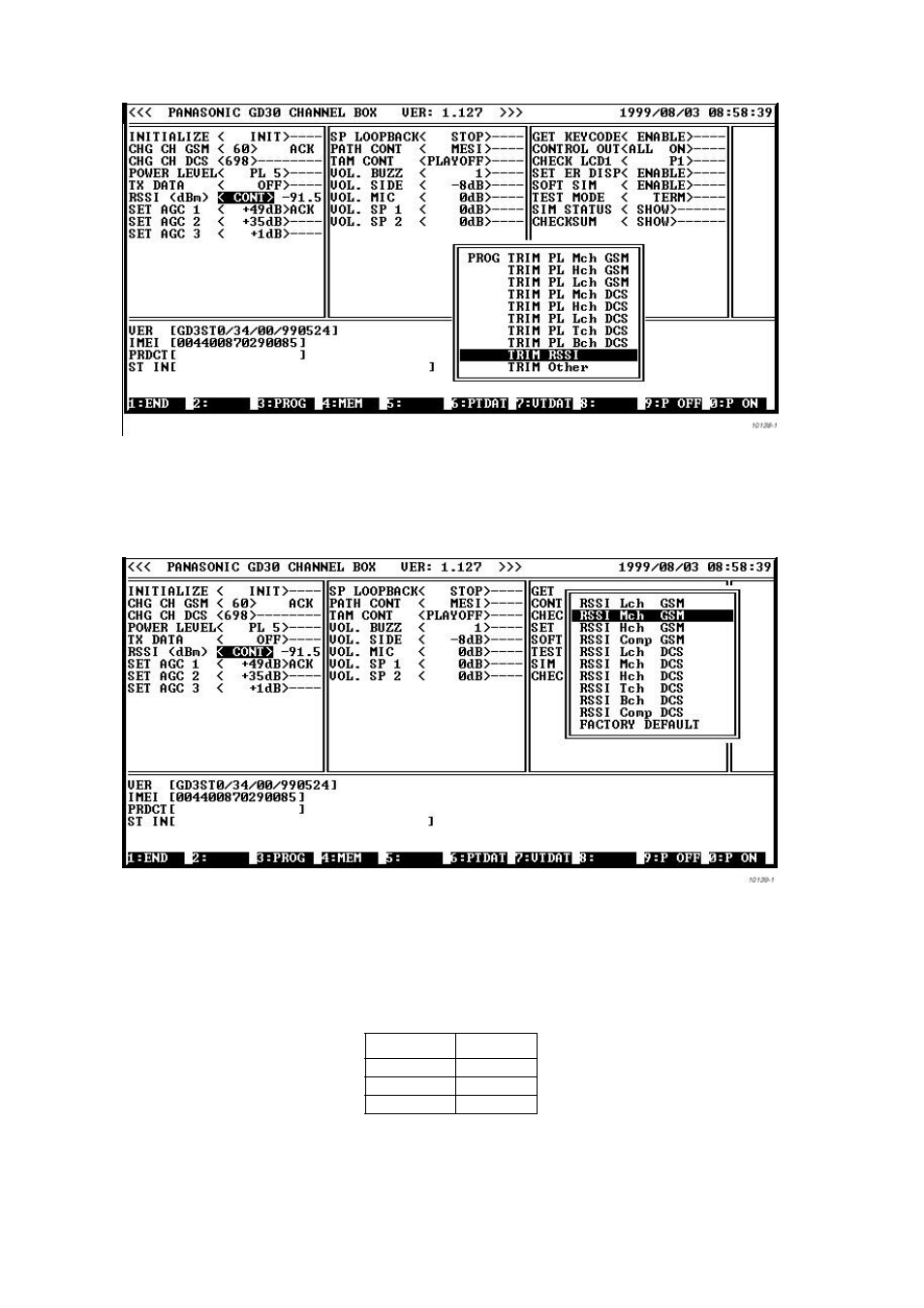

Figure 6.23: RSSI reading 3
11. Select TRIM RSSI and press ENTER.
12. Make the following calculation:
RSSI offset value (from step 8) + reading noted in step 6. Enter the result into RSSI COMP field for example: 10+ 5 = 15
.
Figure 6.24: RSSI reading 4
13. Press ENTER.
14. Press ESC.
15. Measure the RSSI level again by highlighting the RSSI dBm field and press ENTER.
16. Repeat steps 6 to 15 for both LOW/BOTTOM and HIGH/TOP channels.
Channel GSM 900
Low/Bottom 37
Comp 67
High/Top 95
