6. RF Adaptor
Part Number: JT00009
This unit provides an RF connection between the Unit Under Test and external test equipment. It has a lug on the back to
allow both Adaptor and Unit Under Test to be suspended from a suitable rack or channel bracket, if required.

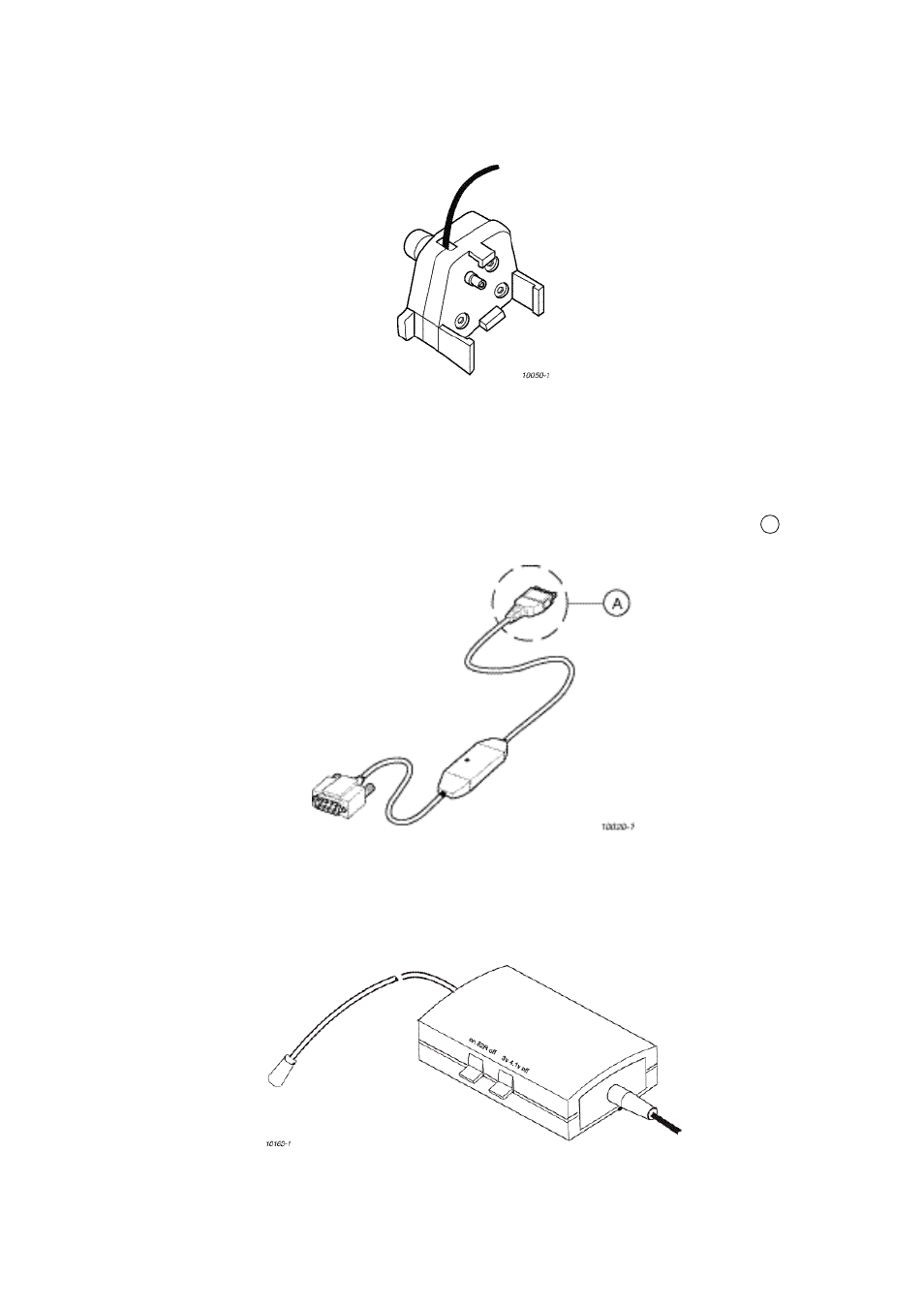

Figure 6.4: RF Adaptor
7. GSM Tester
This unit acts as a base station providing all the necessary GSM signalling requirements and also provides GSM signal
measuring facilities.
8. Interface Cable
Part Number: JT00004
The interface cable allows connection between a computer and the Unit Under Test via IFB003. Connector is available
separately, if required, under part number DHS31-P18S-HL-BD.
Figure 6.5: Interface Cable
9. Battery Calibration Voltage Control Unit (BCVCU)
Part Number: JT00010
This unit provides three voltage levels (3 V, 4.1 V and 0 V) to the Test Battery, and is used during battery calibration checks.
It is powered from the Interface Box. .
Figure 6.6: Battery Calibration Voltage Control Unit (BCVCU)
