Panasonic EB-GD30 User Manual
Page 36
TEST AND MEASUREMENT
Issue 1
Section 6
MCUK991001C8
Revision 0
– 30 –
Service Manual
3.
Power Supply
Provides 12 V DC supply to Interface Box IFB003 or IFB004.
4.
Test Battery
Part Number: JT00022
Provides 3.6 V DC supply to Interface Box IFB003 or IFB004 to compensate for the current drain when the Unit Under Test
is used at full transmit power.

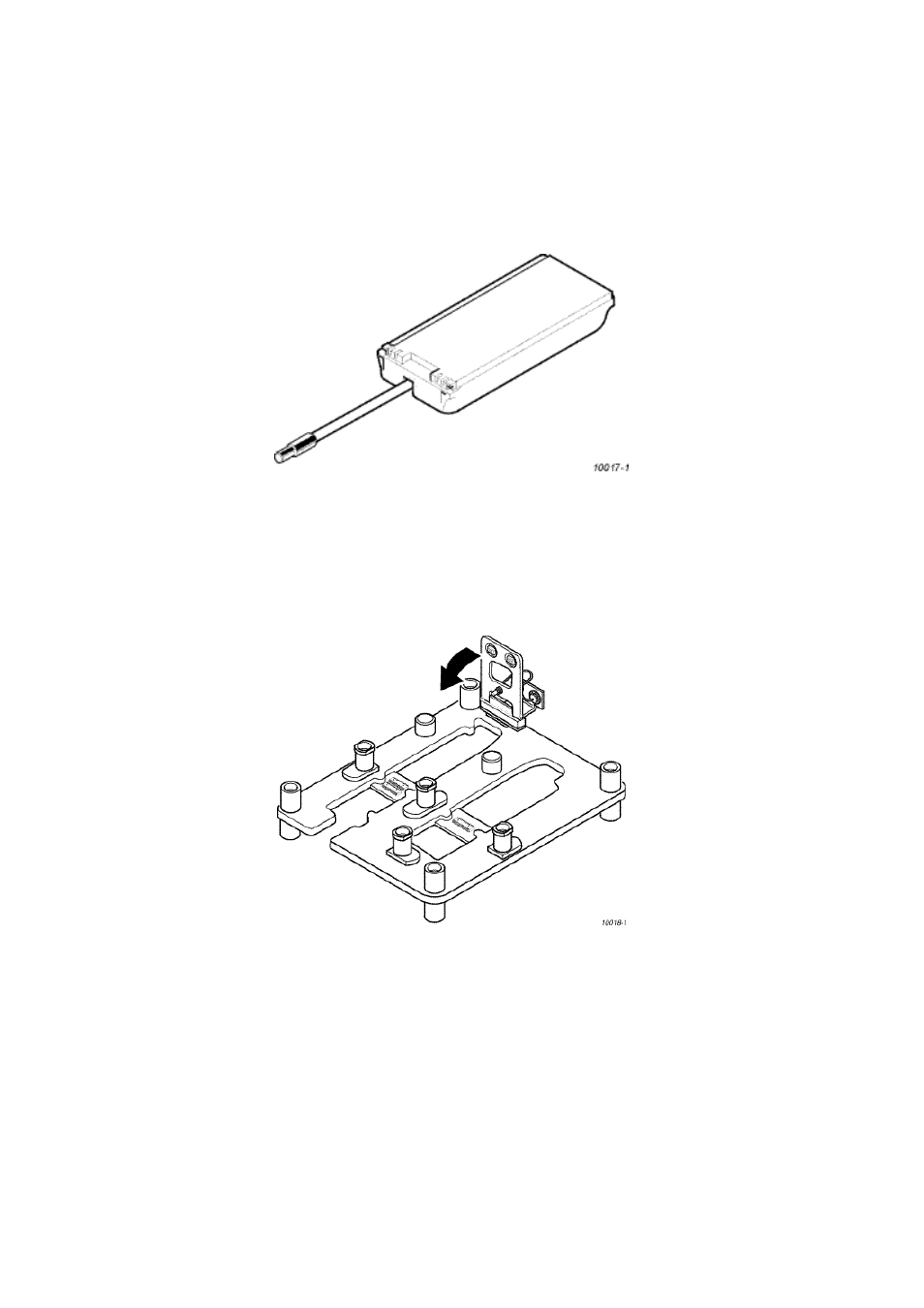

Figure 6.2: Test Battery
5.
PCB Repair Jig
Part Number: JT00011
This unit provides the necessary connections between the Main and Key PCBs, and the connections between Main PCB
and external test equipment.
Figure 6.3: PCB Repair Jig
