EN - 10
English
10 Hookups (cont’d)

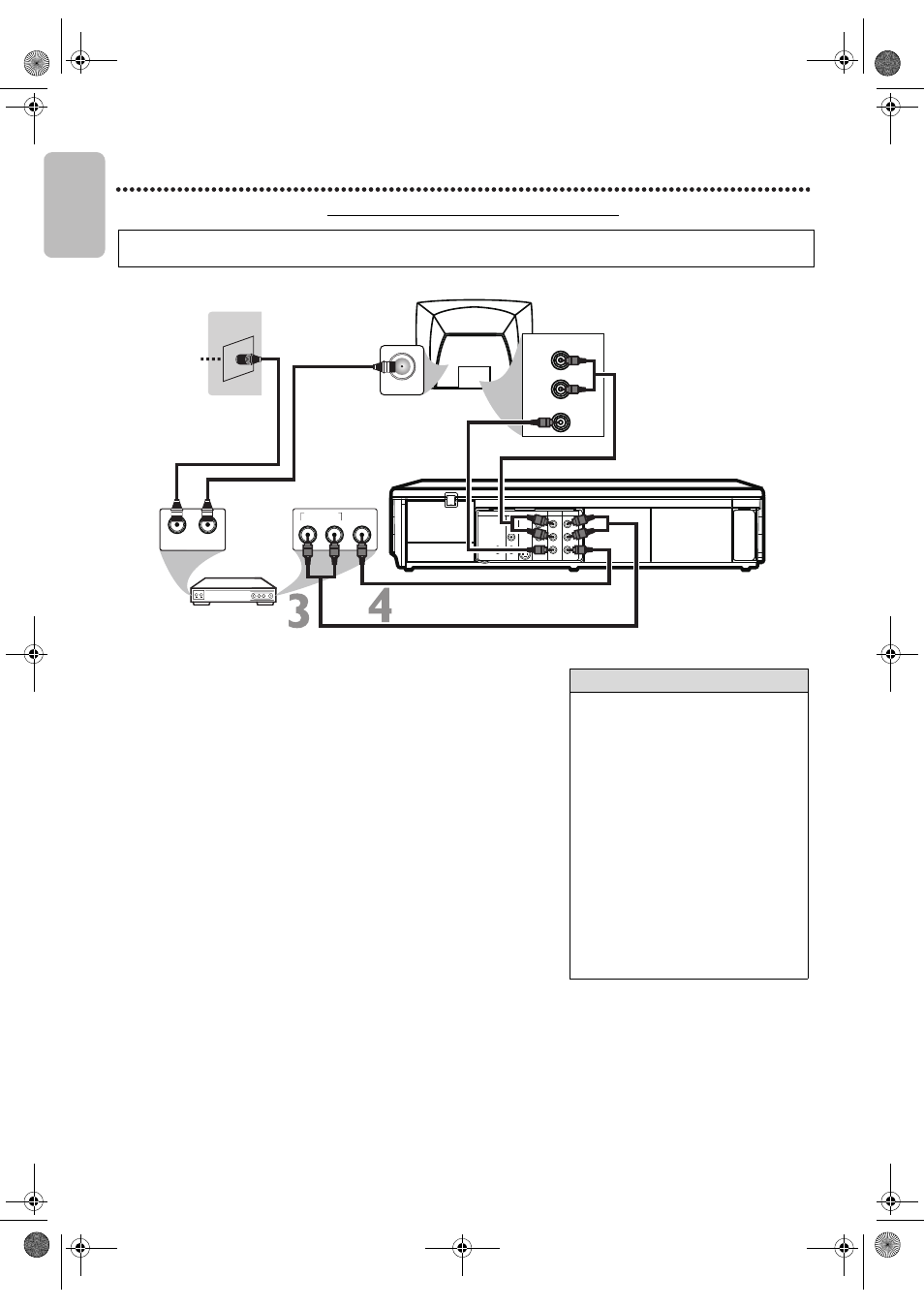

DVD / VCR to An External Tuner
e.g.)
Connections
●
You can record any unscrambled channel by selecting the channel on the
external tuner. Be sure that the external tuner is turned on.
●
Signal from the external tuner can be output only on CVBS output even
when the power of the DVD/VCR is off.
●
You cannot record one channel while watching another channel.
This DVD / VCR does not have a tuner input jack. To record TV programs on your DVD / VCR, you need to connect this
DVD / VCR to an external tuner device (e.g., set top box, cable box or satellite receiver) that has audio / video output jacks.
1
Connect a TV signal to the IN jack on the external tuner.
2
Use an RF coaxial cable (not supplied) to connect the Out jack
on the external tuner to the ANT. IN jack on the TV.
3
Connect the red and white audio cable (supplied) to the red
and white AUDIO OUT jacks on the external tuner and to the
red and white VCR AUDIO IN jacks on the DVD/VCR.
4
Connect the yellow video cable (supplied) to the yellow VIDEO
OUT jack on the external tuner and to the VCR VIDEO IN jack
on the DVD/VCR.
5
Connect another red and white audio cable (not supplied) to
the red and white DVD/VCR AUDIO OUT jacks on the DVD/
VCR and to the red and white Audio In jacks on the TV.
6
Connect another yellow video cable (not supplied) to the DVD/
VCR VIDEO OUT jack on the DVD/VCR and to the Video In
jack on the TV.
7
Connect the power cords of the TV and the DVD/VCR to a
power outlet. Turn on the TV and set it to the correct Video In
channel.
8
You are ready to turn on the DVD/VCR. Go to page 15 to
complete the first-time setup.
DIGITAL
AUDIO OUT
COAXIAL
AUDIO
OUT
DVD
L
R
L
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B
/
P
B
AUDIO OUT
DVD/VCR VCR
VIDEO OUT
AUDIO IN
VIDEO IN
C
R
/
P
R
AUDIO IN
VIDEO IN
L
R
ANT. IN
AUDIO OUT
L
R
VIDEO
OUT
OUT
IN
1
2
6
5
TV Signal
RF coaxial cable
(not supplied)
Back of TV
Audio Cable
(not supplied)
Video Cable
(not supplied)
External tuner
Video Cable (supplied)
Audio Cable (supplied)
DVD / VCR
RF coaxial cable
(not supplied)
Helpful Hint
• If your TV has antenna in jack only,it is
still possible to connect this unit to
your TV by using a commercially
available stereo audio/video RF
modulator. Refer to the manual
accompanying the modulator for more
information.
• Required cables and connecting
methods differ depending on the
external tuner. For more information,
please contact your external tuner
provider.
• Instead of using video out jack of this
DVD/VCR, you can also use S-video
out jack or component video output
jack for connecting to your TV.
• Refer to the manual accompanying
external devices for more information.
