S TEP 3 - WAN
S ETTINGS - L2TP
Enables the Layer 2 Tunneling Protocol (L2TP) for implementing virtual
private networks. The service is provided in many European countries.

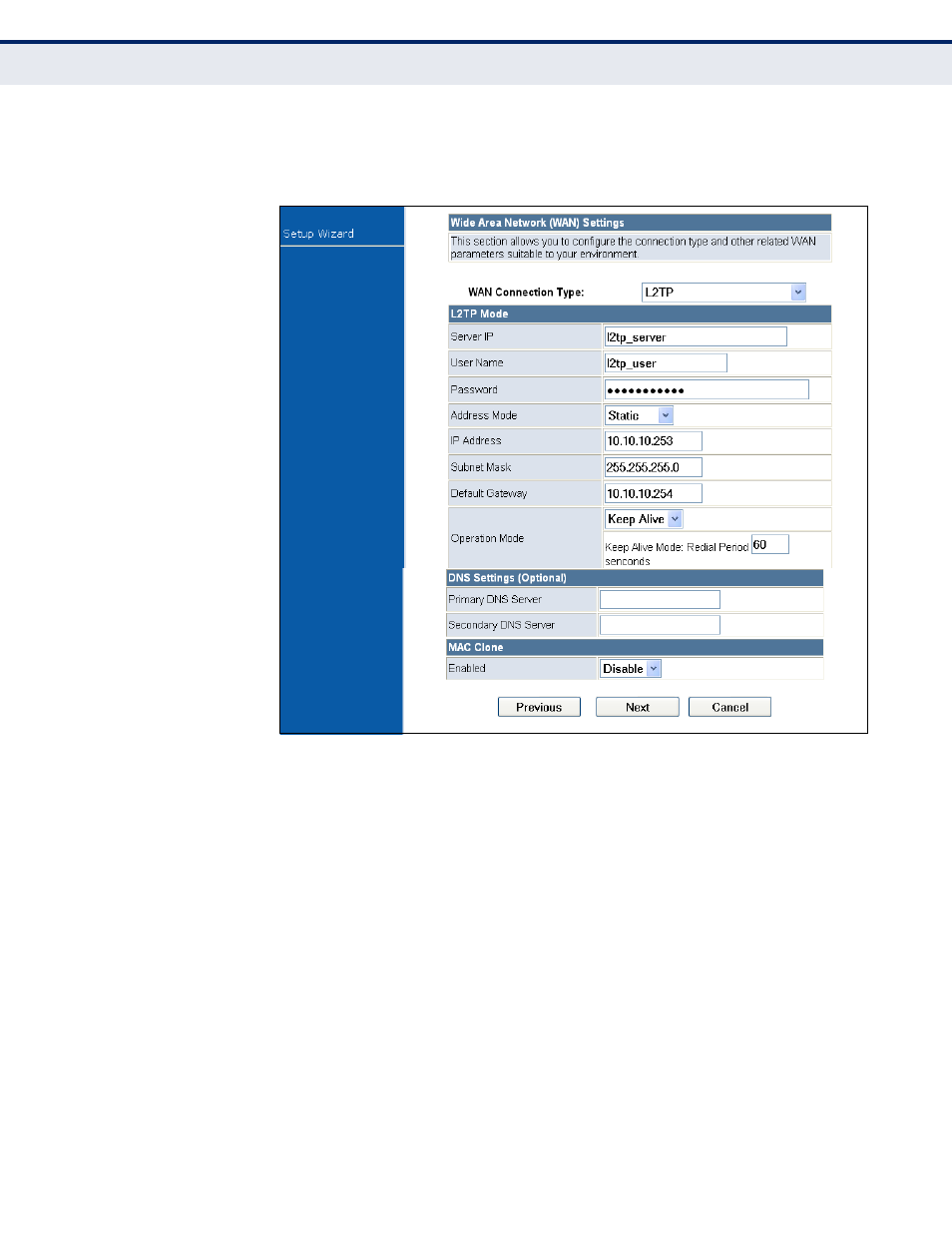

Figure 19: Wizard Step 3 - WAN Settings - L2TP
The following items are displayed on this page:
◆ Server IP — Sets the L2TP server IP Address. (Default: l2tp_server)
◆ User Name — Sets the L2TP user name for the WAN port.
(Default: l2tp_user; Range: 1~32 characters)
◆ Password — Sets a L2TP password for the WAN port. (Default:
l2tp_password; Range: 1~32 characters)
◆ Verify Password — Prompts you to re-enter your chosen password.
◆ Address Mode — Sets a L2TP network mode. (Default: Static)
◆ IP Address — Sets the static IP address. (Default: 0.0.0.0, available
when L2TP Network Mode is set to static IP.)
◆ Subnet Mask — Sets the static IP subnet mask. (Default:
255.255.255.0, available when L2TP Network Mode is set to static IP.)
– 40 –
C HAPTER 4 | Initial Configuration
Setup Wizard
