M OUNTING THE D EVICE
The Wireless Router can be mounted on any horizontal surface, or on a
wall. The following sections describe the mounting options.
M OUNTING ON A W ALL
The Wireless Router should be mounted only to a wall or wood surface that
is at least 1/2-inch plywood or its equivalent. To mount the unit on a wall,
always use its wall-mounting slots. The unit must be mounted with the RJ-
45 cable connector oriented upwards to ensure proper operation.

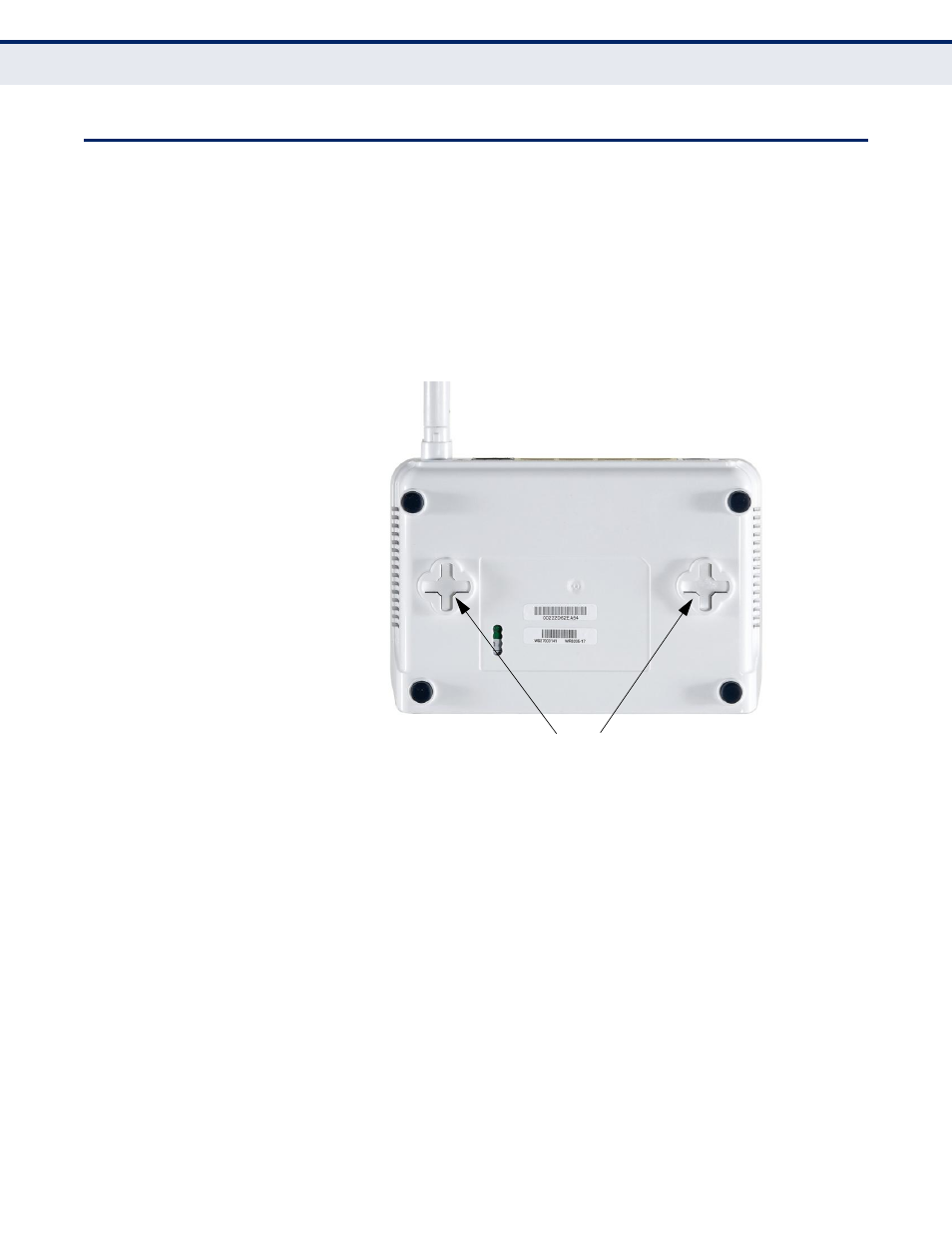

Figure 8: Wall Mounting
Mounting Slots
To mount on a wall, follow the instructions below.
1. Mark the position of the two screw holes on the wall. For concrete or
brick walls, you will need to drill holes and insert wall plugs for the
screws.
2.
Insert two 20-mm M4 tap screws (not included) into the holes, leaving
about 2~3 mm (0.08~0.12 inches) clearance from the wall.
3. Line up the two mounting points on the unit with the screws in the wall,
then slide the unit down onto the screws until it is in a secured position.
– 27 –
C HAPTER 3 | Installing the Wireless Router
Mounting the Device
