UPS Web management by Liebert IS-WEBRT3 Card
9

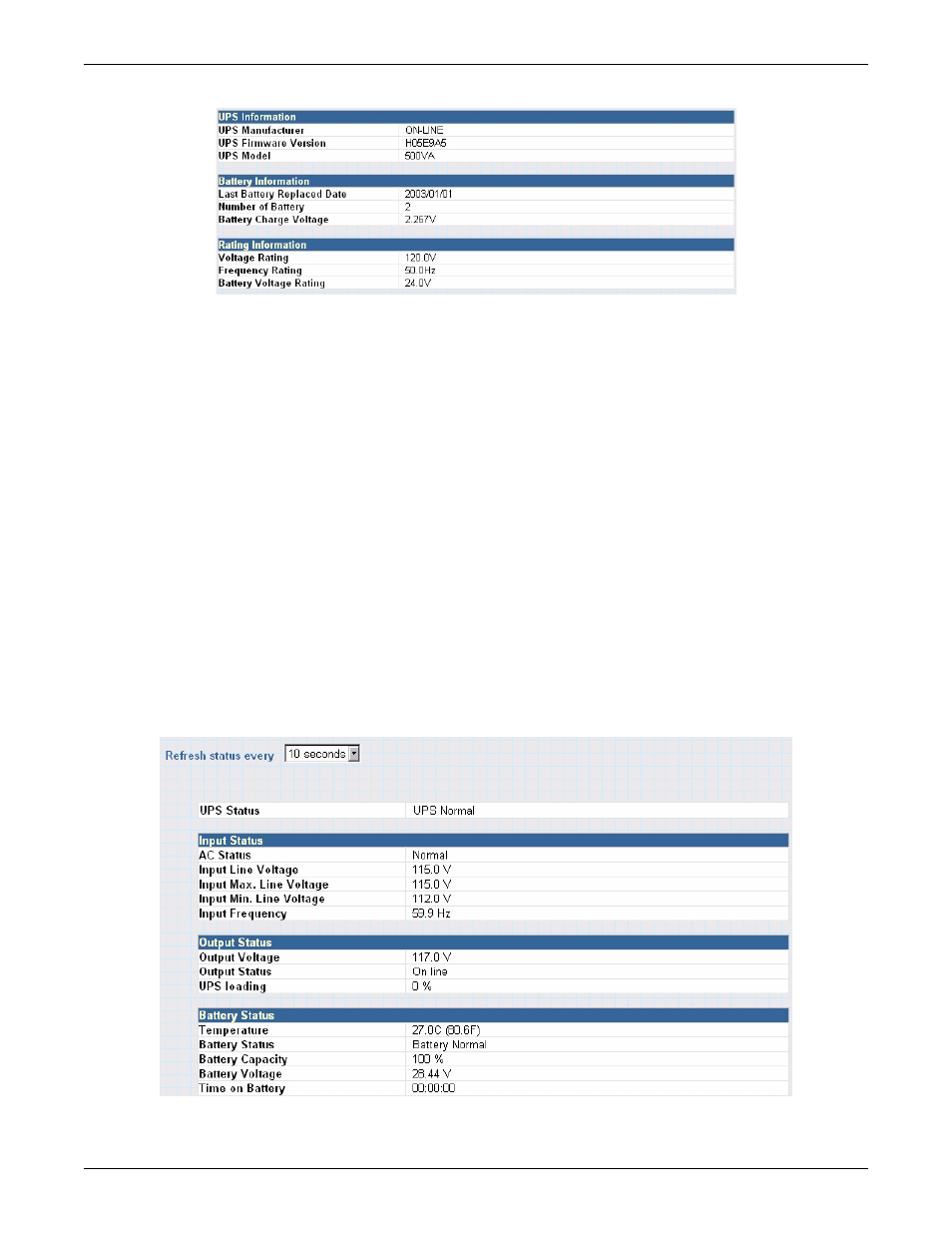

Figure 11
Basic information
5.2.3
Current Status
This page shows the UPS current status. Users can choose an interval from the drop-down box to
refresh the status readings.
UPS Status
This section shows the UPS power status. The abnormal status will be displayed in red when there is
a power event.
Input Status
This section shows the UPS input status, including AC Status/Input Voltage/Input Frequency. Values
here will be shown in red when an abnormal status condition occurs.
Output Status
This section shows the UPS output status, including Output Voltage/Output Status/UPS Loading.
Values here will be shown in red when an abnormal status condition occurs.
Battery Status
This section shows the UPS Battery Status, including Temperature/Battery Status/Battery Capac-
ity/Battery Voltage/Time on Battery. Values here will be shown in red when an abnormal status con-
dition occurs.
Figure 12
Current status
