Linksys RV016 - Manual (Page 82)

71 Chapter 6: Setting up and Configuring the Router
Log Tab - System Statistics
10/100 16-Port VPN Router
Log Tab - System Statistics
This screen displays statistics about all of the Router’s ports (LAN, DMZ, and all WAN ports). For each port, the
following statistics are listed: Device Name, Status, IP Address, MAC Address, Subnet Mask, Default Gateway,
number of Received Packets, number of Sent Packets, number of Total Packets, number of Received Bytes,
number of Sent Bytes, number of Total Bytes, number of Error Packets Received, and number of Dropped Packets
Received.
When there are more than two WAN ports, click Next page to see additional system statistics on the next page.
Then click Previous page to see the system statistics on the previous page.
Click the Refresh button to update the statistics.

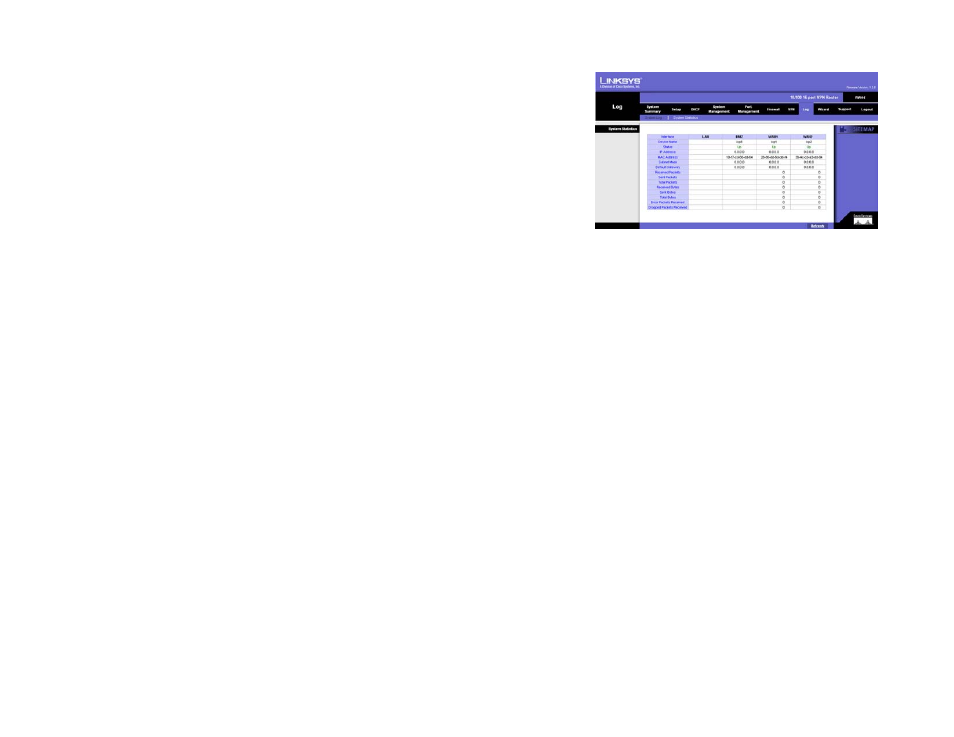

Figure 6-97: System Statistics
