15 Chapter 5: Configuring the PCs
Configuring Windows XP PCs
10/100 16-Port VPN Router
3. Select Internet Protocol (TCP/IP), and click the Properties button. See Figure 5-5.
4. Select Obtain an IP address automatically (see Figure 5-6). Once the new window appears, click the OK
button. Click the OK button again (or the Close button if any settings were changed) to complete the PC
configuration.
5. Restart your computer.
Go to “Chapter 6: Setting up and Configuring the Router.”

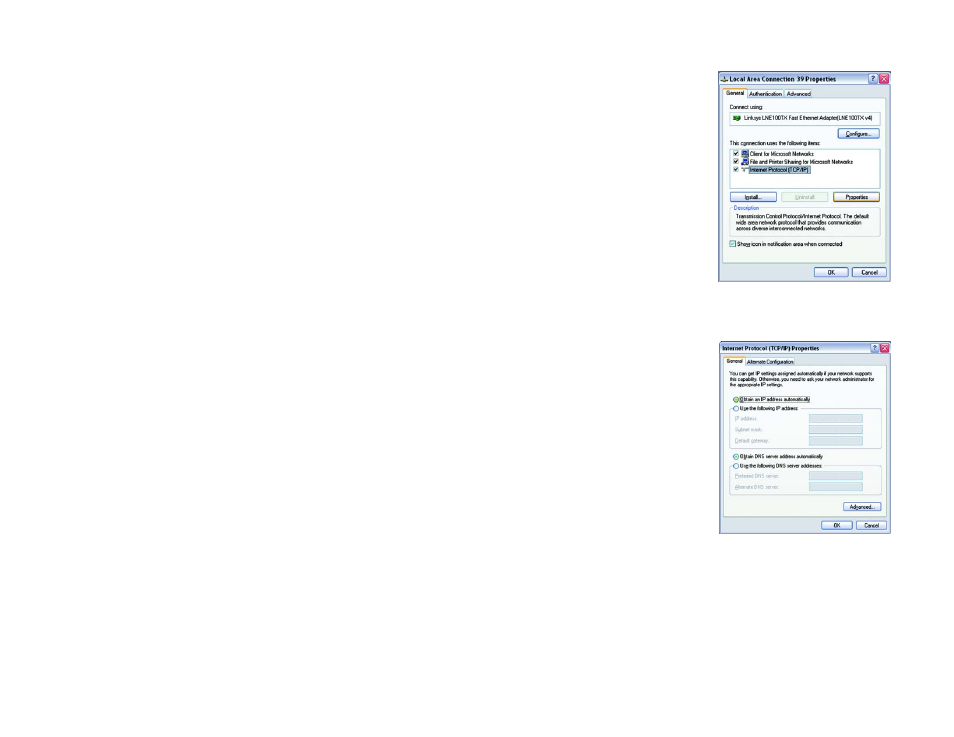

Figure 5-5: Internet Protocol
(TCP/IP) for Windows XP
Figure 5-6: Obtain an IP address
automatically for Windows XP
