45 Chapter 6: Setting up and Configuring the Router
Port Management Tab - Port Status
10/100 16-Port VPN Router
Port Management Tab - Port Status
To see the status information and settings for a specific port, select its ID number or name from the Port ID
drop-down menu.
For the selected port, the Summary table will show these settings: Type, Interface, Link Status, Port Activity,
Priority, Speed Status, Duplex Status, and Auto negotiation.
For the selected port, the Statistics table will show these statistics: number of packets received, number of
packet bytes received, number of packets transmitted, number of packet bytes transmitted, and number of
packet errors.
Click the Refresh button to retrieve the most recent settings and statistics.

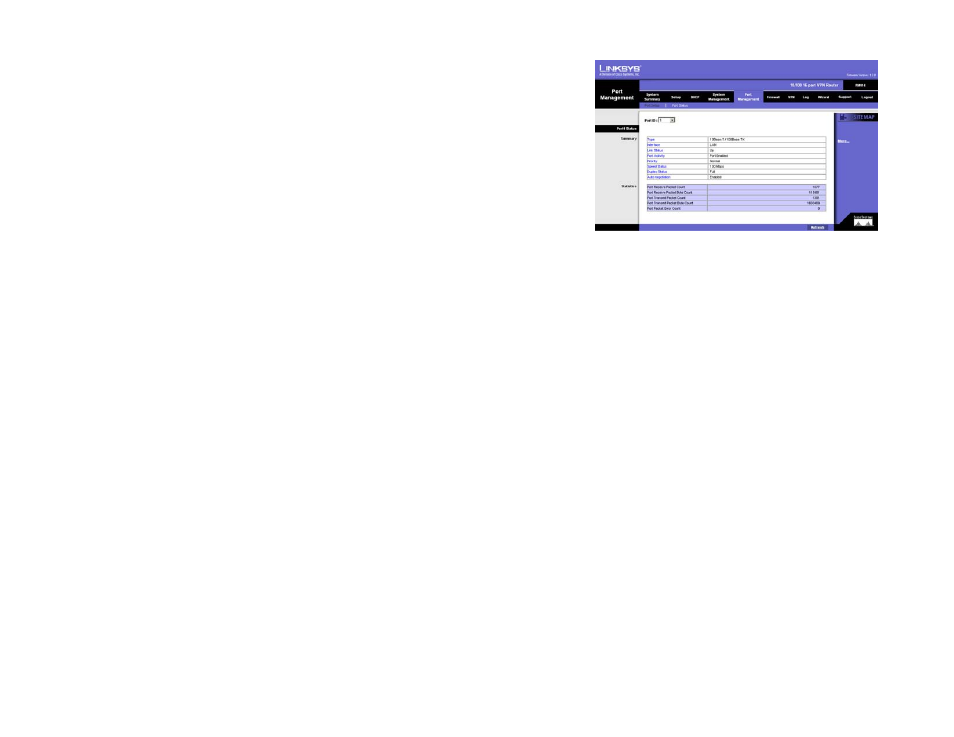

Figure 6-42: Port Status
