102 Appendix D: Physical Setup of the Router
Setting up the Router
10/100 16-Port VPN Router
Wall-Mounting the Router
The Router is shown in Figure D-3 with two holes on the bottom. The horizontal distance between the two holes
is 3.701 inches (94 mm). Install two screws or nails into the wall, 3.701 inches (94 mm) apart. After the screws or
nails are secured on the wall, line up the Router’s holes with the screws or nails, and mount the Router on the
wall. The wall-mount holes are shown below, in Figure D-3. The suggested mounting hardware is shown in
Figure D-4.

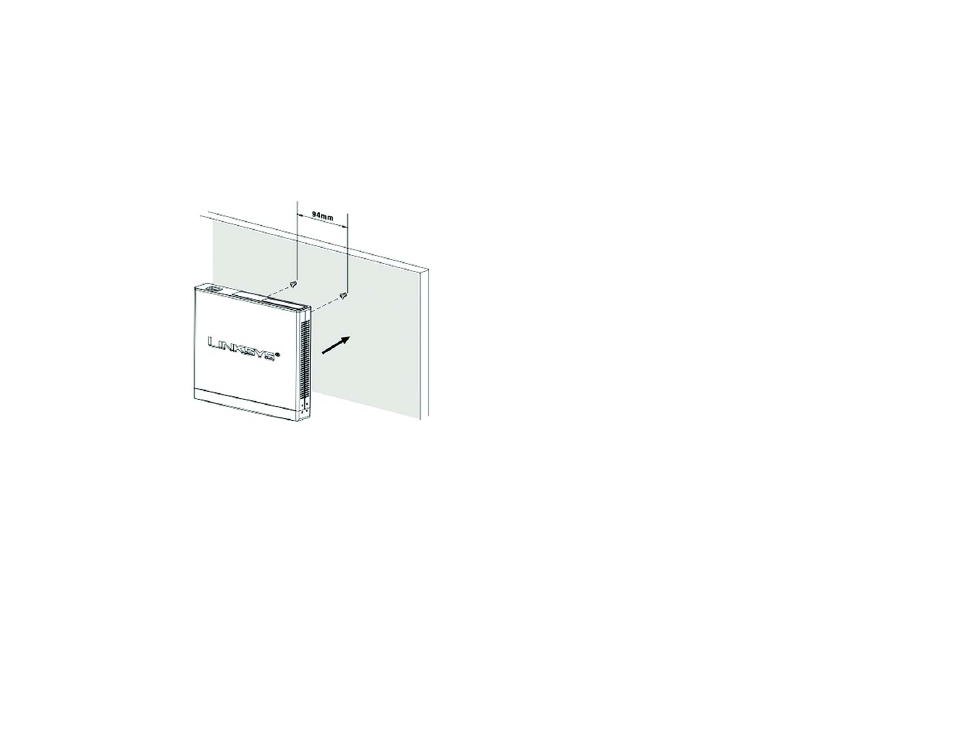

Figure D-3: Wall-Mounting the Router
