101 Appendix D: Physical Setup of the Router
Setting up the Router
10/100 16-Port VPN Router
Line up the bracket holes with the holes located on the Router’s sides. Attach the mounting brackets using the
included screws, four on each side of the Router.
When the brackets are attached to the Router, you can rack-mount it. Attach the Router to the rack, using two
screws on each side of the Router, as shown below in Figure D-2.

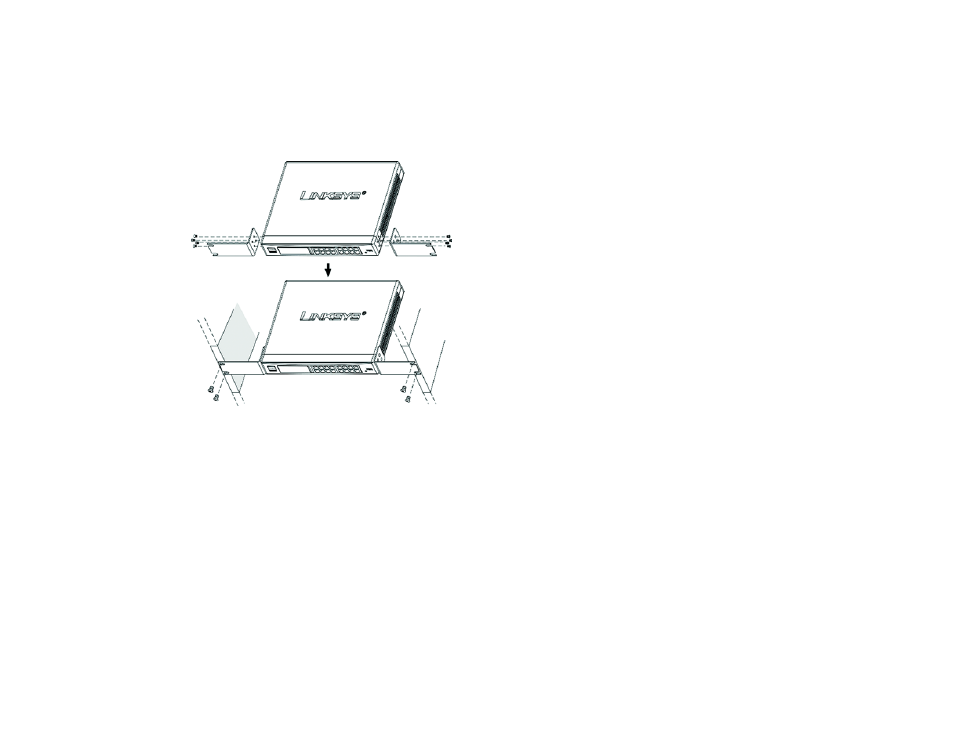

Figure D-2: Attaching the Brackets to the Router and Rack-Mounting the Router
